VA-H Series Servo AC Drive

VA series is a high performance synchronous and asynchronous AC servo drive developed for permanent magnet synchronous AC motor and three-phase asynchronous motor. VA series support RS485 communication and EtherCAT bus, and combine with the upper computer to have multiple servo Drives controlled with networking and field bus system.

Features and benefits
  • Certification :

    CE, EAC, ISO9001, OHSAS18001, TS16949, SGS
  • Place of Origin :

    China
  • Shipping Port :

    Shenzhen
  • Package :

    Standard Export Package Carton/Wood
  • Availability :

    OEM/ODM, Minmum Order Request
  • Transportation :

    Express · Sea freight · Land freight · Air freight
  • Delivery Time :

    5-7 working days for standard series; 7-14 working days for customized AC drives
  • Warranty :

    18 Months
  • Customized :

    YES
  • Term of payment :

    T/T, L/C, D/P
  • Sample freight payer :

    Buyer
  • Sample provide :

    YES
Product Details

Product Overview

Item Description
Product Name Frequency Inverter/ AC Drive
Model Number VA-H-4TxxG
Power Range 3.7kW-160kW
Rated Input Voltage 3 phase 380V/480V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor, Synchronous Motor
Control Mode V/F Control, Vector Control, Sensorless Vector Control, Vector Torque Control, Sensor Vector Control
Communication Modbus 485 RTU, EtherCAT
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)

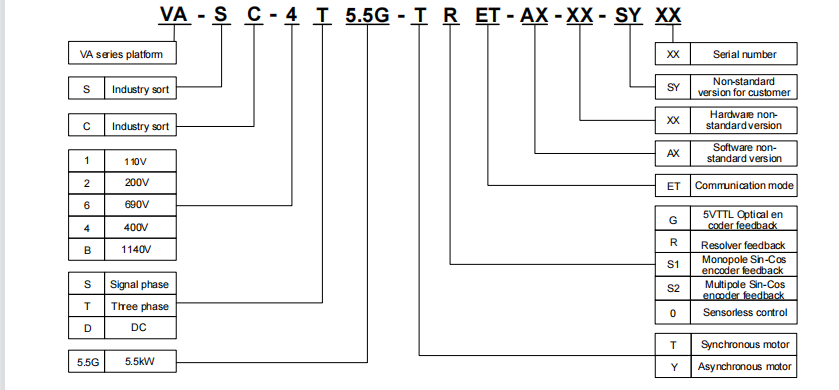

Model Explanation


Product Catalogue

VA−H−4TXXG

PowerkW 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132 160
Motor PowerkW 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132 160
Output Voltage(V) 3 phase 0Rated Voltage
Rated Current(A) 9 13 17 24 30 39 45 60 75 91 112 150 176 210 253 304
Max Current(A) 16 23 31 43 54 70 81 108 135 164 202 270 317 378 400 547
Overload capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag ;feature)
Input Voltage/ frequency 3 Phase 380V480V50Hz/60Hz
Allowable voltage range 323V~528V;Voltage imbalance :≤3% ;allowable frequency fluctuation:±5%
Rated Current(A) 10 15 19 26 33 43 50 66 83 100 123 165 160* 196* 232* 282*
Braking unit Built-in as standard Built-in as optional
IP IP20
Cooling mode Natural air cooling Forced air cooling

Technical Specification

Control Characteristics

Control mode

synchronous motor control without encoder ;/asynchronous motor control without encoder

synchronous motor control with an encoder/asynchronous motor control with an encoder

Startup torque

0.2% ;rated speed on motor180% ;rated torque

0 speed,180% rated torque

Range of speed regulation

1:200

1:1000

Precision of steady speed

± 0.5%

± 0.02%

Product Functions

Key functions

undervoltage regulation, speed tracking, torque limitation, multi-stage speed, motor self-learning, weak magnetic control, current limitation.

Designated speed mode

RS485, keyboard, terminal, analog quantity, multi-stage speed, simple PLC, PID, pulse frequency.

Braking capacity on Power Consumption

400V Drivebrake unit voltage650750V

Dual 485 communication ports

Dual 485 communication interface supports Modbus protocolRTU;standard operation panel meet remote control , up to 500 meters.

Common DC bus

The whole series meet common DC bus power supply for multiple drives.

Independent air duct

The whole series uses independent air duct design,and support radiator cabinet with installed outdoors

Protection Function

undervoltage, overcurrent protection, over-voltage protection, abnormal comparison level, self-learning to identify fault, protection of the module, radiator overheating protection, overload protection on Drive, overload protection on motor, peripheral protection, current detection, the output of a short circuit, abnormal operation of the power,abnormal input power, EEPROM anomaly, relay and abnormal disconnection, analog input, temperature sampling disconnection, encoder, an abnormal motor overheating (PTC), communications, hardware, overload protection.

Efficiency

Rated power: 7.5kW and lower power grade≥93%11kW to 15kW≥95%

Environment

Operating site

The product should be mounted vertically in the electric control cabinet with good ventilation.Horizontal or other installation modes are not allowed.it is air cooling

Ambient temperature

-10 to +40, the product must be de-rated output current for the ambient temperature between 40 ;to 50, the rated output current must be de-rated for 1% per 1 ;temperature rise

Humidity

595%no condensing

Altitude

02000m, the product must be de-rated rated output current for the altitude above 1000 meters, the rated output current must be de-rated for 1% per 100 meters rise

Vibration

3.5 m/s229Hz10 m/s29200Hz15 m/s2200500Hz

Storage temperature

−40+70






Installation Dimension

VA−H−4T7.5G and below power class


VA−H−4T11G and above power class


Voltage

Model

Appearance, Installation Dimensionsmm

weightkg

W

H

D

W1

H1

D1

T1

Hole d

400V

VAH4T3.7G

155

249

197.7

136

232

69

8

5.5

3.3

VAH4T5.5G

VAH4T7.5G

VAH4T11G

210

337

230

150

324

107.5

2.5

7

8.5

VAH4T15G

VAH4T18.5G

285

440

250

200

425

107.5

2.5

7

17

VAH4T22G

VAH4T30G

VA−H−4T37G

315

575

247

220

553

123.5

2.5

10

25

VA−H−4T45G

VA−H−4T55G

400

615

275

270

590

123.5

3.0

10

35

VA−H−4T75G

VA−H−4T90G

465

745

335

343

715

156

3.0

12

55

VA−H−4T110G

VA−H−4T132G

540

890

395

370

855

205.5

4.0

14

85

VA−H−4T160G


Applications











Representative Industry

Shenzhen V&T Technologies Co.,Ltd. AC servo drive is suitable for Grinder, High accuracy and speed application fields etc.
