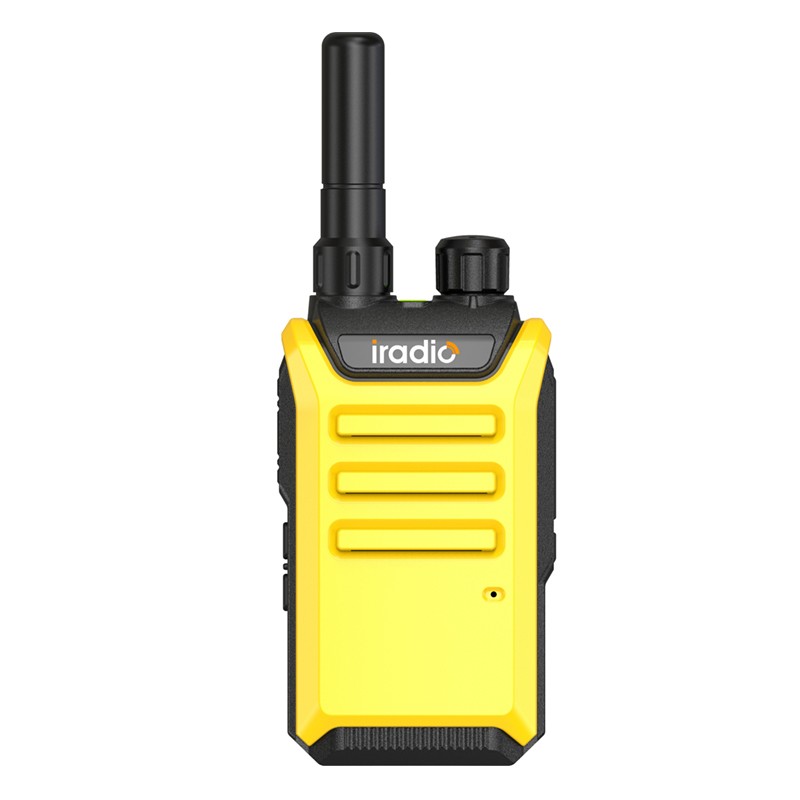

V3 is a tiny, exotic two way radio. Various colors are available.
V3 is a tiny, exotic two way radio. Various colors are available.
0.5W/2W Pocket Mini PMR FRS Radios License free walkie talkie
V3 has several colors available. Black, Red, White, Green, Yellow, Blue.
This tiny, exotic, lightweight design allows users to put the radio into their pocket easily. Perfect for short distance applications such as dentist and medical animal hospitals, caterers, restaurants, and retails.
Features
16 Programmable Channels
·CTCSS/DCS Code
·High/Low power switchable
·Wide/Narrow Band Switching
·Battery Saving
·Low Battery Alerts
·Programmable side keys
·Monitor
·Scanning
·Micro USD Charger
·5C Battery
Technical parameters
General
Frequency
UHF： 400-470MHz
Channel capacity
16
Channel spacing
25kHz/12.5kHz
Voltage
3.7 V DC ±20%
Working mode
Same frequency simplex or different frequency simplex
Antenna
Integrated antenna
Frequency stability
±2.5ppm
Temperature
－20 ~ ＋60℃
Battery capacity
5C 1000mAh
Dimension
130mm X 50mm X 26mm（doesn’t include belt clip）
Weight
90g（doesn’t include belt clip）
Transmitter
RF output power
1.5W/0.5W
Modulation mode
F3E
Maximum frequency deviation（W/N）
≤5KHz /≤2.5KHz
SNR ratio（W/N）
-45dB/ -40dB
Stray power
≤7.5uW
TX current
1.0A; L:0.6A
Receiver
RX sensitivity（W/N）
0.22μV/ 0.25μV 12dB SINAD
Audio distortion
≤5％
Audio output power
≤1W（8 Ω）
RX current
≤0.35A
Note: The above parameters are subject to change without prior notice!
