Iradio UV-8R VHF-VHF/VHF-UHF/UHF-UHF dual band ham radio. Its robust chassis ensures ease of use and allows this radio to be useful in any activity.
Iradio UV-8R VHF-VHF/VHF-UHF/UHF-UHF dual band ham radio. Its robust chassis ensures ease of use and allows this radio to be useful in any activity.

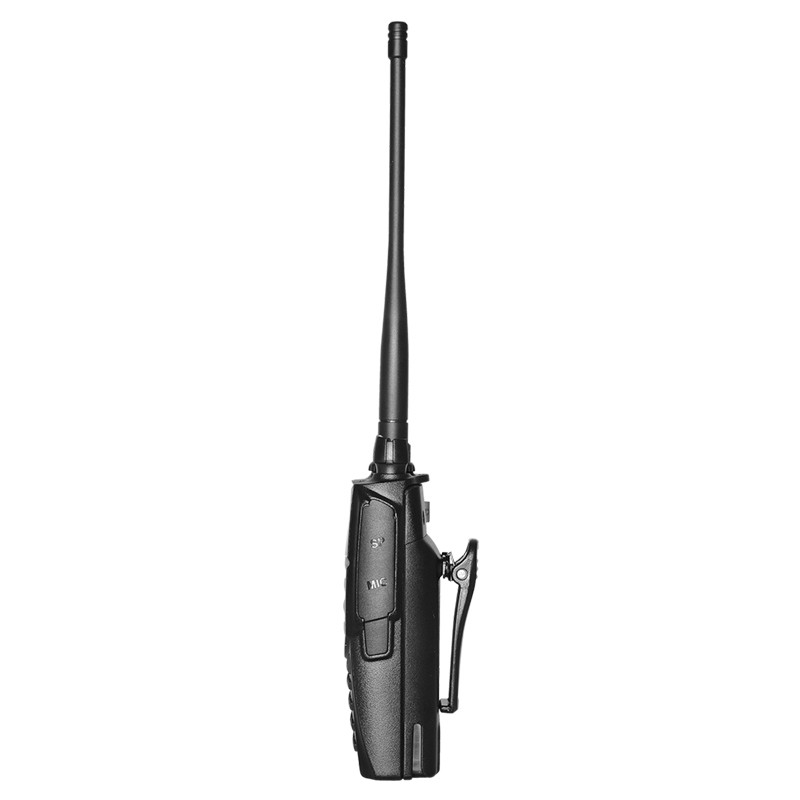

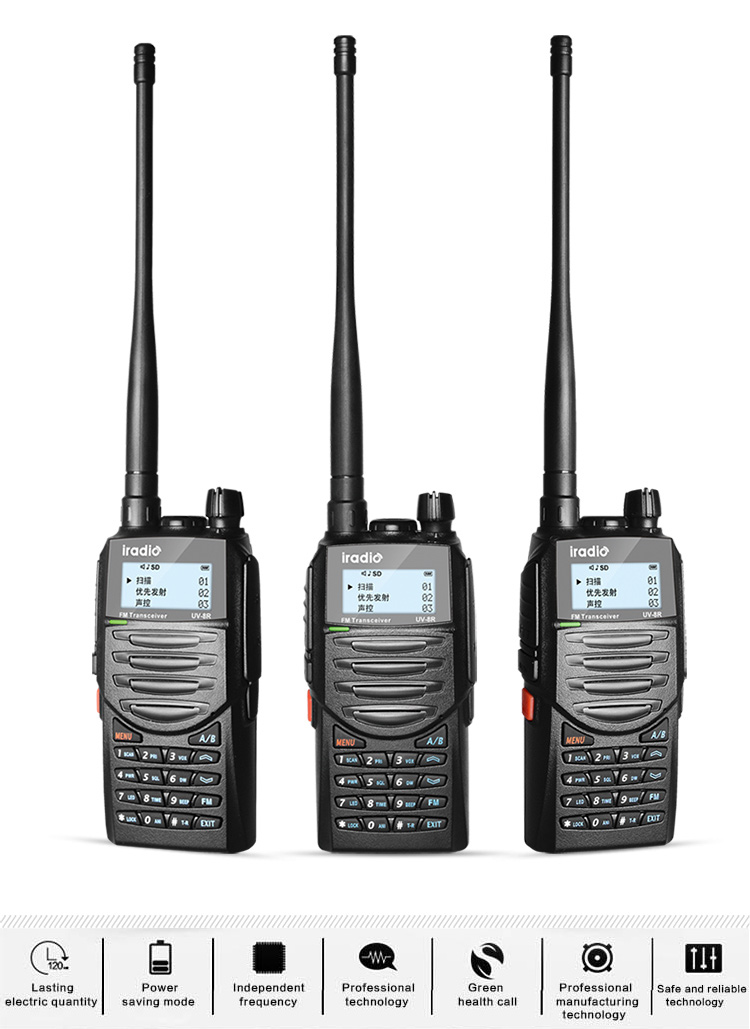

UV-8R UV dual band handheld long range ham radio
Iradio UV-8R is a dual band, dual display, dual standby ham radio. This radio provides users shatter-proof design, lasting battery life, crystal-clear audio, realtime of communication and conversation safety.
The radio features FM radio, ANI code to identify the user's ID, military level of rugged design.
Features
Flashlight
Technical parameters
|
General |
|
|
Frequency |
VHF: 136-174MHZ & UHF： 400-470MHz |
|
Channel capacity |
128*2 channels |
| FM radio | 76-108mhz |
| FM channels | 25 channels |
|
Channel spacing |
25kHz/12.5kHz |
|
Voltage |
DC 7.4V |
|
Working mode |
Same frequency simplex or different frequency simplex |
|
Antenna |
Removable antenna |
|
Frequency stability |
±2.5ppm |
|
Temperature |
－20 ~ ＋60℃ |
|
Dimension |
114mm X 60mm X 35mm（doesn’t include belt clip） |
|
Weight |
220g（doesn’t include belt clip） |
|
Transmitter |
|
|
RF output power |
0.5W/5W |
|
Modulation mode |
F3E |
| Modulation distortion |
≤5 |
| Adjacent channel power |
-65dB(W)/ -60dB(N) |
|
Receiver |
|
|
RX sensitivity（W/N） |
0.22μV/ 0.25μV 12dB SINAD |
|
Audio distortion |
≤7％ |
|
Audio output power |
≥0.5W |
Note: The above parameters are subject to change without prior notice!
