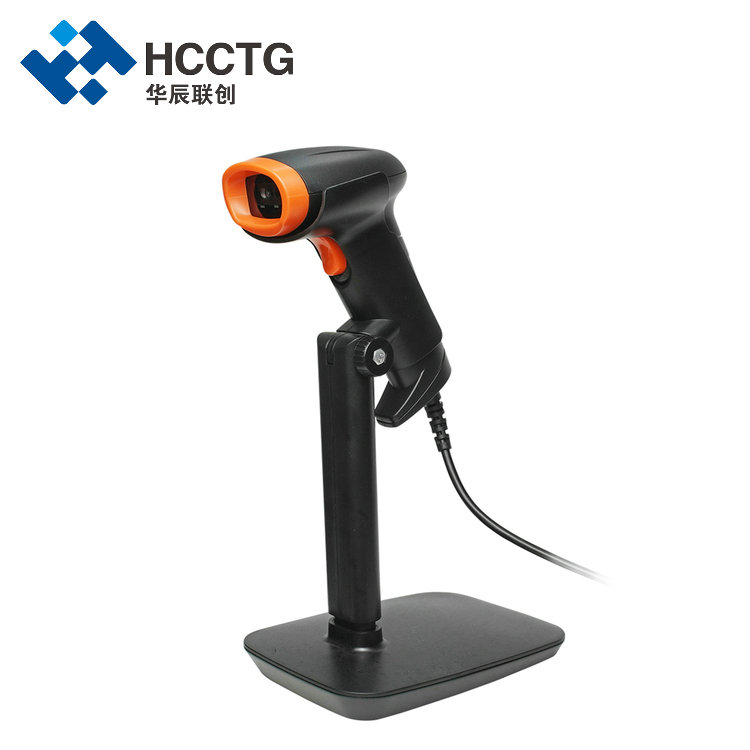

CMOS LED Wired Handheld 1D/2D Barcode Scanner HS-6603B
The HS-6603B 2D barcode scanner is a moderately-priced, high-performance handheld barcode scanner, best suited for retail and healthcare. The appearance adopts the ergonomic design, feel comfortable, convenient to hold. Support a variety of data mode, compatible with WinXP, Win7, Win10, Ios, Android, INDUSTRIAL PC, server and other devices, plug and play, simple and convenient.
If you're seeking investment protection in a scanner that's small and light enough for maximum productivity, then the HS-6603B is the ideal scanner for you.
Specification
|
Image sensor |
640×480 CMOS |
Floodlight |
White LED |
||
|
Resolution |
640px * 480px |
Focusing lamp |
Red LED |
||
|
Read code system |
1D |
EAN-8, EAN-13, UPC-E, UPC-A,ISBN，ISSN，Code128, Code 39, Code 93, Code 11, Codabar，Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25,Plessey, MSI-Plessey |
|||
|
2D |
QR Code,Micro QR, Data Matrix,PDF417 |
||||
|
Accuracy |
≥5mil |
||||
|
Typical |
EAN-13 |
5mil 45mm~130mm |
QR Code |
15mil 19mm~170mm |
|
|
13mil 45mm~230mm |
30mil 30mm~260mm |
||||
|
Sensitivity |
Tilt |
± 55° |
Contrast ratio |
≥20% |
|
|
Rotate |
360° |
Field of |
level |
36° |
|
|
Deflection |
± 55° |
vertical |
27° |
||
|
Prompt mode |
Beep,LED |
||||
|
Reading mode |
Trigger mode, Induction mode, Continuous mode, Command mode,Batch mode |
||||
|
Setting method |
1.Scan Settings code Settings |
Program update |
Data connection updated online |
||
|
Data interface |
USB KBW,USB CDC,USB HID-POS,RS 232,TTL |
||||
|
Communication interface |
USB,RS 232,TTL 232 |
||||
|
Working voltage |
5V |
Working current |
150mA |
||
|
Standby current |
70mA |
||||
|
Relative humidity |
5%~95% (No condensation) |
Working Temperature |
-20℃~+60℃ |
||
|
Light source |
0~100,000LUX |
Storage Temperature |
-40℃~+80℃ |
||
|
Appearance size |
67(W)*113.2(D)*158(H) mm |
Weight |
175g |
||
|
Package size |
205*105*80 mm |
Weight |
245g |
||
|
Parts |
cable(Option 1):USB / RS 232 / TTL |
||||
