USB RS232 3 Inch Barcode Printing Thermal Embedded Panel Printer

HCC-EC80 panel mount printers offer the easiest way to integrate a mini printer into your equipment.
Product Details

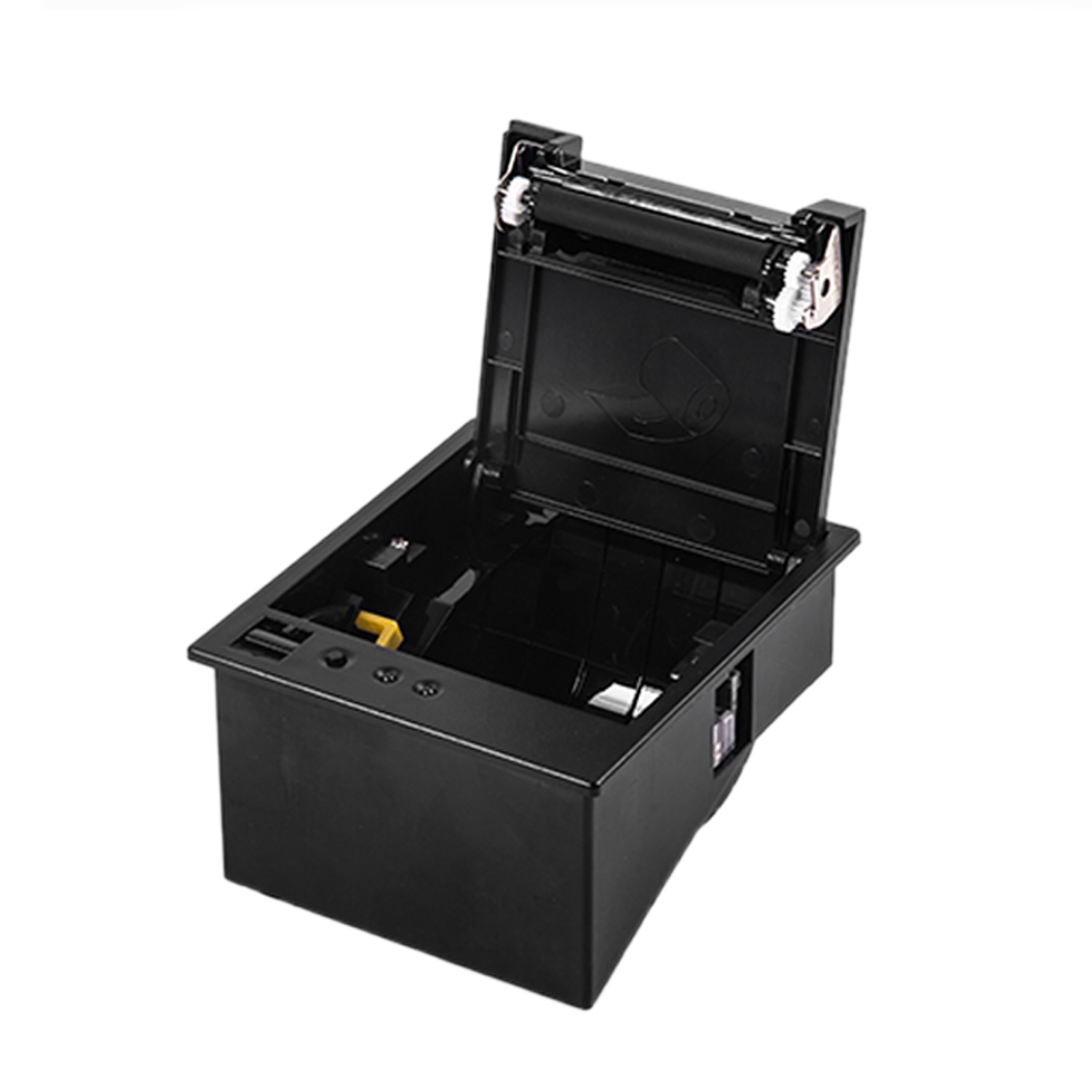

USB 80mm Thermal Embedded Panel Printer For Kiosk/Parking System

HCC-EC80 is the Panel Printer with high printing quality, all language fonts and energy-efficient functionality that reduces power consumption.


Feature:

  • High Printing Speed up to 130mm/second
  • Feed paper automatically
  • Support Windows2000/XP/7/8/10, Linux
  • Good price and Short delivery lead time
  • Factory/Manufacture with engineer team, able to do OEM&ODM
  • Support Big diameter roller paper more than the 50mm
  • Support cash drawer control interface
  • Support paper take away the detection function
  • Support detection the paper end function
  • Support Control Lock opening cover (Optional)

Applications

  • KIOSK & vending machine
  • queuing machine
  • Promotion coupon printing machine
  • Parking system
  • Gas station filling machine
  • Game machine & vote machine


Specifications

Printing Method

Thermal

Dots/line

640dots/line

Resolution

203DPI

Printing Width(mm)

72mm

Paper Width(mm)

80mm

Paper Thickness(um)

56-100

Printing speed

130mm/s

Paperdiameter

MAX (50MM)

Feed Resolution(mm)

0.125

Interface

USB+RS232/USB+TTL

W x D x H(mm)

124.8x125x70.5mm(L*W*H)

Installed size

117mm*117mm(L*W)

Weight(g)

532

Head temperature detection

Thermistor

Paper detection

Transmission photo electricity switch

Black mark detection

Reflecting photo electricity pipe

Platen position detection

Light touchswath

Operation voltage (V)

12V±10%

Graph Printing

Support different density Graph, raster bitmap and download bitmap

Language

Simplified Chinese, Traditional Chinese, English and other 45 kinds of international characters

Barcode

1DBarcode UPC-A, UPC-E, EAN-8, CODE39, ITF; CODE128, CODE93, QRCODE

Logical voltage(V)

5±0.25

Form feeding motor voltage(V)

24±10%

Auto cutting motor voltage(V)

24±10%

Detection voltage (V)

5±0.25

Abrasion resistance

100km

Auto cutting frequency

1 million times

Operating temperature(°C)

0 to 50 (no condensation)

Operating humidity(RH)

10% to 80% (no condensation)

Storage temperature(°C)

-25 to 70 (no condensation)

Storage humidity(RH)

5% to 95% (no condensation)
