Unilyte Range VRLA Battery

EverExceed Unilyte range VRLA batteries adopt ultra high seismic resistance, can reach earthquake resistance level of 10. These batteries are constructed with the finest quality materials and state of the art manufacturing techniques, designed for standby applications that require reliable power and long life.

Features and benefits

Certificates :
ISO / CE/ IEC

Request A Quote

Product Details

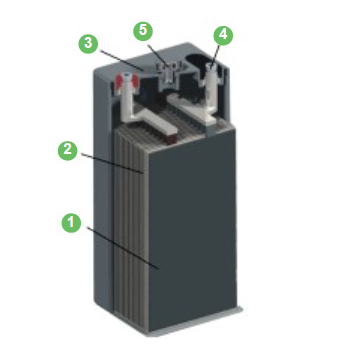

Technical Features:

1. Plates: Lead calcium tin alloy, adopt 99.994% pure lead and high tin design for optimized for high corrosion resistance.
2. Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation of the positive and negative plates.
3. Standard Housing: Reinforced ABS (UL 94HB) container and cover.
4. Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%.
5. Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.
6. Valves: Release gas in case of excess pressure and protects the cell against atmosphere.

• 20+ years design life in float service @ 25℃;
• Valve regulated lead acid battery (VRLA).
• Advanced Lead-Calcium-Tin-Silver positive grid alloy provides long life in both float and cycling applications as well as outstanding recovery from deep discharges.
• Modular design for ease of installation and stacking flexibility space saving design for the greatest amount of power in a small footprint.
• Exceeds 1997 UBC Zone 4 seismic requirements for at or below grade installations.
• Advanced micro-porous Absorbed Glass Mat separators for ultra-low float current and greater than 99% recombination efficiency— reduces grid corrosion for a long and water loss, usable super long service life.
• Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation.
• Heavy duty Silver-plated threaded copper alloy terminals for ease of assembly, reduced maintenance and increased safety.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, results in high energy density and low float current.
• Flame arresting, low pressure safety release venting system for individual cells, recognized per U.L. 924.
• Thick plate design for extra long deep cycle life.

Application:

• Network Operations Centers
• Internet Hosting Sites
• Banks & Financial Markets
• Uninterruptible power systems
• Power Plant and Substation

• Switchgear and control
• Railroad signal and communication
• Telecommunications
• Photovoltaics
• Alternative energy systems
