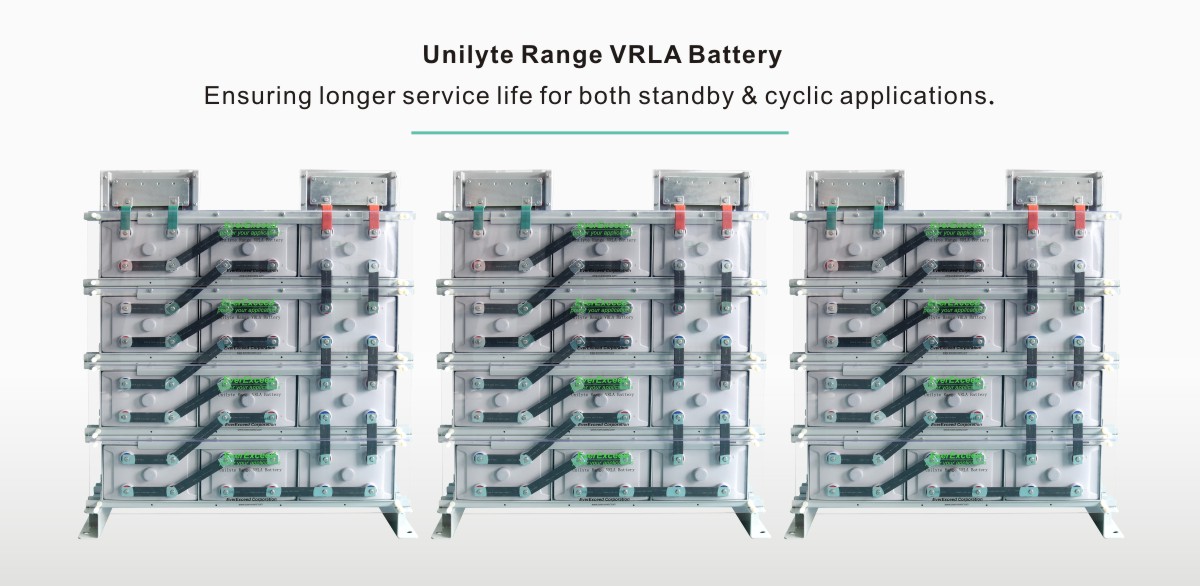

EverExceed Unilyte Range VRLA batteries are unmatched in power density with space saving modular designs and have a 20+year design life to reduce the total cost of ownership. EverExceed Unilyte batteries are constructed adopting the finest quality materials and state-of-the-art manufacturing techniques, designed for standby applications that require reliable power and long life.
Model :
UN seriesRated voltage(V) :
2VRated capacity(Ah) :
200-1500AhOEM/ODM Service :
Yes, customizedCertificates :
UL1989; IEC61427;IEC60896; CEUsage :
•Network Operations Centers;•Internet Hosting Sites;•Banks & Financial Markets;•Uninterruptible power systems;•Power Plant and Substation;• Railroad signal and communication;• Telecommunications;•Photovoltaic;•Alternative energy systems;•Switchgear and control
Technical Features:
Superior cycle performance
Unique performance
Excellent deep cycle life
Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, high energy density & low float current
Designed for more than 4000 charge / discharge cycles @ 30%DOD. Thick plate design for extra long deep cycle life
Low self-disharge rate
Easy installation & high safety
Long service life
Less than 3%/month to ensure maximum storage time
Heavy duty Silver-plated threaded copper alloy terminals for ease of assembly, reduced maintenace and increased safety.Flame arresting, low pressure safety release venting system for individual cells, recognized per U.L.924
20+ years design life in float service @ 25℃
Flexible capacity expansion
Space saving
Assured quality
Customs designed racks & modules can be stacked up to eight high
Modular space saving design for ease of installation & assembling flexibilty
These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896 & IEC61427
Excellent deep cycle life
Wide operating temperature range
Pure Lead composition
More than 4000 charge/discharge cycles @30% DOD
-40°C to +70°C
99.994% pure lead excels performance & lifetime

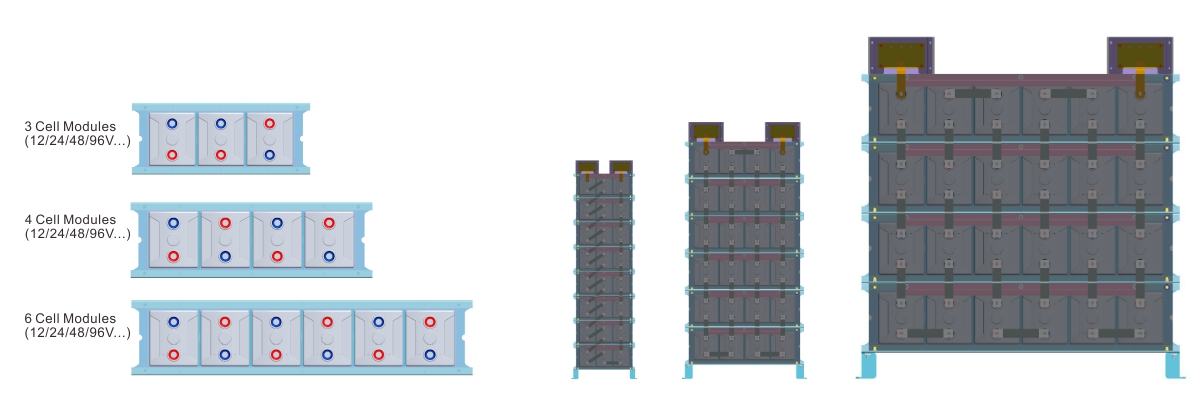

Cells Configuration

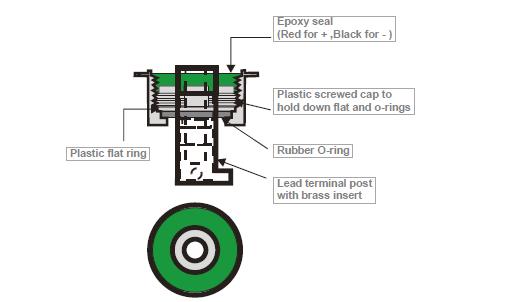

Typical Triple Barrier Post Seal Detail:
 |
 |
|
Applications:
|
•Network Operations Centers； •Internet Hosting Sites； •Banks & Financial Markets； •Uninterruptible power systems；
•Power Plant and Substation； • Railroad signal and communication； • Telecommunications； •Photovoltaic； •Alternative energy systems； •Switchgear and control

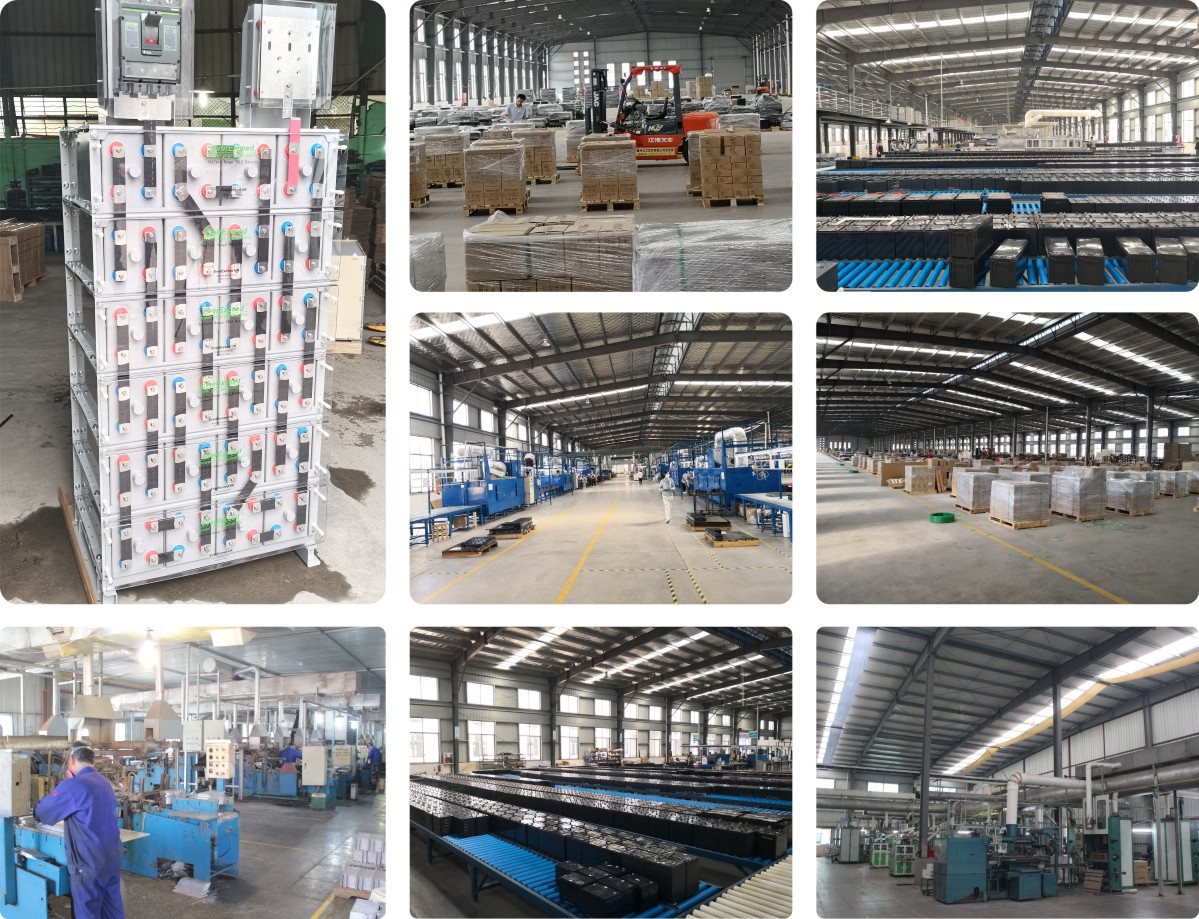

Factory:
