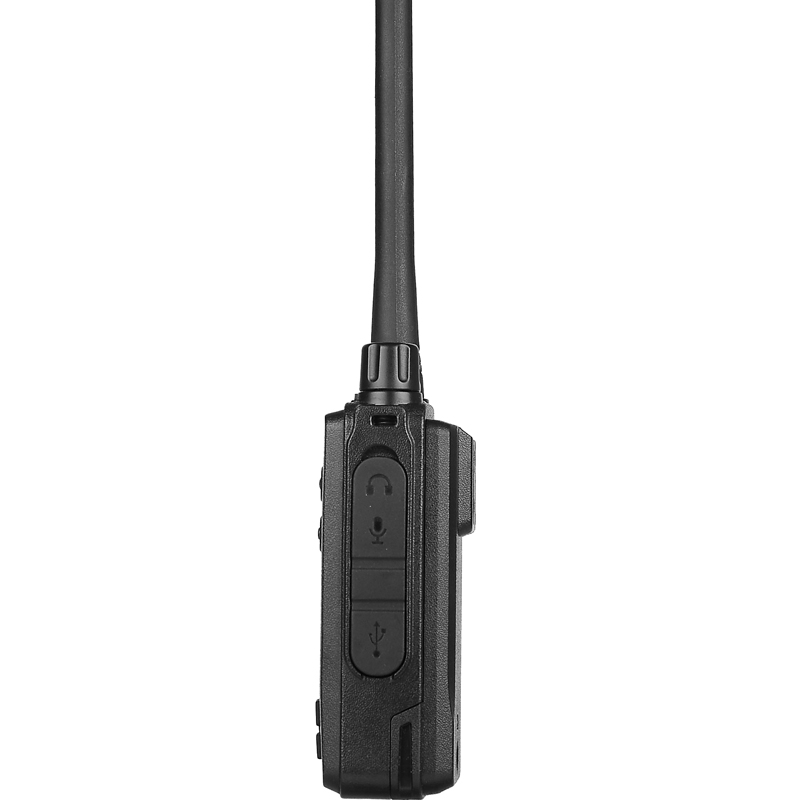

UHF Walkie Talkie 1000 Channels DMR Radio

DM-830 is an exciting new addition commercial DMR radio. Bringing you a whole new set of digital features, such as two timeslots, versatile calls, remote kill/revive, and a clear digital audio, this is a cost-effective radio solution for shop fronts, small warehouses, schools, hospitality, pubs and clubs, restaurants and bars, car park attendants and much more.

Request A Quote

Product Details

UHF Walkie Talkie 1000 Channels DMR Radio

DMR Digital Two-way Radio Systems,DM-830 is an exciting new addition commerical DMR radio. Bringing you a whole new set of digital features, such as two timeslots, versatile calls, remote kill/revive, and a clear digital audio, this is a cost-effective radio solution for shop fronts, small warehouses, schools, hospitality, pubs and clubs, restaurants and bars, car park attendants and much more.

Quick Details

1.64 zone 1024contacts
2.Encryption function
3.Digital analog combined
4.Single call, group call and all call
5.Remore kill/ stun and activate
6.Man Down
7.SMS message
8.Firmware upgradeable
9.DTMF Function
10.High/low power selection
11.Protocol ETSI TS 102,361-1,-2,-3
12.GPS function (optional)

Specification

GENERAL
Frequency Range	400-480MHz
Operating Temperature	-20℃to +55℃
Channel spacing	12.5KHZ
Frequency Stability	±2.5ppm
Memory Channel	100
Working voltage	7.4v
Antenna Impedance	50Ω
Audio output power	≤1000mW@16Ω
Dimensions	985835mm
Weight	194g

TRANSMIT PART
RF power	High: ≤5W(HI) Low: ≤1W(Low)
Frequency stability	+/-1.0ppm
Adjacent channel Power	≤-60dB
Free time slot power	TDMA: ≤-57dBm
FM modulation mode	12.5KHZ:11K 0 F 3 E

RECEIVER PART
Analog sensibility	0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dB m(Type)
Digital sensibility	0.3 uV/-117.4dBm(BER 5%) / 0.7 uV/-110dBm(BER 1%)
Co-channel Rejection	≥-12dB
Spurious response	TIA603C: 75dB ETSI: 70dB
Adjacent channel selectivity	TIA603C: 65dB ETSI: 60dB
Rated audio power	1w

DMR Digital Two-way Radio Systems

Service

Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping

Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
