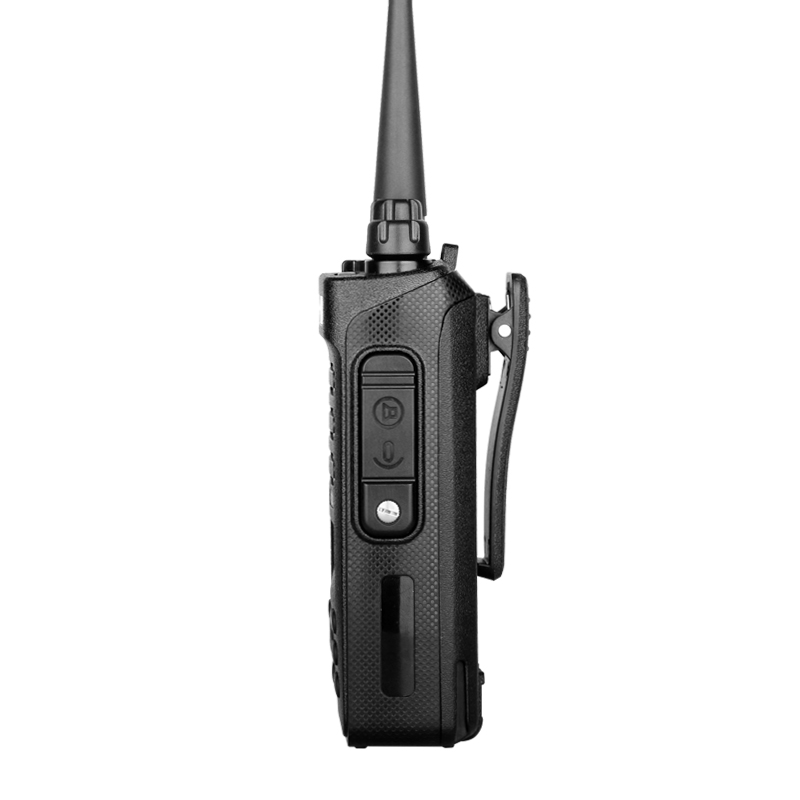

Product Name: UHF VHF Intercom 2-way Radio
Product Features
1. 16 Channels
2. Output Power: 5W
3. Voice Annunciation
4. Time-out Timers
5. VOX Function
6. Scan Function
7. FM Radio
8. Battery Saver
9. Low Battery Warning
10. Emergency Alarm
11. Channel Lock Out
12. CTCSS/DCS
13. Squelch Level Adjust
14. Wide/Narrow Band 25KHz/12.5KHz
Technical Specifications
|
General |
|
|
Model No. |
5710 |
|
Frequency Range |
UHF 400-470MHz |
|
VHF 136-174MHz |
|
|
Channel Capacity |
16CH |
|
Channel Spacing |
12.5KHz/25KHz |
|
Operating Voltage |
7.4V-8.4V DC |
|
Battery Capacity |
1750mAh (Li-Ion ) |
|
Operating Temperature |
-20℃ to +50 ℃ |
|
Frequency Stability |
±2.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimension |
64x42x135mm |
|
Weight |
340g |
|
Transmitter |
|
|
Output Power |
5 watts |
|
Modulation Type |
16kφF3E(Wide Band) |
|
11kφF3E(Narrow Band) |
|
|
MAX. Frequency Deviation |
<5KHZ(Wind Band) |
|
<2.5KHZ(Narrow Band) |
|
|
Adjacent Channel Power |
≥60dB |
|
S/N |
≥45dB |
|
Audio Distortion |
≤3% |
|
Audio Response |
6dB/Each octave |
|
FM |
≤-36dB |
|
Receiver |
|
|
Sensitivity(12dB SINAD) |
≤0.25uV(Wide Band) |
|
≤0.35uV(Narrow Band) |
|
|
Intermodulation |
65dB |
|
Adjacent Channel Selectivity |
≥65dB(Wide Band) ≥60dB(Narrow Band) |
|
S/N |
≥50dB |
|
Audio Response |
6dB/Each octave |
|
Rated Audio Distortion |
≤3% |
|
Audio Output Level |
22dBMW(10%hours) |
|
Rated Audio Output power |
1000mw |
|
Spurious Rejection |
≥80dB |
|
MAX. Frequency Deviation |
<5KHZ(Wind Band) <2.5KHZ(Narrow Band) |
Standard Accessories
