Two-Component PU Foam Soft Spray Foam Polyurethane Foam Wall Panel

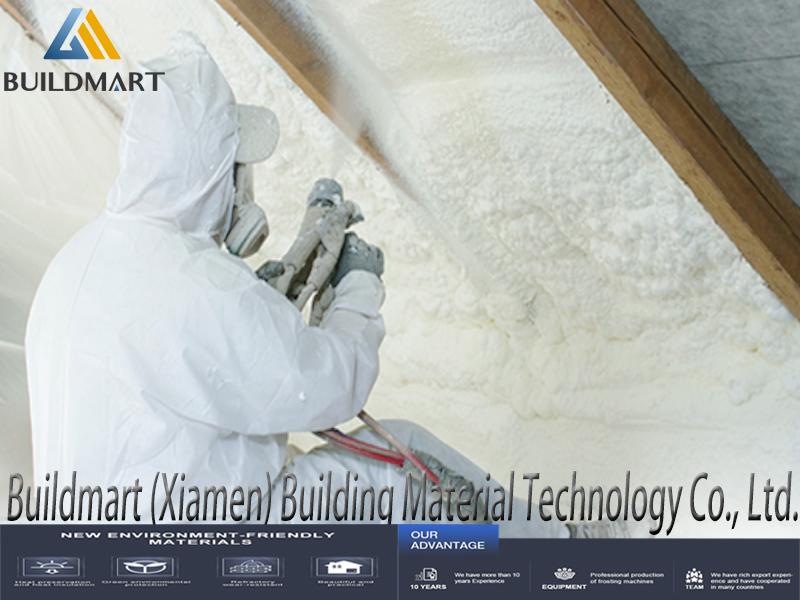

Spray Polyurethane Foam can be used practically everywhere can be imagine for heat and acoustic insulation purposes. For example, roofs, attics, facades, foundations, basements, cellars, floors, internal walls, overlapping between floors, inner sections, ceilings and storerooms. Besides, it can further be used on structural elements of buildings, balconies, arcades, doors, window slopes, pipes and conduits, tanks and on entire inclined, rough and uneven surfaces. It can also be used on vehicle bodies, vehicle trailers, container carriers, container sheds, parking lots and garages, boats, yachts, crafts and hundreds of similar areas.
The use of Spray Polyurethane Foam is quite handy comparing to its equivalents. First of all, nozzle A is firmly fixed on the tip of the application gun for vertical floors. Attention is paid not to have any clearance between the nozzle and the gun. Because, any clearance will result in leakage of foam during the application process. Then, the can is shaken for at least 20 times. Application gun is fixed by opening the upper lid of the cap by winding up. The screw located at the back side of the gun is untightened and the application pressure can be adjusted as desired. At normal conditions, it is recommended to wind up the screw to the end. Afterwards, the product is applied relatively rapidly at a distance of an average of 40-45 cm from the surface. Getting close or away from the surface may introduce some disadvantages. If we get closer to the surface, application thickness increases. Ideal application should be a thickness of maximum 1.5 cm on a single layer. If you conduct a thicker application as a single layer, both the heat and the sound insulation value will decrease. The optimal application should have a thickness of 1.5 cm and in 3 layers overlapping. Then, an application could be done with the performance equal to its equivalent heat and sound insulation. In case an application is made from a distance more than 40-45 cm, application thickness will be decreased and therefore consumption will increase.
Physical Properties | Test Method | Metric | Value |
Core Density | GB/T 6343-2009 | kg/m3 | 45.3 |
Compressive Strength | GB/T 8813-2008 | kPa | 264 |
Tensile Strength | GB/T 9641-88 | kPa | 136 |
Oxygen index | GB/T 2406.2-2009 | % | 23.4 |
Initial Thermal Conductivity | GB/T 10294-2008 | W/(m·K) | 0.022 |
Close Cell Content | GB/T 10799-2008 | % | ≥88 |
Water Absorption | GB/T 8810-2005 | % | ≤3 |
Dimensional Stability -25ºC (Foam made After 6 days) |
GB/T 8811-2008 | % |
≤±1 ≤±1 |
1.We have a special team to conduct inspections, including humidity control, glue inspection before and after production, material grade selection, compaction inspection, and thickness inspection to ensure product quality and quantity. Our aim is to provide quality products and reasonable prices.
2.Buildmart (Xiamen) Building Technology Co., Ltd was established with one goal in mind - to provide a broad range of building materials for cold formed steel construction to general contractors, custom home builders, remodelers, distributors. From frame to finish, we have fiber cement board, insulation, metal studs & track, house wrap, OSB board, SPC flooring, roof tile, rain gutter, fasteners, steel coil that you need. Make the smart choices for your building materials to ensure that every project is a smooth success. Build Smarter. Build Better.
3.Buildmart specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
1)Residential and Commercial buildings
2)Steel framed systems for modular & prefabricated buildings
3)Walls framed for low and high rise buildings
4)Walling, floors, beams, roofing, kitchen & bathroom pods
5)Storage, recreational, transportable dwellings
Q: Are you a factory or a trading company?
A: We are the total building system integrator as to save your production time, delivery costs and with quality assurance. The purpose of our company is to help you Build Faster, Smarter and Better.
1.Building materials: Our warehouse in stock for roofing materials, floor materials, wall materials, house fasteners & etc.
2.House design service: with 30+ designers available for the service.
3.House structure manufacture: we have 10+ steel frame machines to manufacture the structure.
Q: Do you have a minimum order quantity requirement?
A: We do not have a minimum order size, but to help you save shipping costs, we recommend multiple product combinations.
Q: What is your delivery time?
A: The delivery time is 5-10 days after receiving your deposit.
Q: Are samples available?
A: Yes, the samples are free, and the courier fee will be charged by you or provided to us by your courier account. After the order is confirmed, this fee can be refunded from the order.
Q: Can I visit your factory for inspection before placing an order?
A: Warmly welcome you to visit our factory at any time. Please let us know your arrangements in advance so that we can book the hotel and arrange the pick-up service for you.
If you have any require, please feel free to contact me~
