TUV 2PfG/1169 PV1-F Single Core Solar Cable

These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
Features and benefits
  • Rated Voltage :

    AC: 600/1000V DC: 1000V
Product Details

TUV 2PfG/1169 PV1-F Single Core Solar Cable

Our Single DC Solar Cable PV1-F will not melt or flow even at high temperatures. It has high heat resistance, cold resistance, abrasion resistance, UV resistance, ozone resistance and hydrolysis resistance.

Accept customized photovoltaic cables are widely used in photovoltaic system power station,terminal block,connector,inverter,junction box,etc.

PV1-F Single Core Solar Cable


Product description:

Voltage Rating  (Uo/U)

AC:600/1000V

DC: 1000V

Test Voltage

6500V AC

Temperature Rating

Rated: -40°C to +90°C

Max.conductor temp: +120°C

Short Circuit: +250°C

Minimum Bending Radius

Ø<8mm  ≥4 x overall diameter

Ø≥8mm  ≥6 x overall diameter

Testing Standard

Flame Test : IEC60332-1-2 ,EN60332-1-2

Halogen Free : EN50627-2-1 ,EN60684-2

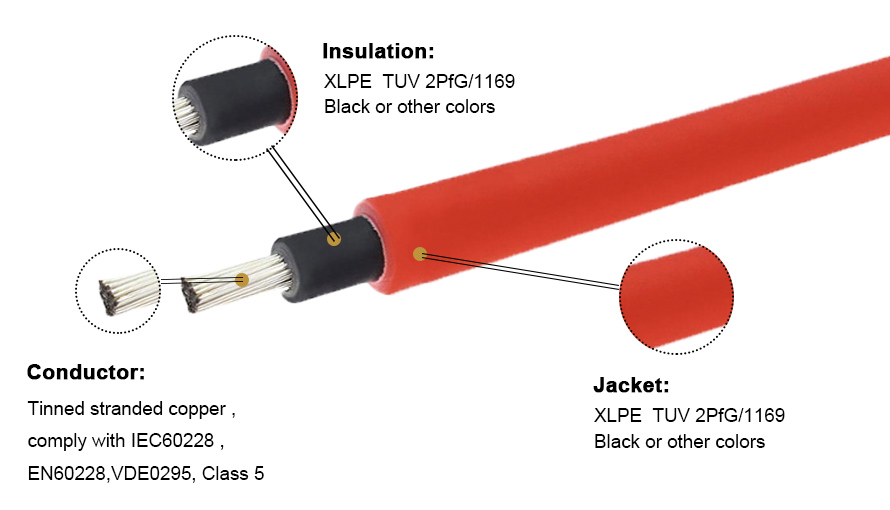

Solar Cable Pv1 F


Cable Name
Cross Section
(mm²)
Construction
(No./mm)
Conductor
Stranded O.D.
(mm)
Conductor resistance
Max (Ώ/km)
Cable O.D.
(mm)
Max.DC Voltage
(V)

PV1-F  Single core

TÜV  2PfG/1169

1.5 30/0.24 1.51 13.7 4.3 1000
2.5 49/0.24 1.93 8.21 5.4
4.0 56/0.285 2.46 5.09 6.1
6.0 84/0.285 3.17 3.39 6.87
10 77/0.4 4.56 1.95 9.0
16 126/0.4 5.6 1.24 10.3
25 196/0.4 7.25 0.795 12.2
35 276/0.4 8.74 0.565 13.8


Advantages:

(1)Electron-beam cross-linked compounds;

(2)UV, ozone and hydrolysis resistant;

(3)High temperature resistant, the materials do not melt or flow;

(4)Good cold flexibility;

(5)Very long service life > 25 years at 90°C;

(6)Compatible to all popular connectors.


Packing & Delivery:


Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,house solar power system, solar pv cable , PV connectors, fence, photovoltaic inverter etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
