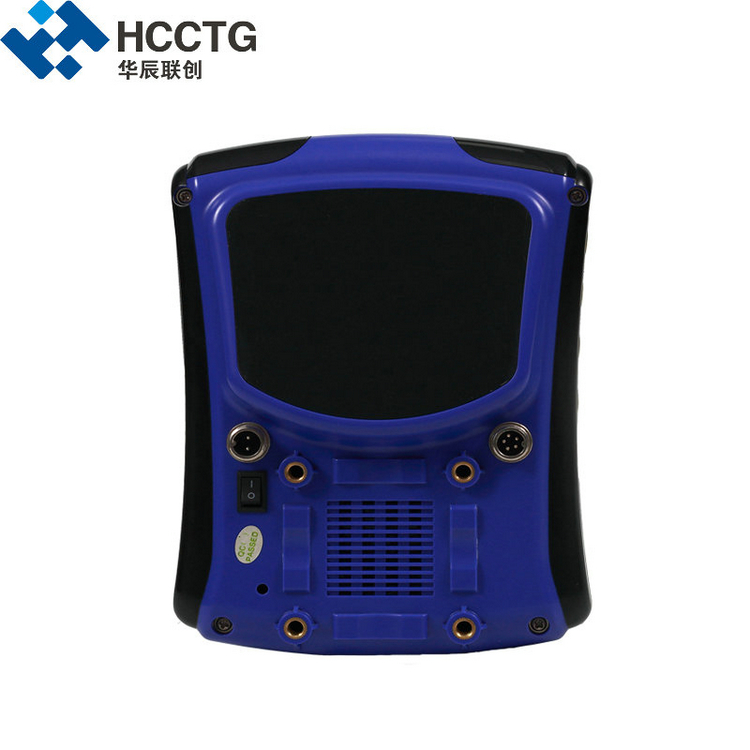

HCL1306 is a new type of bus fare collection terminal that is stylish, durable and practical.
Made of industrial grade material, Fully adapt to special circumstances on bus
Sealed, dust proof, waterproof, shockproof and anti-electromagnetic interference
Dedicated built-in voltage regulator module, voltage overload protection
With the most advanced Linux system, high-definition LCD display
POS Payment Card Ticketing Terminal Bus Validator
Applications:
Micro-payments solutions for transit (Bus, MRT, LRT);
Micro-payments solutions for taxi;
Micro-payments solutions for motoring (ERP, parking);
Micro-payments solutions for retail (Super market,store,theater) and other services.
Features:
WIFI Communication + USB data acquisition, support remote upgrading
Contactless smart card, read/write capability, light display for reading card
Live voice prompts, supports 15 kinds of voice prompts: such as “student card”, “employee card”
Support Mifare1 card, CPU card, support PBOC3.0 bank standards
With Thermal printing module, can connect to POS58 slip printer
Optional GPS positioning module, for global positioning satellite positioning;
Great stability of data storage, data kept as long as 10 years even after power outage
Card Capacity: 91,880,000pcs;
Can check the nearest 20 records, to prevent ticket payment dispute.
Specifications
|
Model |
HCL1306 busPOS terminal |
|
Dimension |
200*151*61.5mm |
|
Material |
Engineer in Plastics,Anti static electricity coating design, be protected form high-frequency interference |
|
Display |
3.5 inch LCD display,320x240 |
|
Operating system |
Linux 2.6 system |
|
CPU |
N32905 processor,ARM9 core @ 240MHZ |
|
Memory |
32MBytes SDRAM,128MB NAND Flash |
|
Data capacity |
259840pcs of detailed data for console storage, unlimited data at GPRS storage |
|
Card capacity |
91,880,000pcs |
|
Black list |
91,880,000pcs (download thru PC with USB) |
|
Working Voltage |
DC 8V-50V |
|
Operating temperature |
-25℃~65℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0-90% RH non condensing |
|
Lighting |
Red, Green light |
|
Sound prompt |
Buzzer, single channel speaker (voice report) |
|
Voice report prompt |
16KHz,16bit single channel voice report prompt |
|
Keypad |
4 command buttons |
|
RFID |
Can read and write ISO14443 TYPE A/B Electronic tag(Incl Combi-card) |
|
Read card distance |
0~50mm |
|
Supporting card |
Mifare 1 card, CPU card, Union Pay IC card |
|
Frequency |
13.56MHz |
|
Interfaces/Connectors |
RS232, USB |
|
Card slot |
SIM*1, SAM*4 |
|
Printer modules |
Can be connected to slip printer-POS58 |
|
Width of receipt |
Based on printer configuration |
|
Positioning mode |
GPS |
|
Power consumption |
≤10W |
|
Communication Modules |
GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) |
|
WIFI |
Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
|
Union Pay |
Compatible for PBOC3.0 Union Pay card |
|
Upgrading |
Connect USB to PC, upgrade with GPRS |
|
Data collection |
WIFI, GPRS, USB,2D Barcode scanner |
