Textile Inverter for spinning machine

V5−BA series is a high-performance vector control inverter launched by V&T for spinning frame in textile industry. The product adopts the open-loop vector control technology with the current international advanced technology, which has the same excellent control performance with the international high-end inverter.

Features and benefits
  • Certification :

    CE, EAC, ISO9001, OHSAS18001, TS16949, SGS
  • Availability :

    OEM/ODM, Minmum Order Request
  • Shipping Port :

    Shenzhen
  • Place of Origin :

    China
  • Delivery Time :

    5-7 working days for standard series; 7-14 working days for customized AC drives
  • Transportation :

    Express · Sea freight · Land freight · Air freight
  • Package :

    Standard Export Package Carton/Wood
  • Warranty :

    18 Months
  • Customized :

    YES
  • Term of payment :

    T/T, L/C, D/P
  • Sample freight payer :

    Buyer
  • Sample provide :

    YES
Product Details

Product Overview


Product Name Frequency Inverter/ AC Drive
Model Number V5-BA-4Txx
Power Range 7.5kW-90kW
Rated Input Voltage 3 phase 380V/480V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor
Control Mode V/F Control, Vector Control, Sensorless Vector Control, Vector Torque Control
Communication Modbus 485 RTU
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)

Feature

■ Designed for requirements of spinning frames in textile machinery with convenient installation outside cabinet;

■ Suitable for dusty industrial sites, and the radiator is easy to clean;

■ After the inverter temperature exceeds the set value, it reminds the user to clean the radiator and fan;

■ Easy to operate, single button to stop, being zero on full yarn and wire break;

■ Built-in swing frequency function can output triangle frequency and kick frequency to prevent yarn overlap and facilitate unwinding;

Stop automatically to avoid wire break ;after the pulse feedback signal misses;

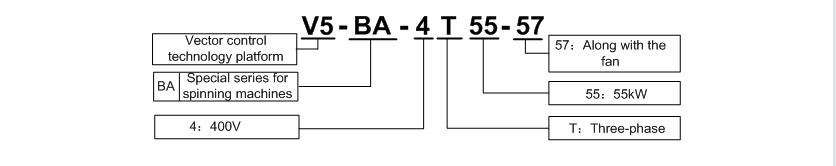

Model Explanation


Product Catalog

V5−BA−4T□□□ ;

Power (kW)

7.5

11

15

18.5

22

30

37

45

55

75

90

Adapter motor power (kW)

7.5

11

15

18.5

22

30

37

45

55

75

90

Output

Voltage (V)

3-phase 0 to rated input voltage

Rated current (A)

17

22

30

37

44

56

72

91

110

142

176

Overload capability

115% 1 minute, 160% 0.5 seconds, interval 10 minutes (inverse time characteristic)

Input

Rated voltage / frequency

3-phase 380V/480V; 50Hz/60Hz

Allowable voltage range

323V ~ 528V; voltage imbalance: 3%; allow frequency fluctuation: ± 5%

Rated current (A)

19

26

33

41

48

62

79

100

121

156

194

Brake unit

Built-in as standard

Built-in as optional

IP

IP20

cooling method

Forced air cooling









Model table


Voltage

Model

Three-phase 400V variable torque / light load application

Motor (kW)

Rated output current (A)

Rated input current (A)

400V

V5−BA−4T7.5

7.5

17

27.9

V5−BA−4T11

11

24

39

V5−BA−4T15

15

30

50.3

V5−BA−4T18.5

18.5

37

60

V5−BA−4T22

22

44

69.3

V5−BA−4T30

30

56

86

V5−BA−4T37

37

72

104

V5−BA−4T45

45

91

124

V5−BA−4T55

55

110

150

V5−BA−4T75

75

142

190

V5−BA−4T90

90

176

235


Installation Dimension



V5−BA Outline and installation dimensions ;                  ;V5−BA−57 Outline and installation dimensions





V5−BA series Outline and installation dimensions and approximate weight



Voltage

Model

Outline and installation dimensions (mm)

weight (kg)

W

H

D

W1

H1

D1

W2

Hole d

V5−BA−4T7.5

206

303

153

166

251

96

136

8

6.5

V5−BA−4T11

V5−BA−4T15

236

386

201

236

318

102

170

8

9.5

V5−BA−4T18.5

V5−BA−4T22

345

483

238

295

410

130

220

8

18

V5−BA−4T30

V5−BA−4T37

V5−BA−4T45

400

610

297

340

520

183

260

10

30

V5−BA−4T55

V5−BA−4T75

470

639

302

410

545

183

320

10

40

V5−BA−4T90


V5−BA−57 series Outline and installation dimensions and approximate weight


Voltage

Model

Outline and installation dimensions (mm)

weight (kg)

W

H

D

W1

H1

D1

W2

Hole d

V5−BA−4T7.557

206

303

185

166

251

96

136

8

7.5

V5−BA−4T1157

V5−BA−4T15−57

286

386

245

226

308

102

170

8

10.5

V5−BA−4T18.5−57

V5−BA−4T22−57

345

482

286

285

400

130

220

8

19

V5−BA−4T30−57

V5−BA−4T37−57

V5−BA−4T45−57

400

610

343

330

520

183

260

10

31

V5−BA−4T55−57

V5−BA−4T75−57

470

639

350

400

545

183

320

10

41

V5−BA−4T90−57


Optional Expansion Card

category

name

model

Function Description

reference

Operation panel

Operation panel (shuttle ;type)

V6DP01

Full range of models

P2−**

Operation panel (button type)

V6DP02

Full range of models

P2−**

Text display

EXMT01

Man-machine interface - text display

P2−**

touch screen

EXMT02

Human-machine interface - touch screen

P2−**

Fake panel

V6DP03

Customer option

P2−**

Pallet

V6DP05

Operation panel mounting accessories

P2−**

Expansion Card

Power monitoring card

EXPA01

Three-phase input power supply phase loss / instantaneous power failure monitoring

P2−**

Phase detection card

EXPA02

Three-phase input power phase detection

P2−**

External power rectifier card

EXRF01

Control power is provided by external power supply

P2−**

Programmable CAN bus expansion card

EXCA05

;

P2−**

Profibus DP communication card

EXCA06

;

P2−**

Keyboard extension cord

2 m keyboard extension cable

CB1200

;

P2−**

3 m keyboard extension cable

CB1300

;

P2−**


Applications











Representative Industry

The textile spinning frame can also be used in other industries where dust is frequently cleaned.
