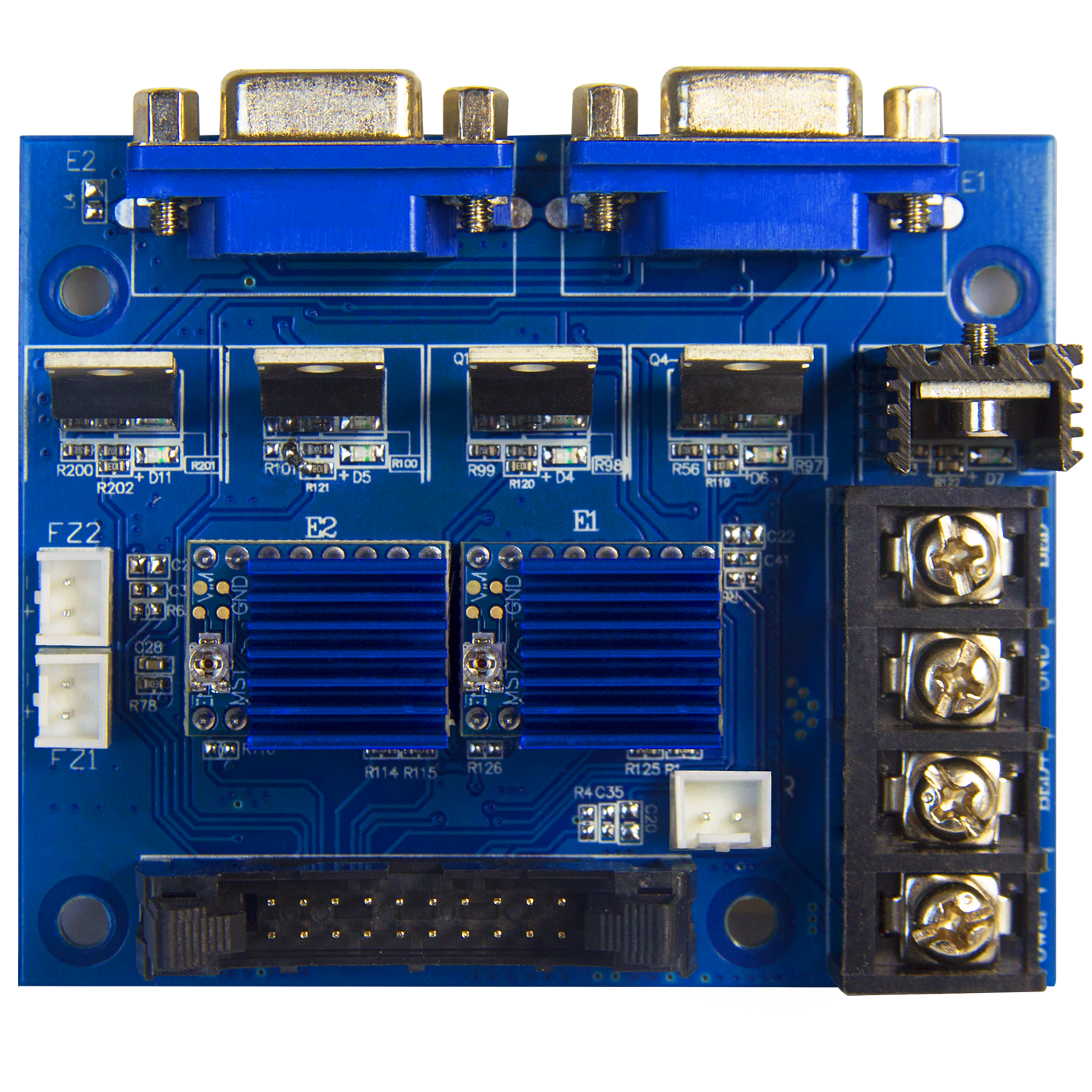

Tenlog DMP 7-axis Motherboard (Version 2)
Support both A4988 & TMC2208 Driver
Each Small Motherboard Enjoy a Fan Add 1 More Fan than the Version 1
The Version 1 and 2 Motherboard Use the Same Firmware
You Can Only Use the Same Motherboard as Your Current Host, the Wrong Version Will Lose the Warranty!
Tenlog DMP 7-axis Motherboard contains seven TMC2208 or A4988 drivers, Suitable for Hands 2, TL-D3 Pro, TL-D3S, TL-D5, TL-D6 and other Tenlog DMP 3D Printer.
You can choose a touch screen is equipped with a brand new UI.
Motherboard:
Input Voltage: 24V
Hot Bed Output Voltage: 24V
Support Power-loss Recover & Filament Runout Detection
SD Card Slot*1
USB Type-B Port*1
Tenlog 15Pin All-in-One Connector*2
Controllable Number of Motors: 7
Master Chip: ATmega2560
Whether to Pre-install Firmware: Yes, with Newest Version
Microcontroller
ATmega2560
Operating Voltage
5V
Input Voltage (recommended)
7-12V
Input Voltage (limit)
6-20V
Digital I/O Pins
54 (of which 15 provide PWM output)
Analog Input Pins
16
DC Current per I/O Pin
20 mA
DC Current for 3.3V Pin
50 mA
Flash Memory
256 KB of which 8 KB used by bootloader
SRAM
8 KB
EEPROM
4 KB
Clock Speed
16 MHz
LED_BUILTIN
13
Length
101.52 mm
Width
53.3 mm
Touch Screen:
4.3-inch 480*272 LCD Touch Screen for TL-D3 Pro, TL-D5, TL-D6 OR
3.5-inch 480*320 LCD Touch Screen for Hands 2
Whether to Pre-install Firmware: Yes, with Newest UI
How to Upgrade Drivers to TMC2208 from A4988
Download the newest Firmwarm
https://www.tenlog3d.com/download_d5
Select the right firmware for your motherboard and follow our note to upgrade.
