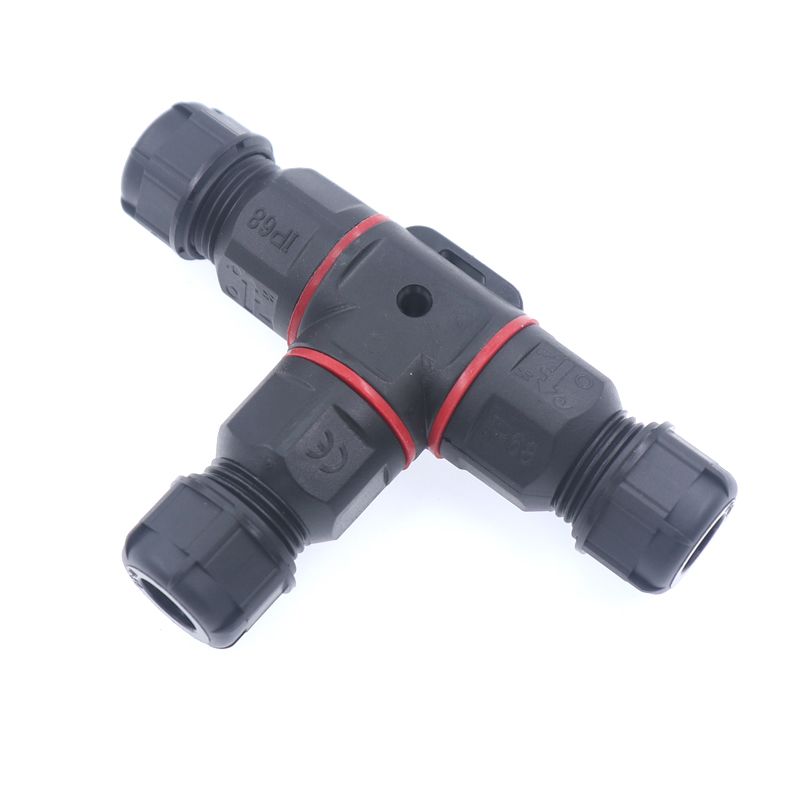

T Type Connector 3 Way Power Branch 250V16A IP68 2pin 3pin 4pin
*T Type 3 Way Branch Connectors 2Pin/3pin/4pin
*6-10mm Cable Diameter，≤2.5mm2(14AWG)Wiring，Screw Crimp
*250V AC，≤16A
*Three-Way Independent Wiring, Easier And Faster To Operate
| Size Of T Type 3Way Power Connectors Joint |
| Product Parameter Of 3 Way Power Branch Connectors | |||
| Model | OL-T1-2P/3P/4P | Housing Material | Nylon |
| Contact Material |
Nickel plated copper |
Rated Voltage | 250V AC |
| Rated Current | 16A | Waterproof Level | IP68 |
| Wiring Core | 2P 3P 4P | Wiring Range | ＜2.5mm2(14AWG) |
|
Adapter Cable Diameter |
6-10mm |
Wiring Type |
Screw Crimp |
|
Use |
Power Branch Connections |
Fire-Proof Level |
UL94 V-0 |
| T Connectors Composition |
| Product Details of T Type Connectors |
 |
*Three-way independent wiring, easier and faster to operate |
|

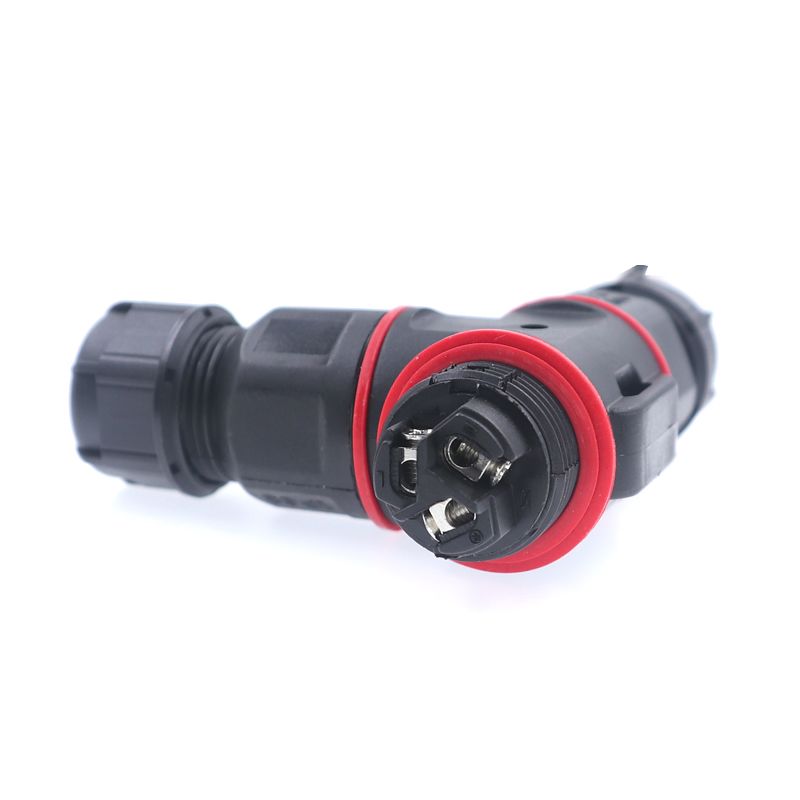

*Each terminal is marked with polarity or number symbol, such as: "1", "2", "3" or "N", "L" to avoid wiring errors |
 |
 |

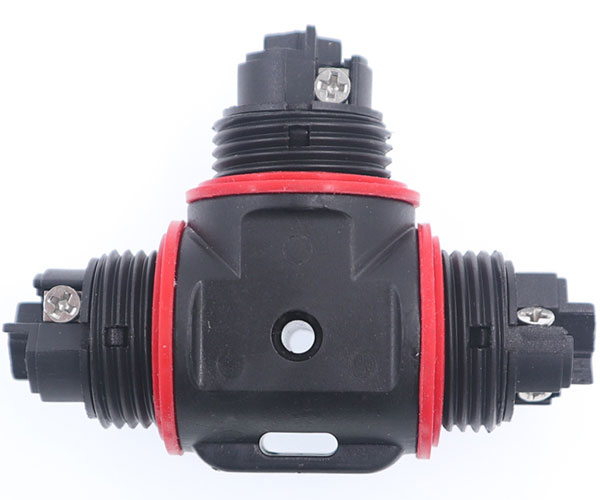

*he product is designed with a Φ3.2mm through hole, which is convenient for product fixing
|
|
*The actual picture after wiring is completed |
 |
| 3 Way Connectors applicable scenarios |
 |
 |
|
Wiring of outdoor street lights |
Landscape, fountain wiring |
 |
 |
|
Construction site power connection |
Water Pump Power Wiring |
T-connectors are mainly used for the connection of various outdoor lamps, landscape fountains, construction sites and water pumps and other circuits.
*If you need more information, you can find us through the contact information on the right side of this page.
