Support contactless electronic payments SIM Card Reader Writer

For high security in demanding corporate environments, HCCTG offers a number of solutions, ranging from desktop smart card readers to mobile smart card tokens that can be used with a variety of smart card-technology based credentials.
Product Details

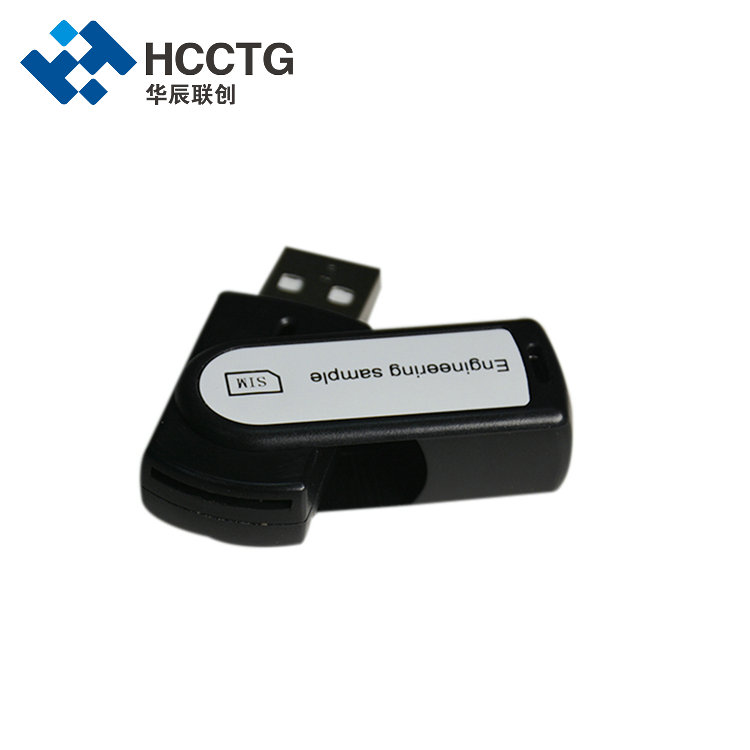

DCR35 offers users secure mobility for mobile desktop applications in PC connected mode and a contactless smart card token in autonomous mode for a host of contactless applications. DCR35 enable strong two-factor authentication, combining something users have — the token — with something they know — their PIN code.



Depending on the type of smart card chosen, the DCR35 Standard can be used for logging on to a PC, signing and encrypting documents or emails, and authenticating to secure web sites or the user’s company’s virtual private network (VPN). If a dual interface card is used, the token can double up as a contactless credential that can be used for physical access to buildings, contactless electronic payments, and contactless electronic ticketing for transportation and events.



Features

  • Slim,elegant
  • Design id-000 credential
  • contactless smart card
  • Token *USB 2.0 host interface
  • USB CCID compliant
  • Smartos™ powered




Specification

Host Interface

USB 2.0 full speed (12 Mbps)

Smart Card Interface

Supported Standards

ISO/IEC 7816 Part 1 to 4

Supported Tag ICs

All major ISO/IEC 7816 compliant Smart Card IC support

Smart Card Protocols

T=0, T=1

Smart Card Interface Speed

Up to 600 kbps (depending on card)

TA1=97

Smart Card Clock Frequency

ISO/IEC 7816 compliant; Operates up to 4.8 MHz

Supported Smart Card Types

5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C

Power to Smart Card

60mA in Class A; 55mA in Class B; 35mA in Class C

Smart Card Detection

Automatic power on/off

Short circuit protection

Card Size

ID-000 (SIM size)

Contact Type

Sliding Contact Socket (8 pin)

Contactless

Built-in antenna connected to C4 and C8 of smart card modules

Accepts dual interface “Plug in Type” cards in ID-000 (SIM) format

ISO 14443

Driver and Software

Power Supply

Bus-powered USB

Power Consumption

<20 mA with standard smart; <500 μA in Standby Mode

Dimensions

49 x 18.3 x 13 mm

Weight

9g

Operating Temperature Range

0° to 50° C (32° to 122° F)

Storage Temperature Range

-20° to 60°C (-4° to 140° F)

Operating Humidity Range

Up to 95% RH non-condensing

Connector

USB Type A Connector

Status Indicator

Green LED

Firmware

CCID

Firmware In-Field Upgradeable

No

Certifications and Compliances

Systems/Standards

ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® WHQL
