Multi-MPPT String Inverter for 1000 Vdc System
Environmental Protection Rating :
IP65Dimensions (W/H/D) in mm :
370*485*160Maximum Efficiency :
98.6%Max Output Current :
15A~18AMax AC apparent Power :
10000KVA~12000KVAAC Nominal Power :

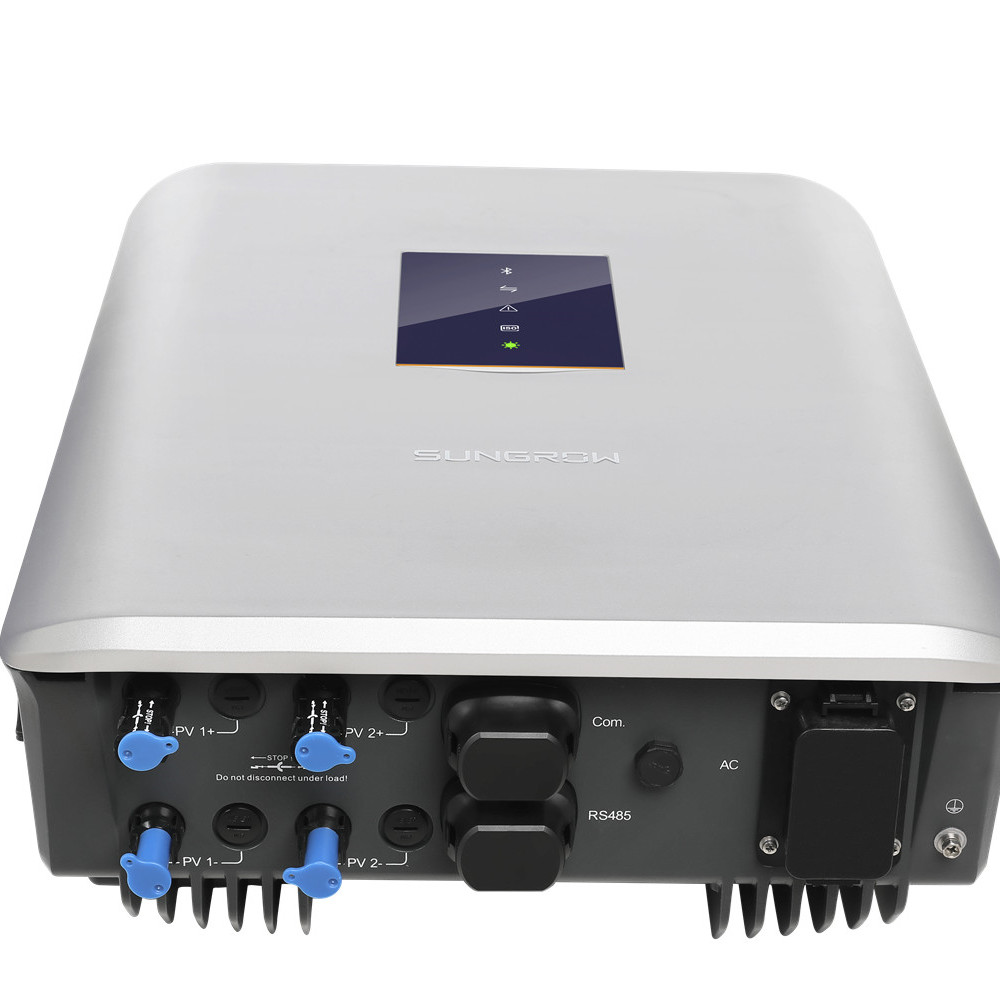

10000W~12000WSungrow Multi MPPT String Inverter 12000VA 10000VA Solar Inverter
Sungrow Power Supply Co., Ltd. is a China-based company principally engaged in the research, development and manufacture of photovoltaic solar inverters. This Sungrow Residential Single Phase Inverter is suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.
Sungrow 10kw SG10KTL-M/SG12KTL-M Specification:
Input (DC)
SG10KTL-M
SG12KTL-M
Max. PV input voltage
1100 V
Max. PV input voltage / Startup voltage
200 V / 250 V
Nominal input voltage
600 V
MPP voltage range
200 – 950 V
MPP voltage range for nominal power
470 – 850 V
550 – 850 V
No. of MPPTs
2
Max. number of PV strings per MPPT
1
Max. PV input current
22 A (11 A / 11 A)
Max. current for input connector
12:00 AM
Max. DC short-circuit current
24 A (12 A / 12 A )
Output (AC)
Nominal AC power (at 45˚C)
10000 W
12000 W
Max. AC output at PF=1 (at 45 ˚C)
10000 W
12000 W
Max. AC apparent power (at 45 ˚C)
10000 VA
12000 VA
Max. AC output current
15 A
18 A
Nominal AC voltage
3 / N / PE, 230 / 400 V
AC voltage range
270 – 480 V
Nominal grid frequency / Grid frequency range
50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
THD
< 3 % (at nominal power)
DC current injection
< 0.5 % In
Power factor at nominal powe / Adjustable power
factor
> 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / Connection phases
3/3
Efficiency
Max. efficiency / Euro. efficiency
98.6 % / 98.1 %
Protection
DC reverse connection protection
Yes
AC short-circuit protection
Yes
Leakage current protection
Yes
Grid monitoring
Yes
DC switch / AC switch
Yes / No
DC fuse
No
PV string current monitoring
Yes
Overvoltage protection
DC Type III / AC Type III
General Data
Dimensions (W*H*D)
370*485*160 mm
Weight
20 kg
Isolation method
Transformerless
Degree of protection
IP65
Night power consumption
< 2 W
Operating ambient temperature range
-25 to 60 ℃ (>
45℃ derating)
Allowable relative humidity range
(non-condensing)
0 – 100%
Cooling method
Natural cooling
Max. operating altitude
4000 m (> 3000 m derating)
Display / Communication
LED, Bluetooth + APP / RS485
DC connection type
MC4 (Max. 6 mm² )
AC connection type
Plug and play connector (Max. 6 mm² )
Compliance
CE, VDE0126-1-1/4105, EN62109-1/-2, G59/3
Grid support
Active & reactive power control and power ramp rate control
