STAUBLI MC4-Evo2 Solar Connector

Staubli mc4-Evo2 connector Authorized by staubli, original industry standard, suitable for all kinds of diameter solar cable.
Features and benefits
  • Safety Class :

    II
  • Ambient Temp :

    -40°C~+85°C(TÜV)
  • Rated Voltage :

    1500V DC
Product Details

STAUBLI MC4-Evo2 Solar Connector

Successfully connected to the global 150GW photovoltaic power station;The original industry standard;Waterproof IP68 rating;Owns TUV/UL/JET/CSA/CQC certification.

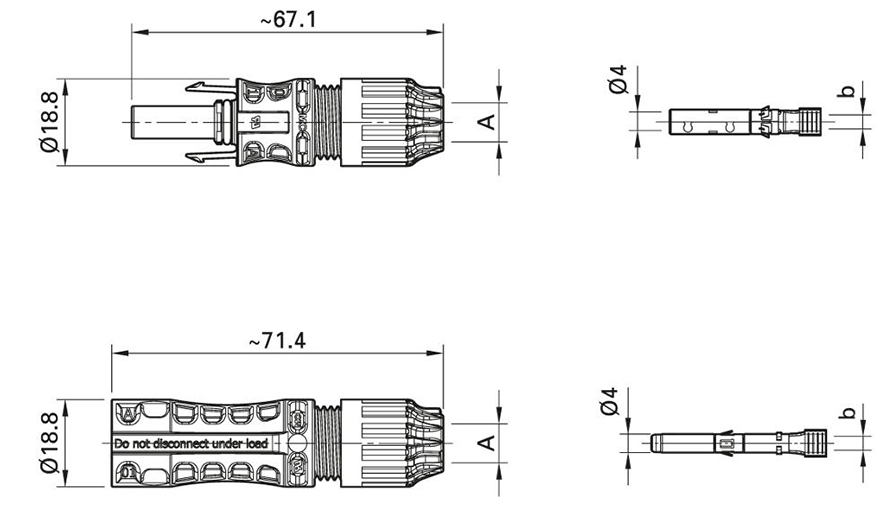

MC4-Evo2 connector


Product Description:

Item
MC4-Evo2 connector

Connector system

Ø4 mm

Rated voltage

1500V DC (TÜV)
1500V DC (UL)
1500V DC (JET)

Rated current

39A (2.5mm²/14AWG)

45A(4.0mm²/12AWG)
53A(6.0mm²/10AWG)
69A (10.0mm²/8AWG)

Rated impulse voltage

16kV (1500V)

Ambient temp range

-40°C~+85°C(TÜV/UL)

Upper limiting temp

115°C(TÜV)

Degree of protection, mated unmated

IP65/IP68 (1h/1m)
IP2X

Overvoltage category/Pollution degree

CATIII/3

Contact resistance of plug connectors

≤0.2mΏ

Safety class

II

Contact system

MULTILAM

Type of termination

Crimping

Contact material

copper ,tin plated

Insulation material

PA

Flame class

UL94-V0



Product Features:

------Internationally certified with IEC, UL, JET, TÜV;

------Approved for 1500 V DC (IEC, JET), 1500 V DC (UL) unrestricted access;

-----MULTILAM Technology, has proven the quality and durability several 100 million times since 2004;

-----Suited for all climatic environments thanks to resistance to UV, ammonia, and high IP class (IP68);

-----Available as a field and preassembled connector, standard crimping tools can be used;

-----Mating compatibility with MC4 connector family.


Packing & Delivery:


Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Staubli mc4 connector, solar cables, solar extension cables , PV connectors, solar panel system, solar energy panel for home etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,Mc4-Evo2 Pv Connectors in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
