STAUBLI MC4 branch PV connector

Staubli mc4 connector is dustproof, resistant to water and fire. Its simple structure greatly facilitates installation. You can join the cables of your outdoor lighting, as a path lamp, LED display panel, garden spot, etc.

Product Description:

Item	MC4 branch connector
Connector system	Ø4 mm
Rated voltage	1500V DC (UL)
Rated current	50A
Rated impulse voltage	12kV
Ambient temp range	-40°C~+85°C(UL)
Upper limiting temp	105°C(TÜV)
Degree of protection, mated  unmated	IP67 IP2X
Overvoltage category/Pollution degree	CATIII/2
Contact resistance of plug connectors	≤0.5mΏ
Safety class	II
Contact system	MULTILAM
Type of termination	Recessed
Contact material	copper ,tin plated
Insulation material	PC
Flame class	UL94-V0
Certification

Product Features:

------Outstanding reliability;

------Consistently low contact resistance;

------Low service cost & reduced downtime;

------Elimination of risks for hotspots & fire;

------Low power losses;

------Lifetime > 25 years;

------TÜV & UL double approval;

------Applicable for harsh environment outside;

------Use male & female self-block, easy to lock & unlock.

Packing & Delivery:

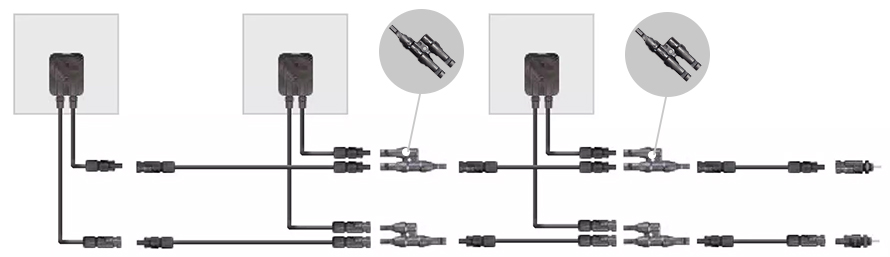

Application Scenario:

Global Exhibitions:

Company Profile:

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.

FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.

If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
