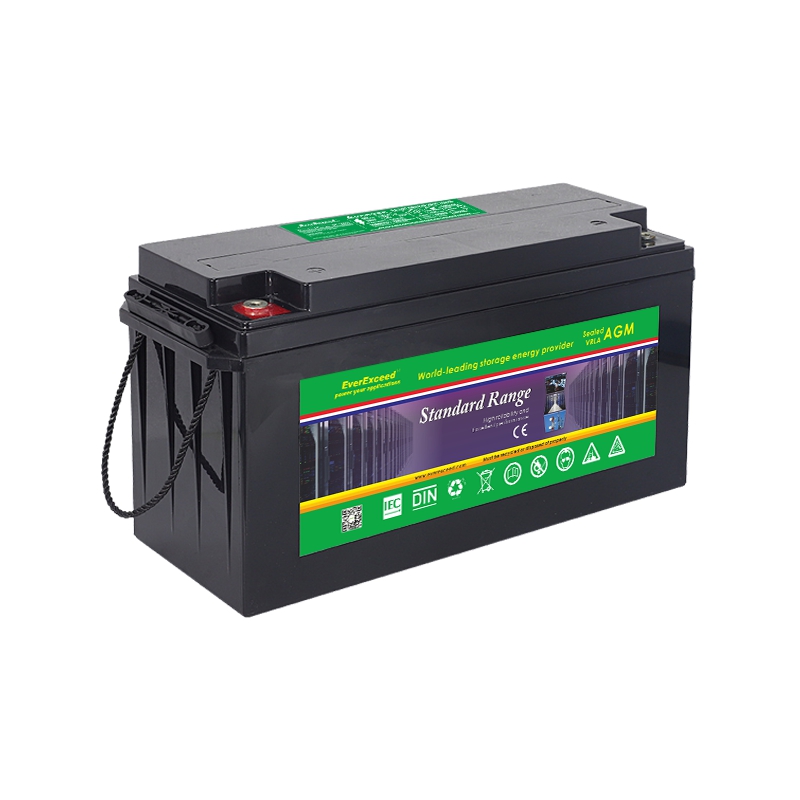

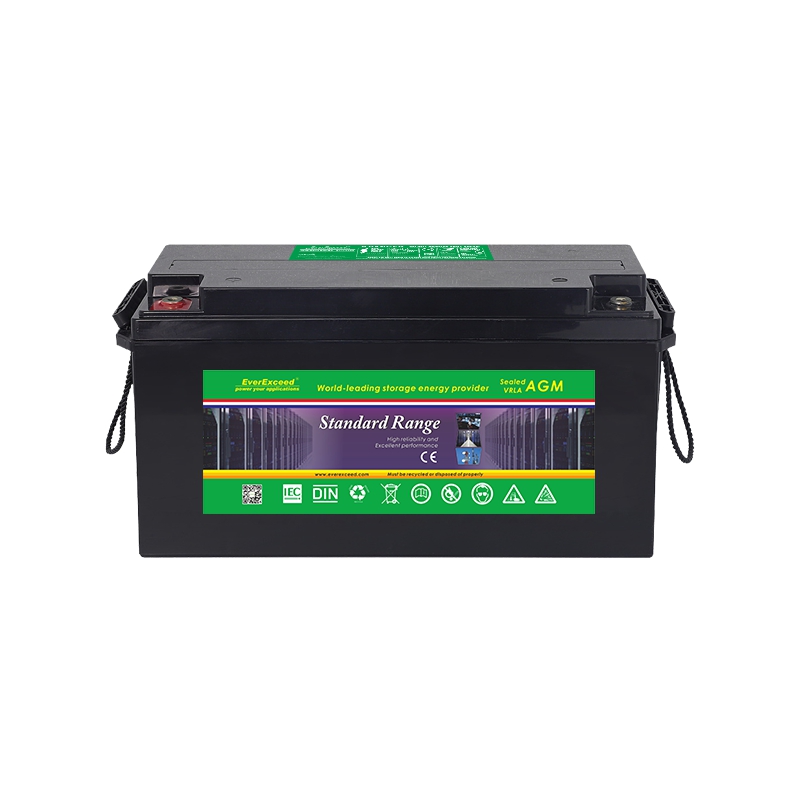

EverExceed top terminal Standard Range provides high performance and reliability in long duration discharge applications. Our development team combines the market's demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost effective battery solution for today's applications.
Certificates :
UL1989; IEC61427;IEC60896; CEOEM/ODM Service :
Yes, customizedRated capacity(Ah) :
18Ah-230AhRated voltage(V) :
12VModel :
ST SeriesUsage :
Electric Utility; Switchgear Control Power; Power Plant; Railroad ; Substation；Telecommunications; Distributed Power; UPS; Data Center; Microwave; Broadband
Technical features:
|
|
|
|
|
|
 |
|
 |
|
 |
|
Superior cycle performance |
|
Unique performance |
|
Low self-discharge rate |
| Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation |
|
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection. |
|
Less than 3% per month |
|
|
|
|
|
|
 |
|
 |
|
 |
| Wide operating temperature range |
|
High safety |
|
Long service life |
|
-40°C to +70°C |
|
More than 250 quality control checks. Reinforcing fiberglass mat & critical pressure control valve
|
|
Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F). |
|
|
|
|
|
|
 |
|
 |
|
 |
|
Assured quality |
|
Maintenance-free service life |
|
VRLA recombinant technology |
|
These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427 |
|
High Tin grid alloy reduces gassing and retards corrosion for maintenance free and longer battery life |
|
High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficienc |
|
|
|
|
|
|

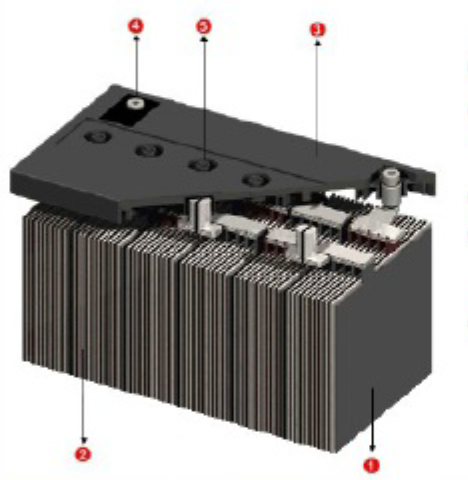

Construction:
 |
|
① Plates: Calcium / tin lead alloy, optimized for high corrosion resistance.
② Separator:Highly porous glass micro-fibre separator, optimized for low internal resistance;
③ Standard housing: reinforced ABS(UL94HB) container and cover; Optional housing: flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 20%;
④ Terminals:Silver plated copper female insert for easy and safe assembly & maintenance free connection with excellent conductivity;
⑤ Valve:Release gas in case of excess pressure & protects the cell against atmosphere.
|
|
Applications
• Electric Utility; • Switchgear Control Power; • Power Plant; • Railroad ; • Substation
• Telecommunications; • Distributed Power; • UPS; • Data Center; • Microwave; • Broadband
