1-1/8" Square Bore Bearings ST208-1 1/8,are produce with Chrome steel ,we have 165 PCS in stock now .
1-1/8" Square Bore Bearings ST208-1 1/8,are produce with Chrome steel ,we have 165 PCS in stock now .
Part No.:DHU 1 1/8S-208,FD208R1-1/8 , ST208 1-1/8"

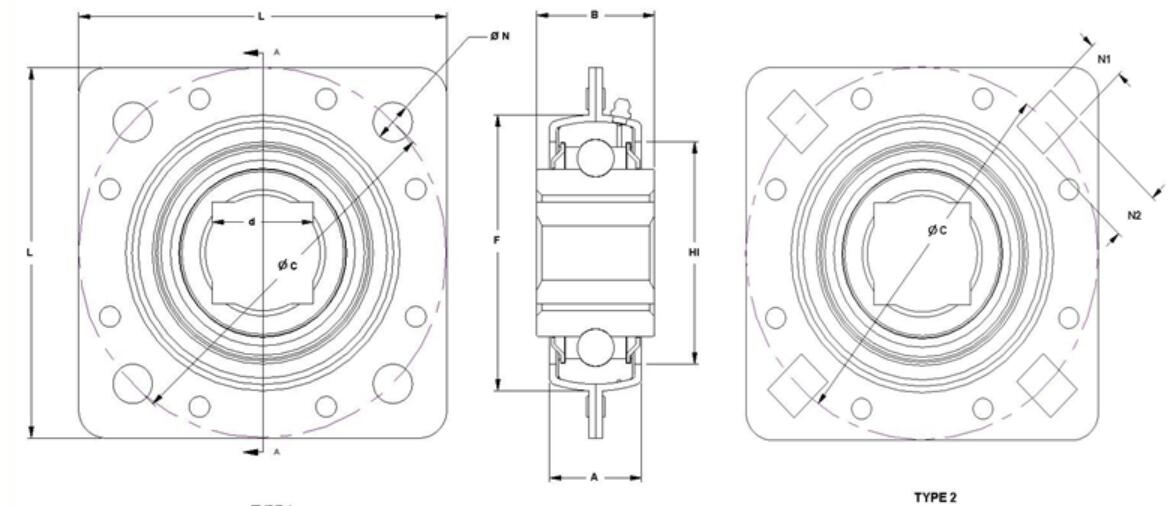

DIMENSIONS:
BORE: 1-1/8" SQUARE
C: 4.687
L: 4.764
N1: 0.531
N2: 0.531
Weight: 2.90 Lbs.
 |
We Also Can Produce other high quality Disc Harrow Bearing:
| ST211-1 3/4 | 1–2 | 1.78 | 5.5 | 2.189 | 1.827 | 0.354 | 2.854 | 4.449 | 5.5 | 0.531 |
| 45.21 | 139.7 | 55.6 | 46.4 | 9 | 72.5 | 113 | 139.7 | 13.5 | ||
| ST211-2 3/16 | 1–2 | 2.188 | 5.5 | 2.189 | 1.827 | 0.354 | 2.854 | 4.449 | 5.5 | 0.531 |
| 55.58 | 139.7 | 55.6 | 46.4 | 9 | 72.5 | 113 | 139.7 | 13.5 | ||
| ST211-1 15/16 | 1–2 | 1.939 | 5.5 | 2.752 | 1.827 | 0.354 | 2.854 | 4.449 | 5.5 | 0.531 |
| 49.24 | 139.7 | 69.9 | 46.4 | 9 | 72.5 | 113 | 139.7 | 13.5 | ||
| ST740 | 1 | 2.188 | 5.5 | 2.189 | 1.827 | 0.354 | 2.854 | 4.449 | 5.5 | 0.516 |
| 55.58 | 139.7 | 55.6 | 46.4 | 9 | 72.5 | 113 | 139.7 | 13.1 | ||
| ST208-1R5BC | 2 | 1.043 | 5 | 1.654 | 1.378 | 0.276 | 2.165 | 3.622 | 5 | |
| 26.5 | 127 | 42 | 35 | 7 | 55 | 92 | 127 | |||
| ST209-1 1/8 | 1–2 | 1.18 | 5 | 1.673 | 1.685 | 0.276 | 2.343 | 3.839 | 5 | 0.531 |
| 29.97 | 127 | 42.5 | 42.8 | 7 | 59.5 | 97.5 | 127 | 13.5 | ||
| ST209-30S | 1–2 | 1.234 | 5 | 1.673 | 1.685 | 0.276 | 2.343 | 3.839 | 5 | 0.531 |
| 31.35 | 127 | 42.5 | 42.8 | 7 | 59.5 | 97.5 | 127 | 13.5 | ||
| ST209-1 1/4 | 1–2 | 1.299 | 5 | 1.673 | 1.685 | 0.276 | 2.343 | 3.839 | 5 | 0.531 |
| 33 | 127 | 42.5 | 42.8 | 7 | 59.5 | 97.5 | 127 | 13.5 | ||
| ST209-40R | 1–2 | 1.609 | 5 | 1.673 | 1.685 | 0.276 | 2.343 | 3.839 | 5 | 0.531 |
| 40.88 | 127 | 42.5 | 42.8 | 7 | 59.5 | 97.5 | 127 | 13.5 | ||
| FD-211-RM | 1–2 | 1.531 | 5.5 | 2 | 1.827 | 0.354 | 2.874 | 4.469 | 5.5 | 0.531 |
| 38.89 | 139.7 | 50.8 | 46.4 | 9 | 73 | 113.5 | 139.7 | 13.5 | ||
| ST211-40S | 2 | 1.609 | 5.5 | 2 | 1.827 | 0.354 | 2.874 | 4.469 | 5.5 | 0.531 |
| 40.88 | 139.7 | 50.8 | 46.4 | 9 | 73 | 113.5 | 139.7 | 13.5 | ||
| DHU 40S-211 | 2 | 1.609 | 5.5 | 2 | 1.827 | 0.354 | 2.874 | 4.469 | 5.5 | |
| 40.88 | 139.7 | 50.8 | 46.4 | 9 | 73 | 113.5 | 139.7 | |||
| ST208-1N | 2 | 1.024 | 4.764 | 1.503 | 1.378 | 0.276 | 2.165 | 3.622 | 4.686 | |
| 26 | 121 | 38.18 | 35 | 7 | 55 | 92 | 119.02 | |||
| ST208-1 1/8 | 2 | 1.18 | 4.764 | 1.503 | 1.378 | 0.276 | 2.165 | 3.622 | 4.686 | |
| 29.97 | 121 | 38.18 | 35 | 7 | 55 | 92 | 119.02 | |||
| ST208-1 1/8G | 2 | 1.18 | 4.764 | 1.503 | 1.378 | 0.276 | 2.165 | 3.622 | 4.686 | |
| 29.97 | 121 | 38.18 | 35 | 7 | 55 | 92 | 119.02 | |||
| ST208-1 42LTB | 2 | 1.024 | 4.764 | 1.654 | 1.378 | 0.276 | 2.165 | 3.622 | 4.686 | |
Application :
Disc bearing can be used in agricultural machinery ,such as for disc harrows, planters, mowers, rakes, all types of balers, tillage, seeding and forage harvester equipment, combines, cotton pickers/stripers, and other agricultural equipment like silo unloaders and grain elevators.
Application For : Modern, Monroe Tuffline, IHC, King Kutter, and Howse
