Square panel mount circular metal connector H17

Square buckle plug connector, nickel-plated shell surface. Fast and convenient connection, suitable for radio broadcasting, recording, movie light electronic equipment



Product Details

Square panel mount circular metal connector H17


Feature of metal electrical connectors


  • Zinc alloy shell, nickel plated on the outside. Anti-corrosion, not easy to rust, good pressure resistance, strong and durable

  • Silver-plated copper tentacles. Thickened pins, excellent electrical conductivity, long life

  • Insulating bakelite. Insulation and flame retardant, safe and reliable

  • Convenient connection head. Fixed by two screws, stable and firm, easy to disassemble and assemble


Specification of square metal connector


No. of contacts 2P 3P 4P 5P
Pin arrangement



Rated current/voltage 20 20 20 20
Contact number 2 3 4 5
Operation limit voltage(AC.V.rms) 500 500 500 500
Withstanding voltage(AC.V.rms) 1 minute 1500 1500 1500 1500
Insulation resistance(MΩ) at DC 500V > 500

> 500

> 500

> 500

Contact resistance(mΩ) at DC 1A < 1 < 1 < 1 < 1

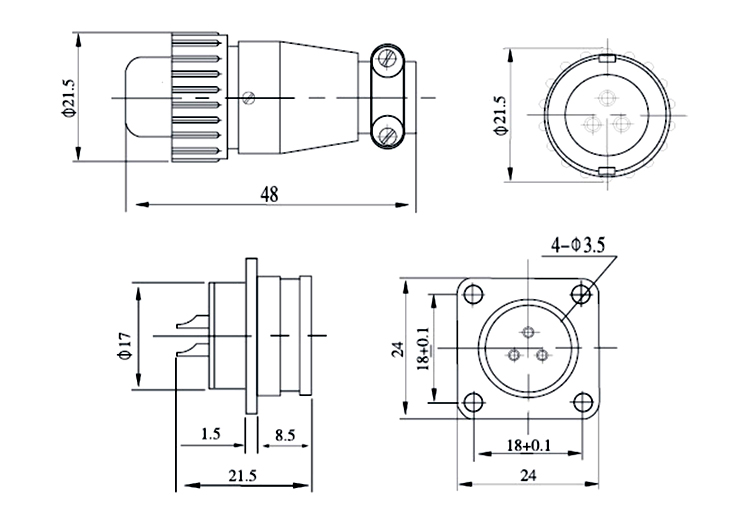

Drawing of H17 plug and socket
