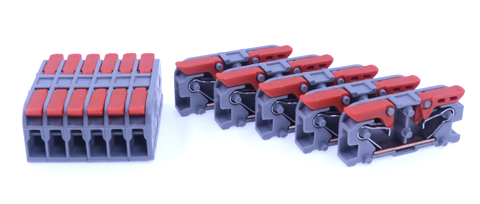

Spring Lever Wire Connectors Spring Lever Connectors 3 Terminal 32A

The Newly Designed Lever Crimp Connector Of The Internal Structure Can Be Spliced In Multiple Positions. A Single Product Can Have 1-In, 1-Out And 1-In And Multiple-Out Structures At The Same Time, And Can Be Used With Rail Brackets.

Product Details
  • The New Internal Design, The Lever Opening And Closing Micro Resistance, Frequent Operation Fingertips Without Pain;
  • Splicable Structure, From 1 To Infinite Splicing;
  • A Parallel Device Can Be Added To Become A 1-In-Multiple-Out Structure;
  • A Single Multi-Position Product Can Have 1 Input, 1 Output And 1 Input And Multiple Output At The Same Time, And Can Be Distinguished By Lever Color;
  • The Connection Is Firmer, And It Is Not Easy To Loosen After Wiring;
  • Optional Screw Fixing Brackets And Rail Brackets
  • Lever Color Can Be Customized;
  • The wrench is available in a variety of colors to make it easier to distinguish the electrodes;



Specification of Inline Splice Connectors
Product name:  Lever wiring Connectors
Wire range:

 Solid wire: 0.08-4.0mm2

 Stranded wire:0.08-2.5mm

Material:

 Housing:PA66 UL94V-0

 Conductor: Brass with tin-plated

 Spring: Stainless stell

Voltage:  400V
Current:  32A


Structural Features Of Spring Lever Terminal Block



The Holes Can Be Spliced Indefinitely


New Mechanical Structure,

No Resistance For Lever Opening And Closing




Thickened Conductive Strips Have Better Conductivity

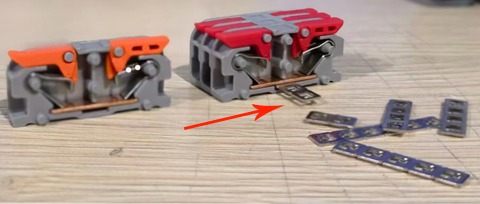

Adding Parallel Strips Can Make One Input Multiple Outputs




A Single Product Can Be Made Into 1-In 1-Out

Or 1-In And Multiple-Out, And Differentiated By Lever Color


The Tested Pulling Force Value Is About 200N,

The Clamping Force Is Better Than The Old Product
