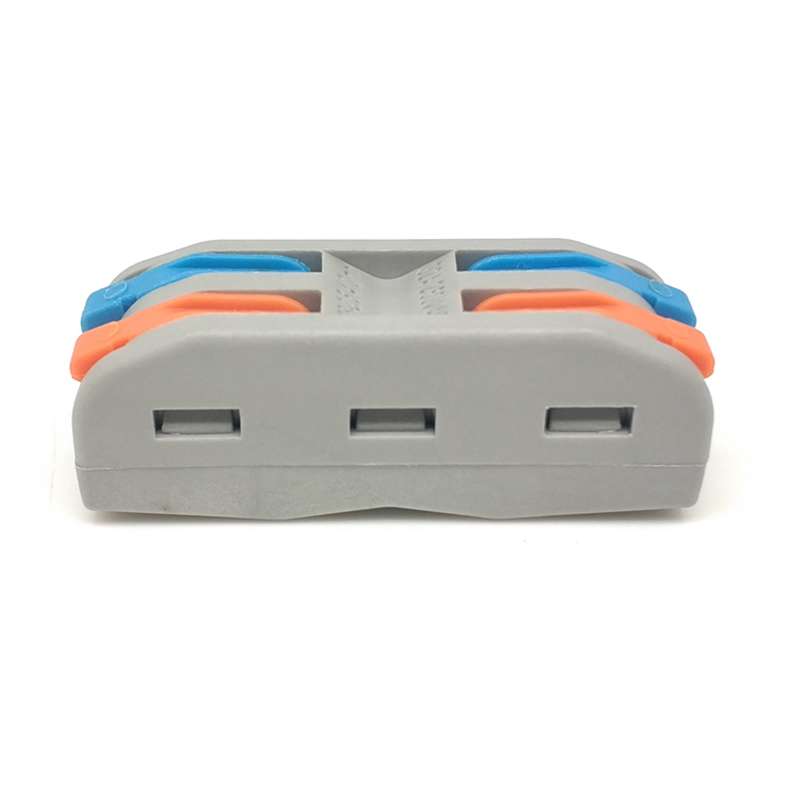

SPL-2 wire to wire connector PCT-2-2 compact connecting terminal

SPL-2 wire to wire connector are widely used in lighting fixtures.With fast connect and disconnection solution

Product Details

PL-2 wire to wire connector PCT-2-2 compact connecting terminal


 Features of Terminal Strip Connectors

  • It will not be loose and leakage caused by aging of traditional electrical tape;
  • Safer than traditional electrical tape, Protection against electrical shock.
  • Spring crimping structure, can be reused;
  • The wrench is available in a variety of colors to make it easier to distinguish the electrodes;


Size and Number of Electrodes for Wire Terminals and Connectors

  • Quick connect electrical connectors size is 39.5mm*13.5mm*14.5mm

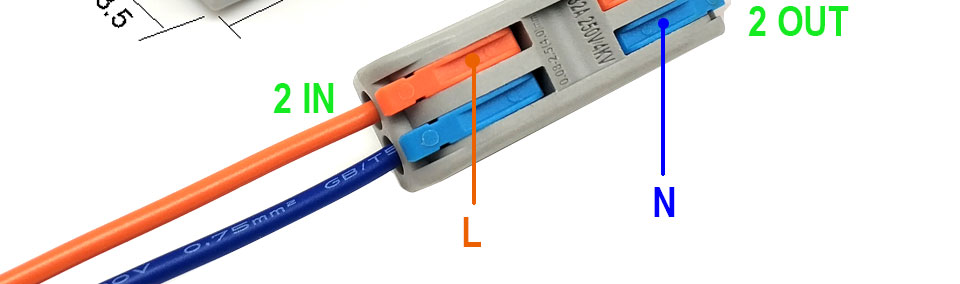

  • There are two electrodes, 2 in 2 out
  • The color of the handle can be customized to better distinguish the electrode polarit


Specification of Inline Splice Connectors
Product name:  Quick connect electrical connectors
Wire range:

 Solid wire: 0.08-4.0mm2

 Stranded wire:0.08-2.5mm

Material:

 Housing:PA66 UL94V-0

 Conductor: Brass with tin-plated

 Spring: Stainless stell

Voltage:  400V
Current:  32A


Application of Inline Cable Connectors




Indoor LED light power wiring

Power connection of fan and motor
Mainly used in indoor LED light power wiring, wire connection of junction box, etc.







222-2-3
222-2-4
222-2-5

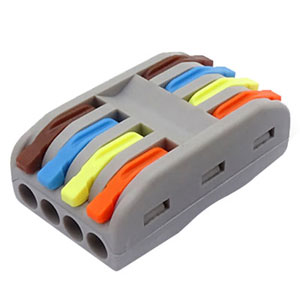

More Similar Wire Connectors

Wago 222 connectorWago 222 connector
