Soldering type dc battery connector xt90 series

Equivalent to amass connectors, XT90 conenctor perfect for applications up to 90A constant. It can be sold in pairs(female + male) or a single side(female or male).

Request A Quote

Product Details

Soldering type dc battery connector xt90 series

Features For XT90 Battery Connector

Male and female design, female end connector battery (power supply), male end connected to load;
The contacts are gold-plated for better conductivity;
The opening of the tail welding cup is reversed, making welding more convenient;
The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
After the XT90 connector is connected, it fits tightly, and it is not easy to loosen during the working process;

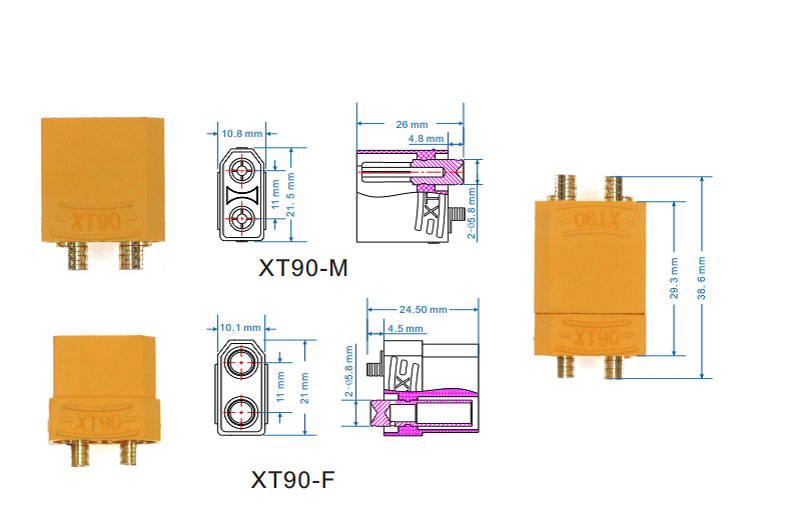

Specification Of XT90 Series Connector
Item NO.:	XT90	Connector CR:	0.30 MΩ
Color:	Yellow	RV:	DC 500 V
Metal Material:	Brass Gold Plated	RC:	40 A
Plastic Material:	PA66	MC:	90 A
FR level:	UL94 V0	Plug times:	1000 times
Recommend used:	Battery/Controller/Charger	Cable Spec:	10AWG
Product description:	High current connector	Temperature:	-20°C to 120°C

Application

XT90 connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can provide customized wiring harness services.
