Solar off-grid energy storage inverter 3kVA 5kVA

Solar off-grid energy storage inverter is integrated with a MPPT solar charge controller, a high frequency pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries. Solar off-grid energy storage inverter can be connected in parallel

Product Details


Solar off-grid energy storage inverter is integrated with a MPPT solar charge controller, a high frequency pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries.
Solar off-grid energy storage inverter can be connected in parallel


Features:
1.Rated power 3.5KW / 5KW, power factor 1
2.Built-in MPPT, MPPT voltage range 120V~430Vdc
3.Pure sine wave AC output
4.Solar and utility joint to power the loads

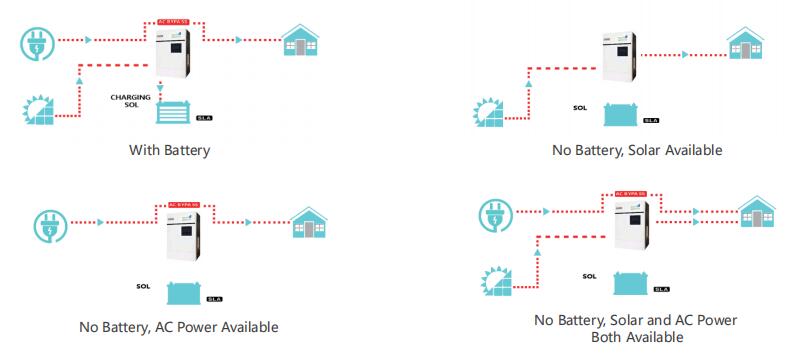

5.With the ability to work with or without battery
6.Parallel operation up to 6 units
7.WIFI/ GPRS remote monitoring
8.CAN/ RS485 communication for BMS




Mode
JNF3K5HF-B-V1
JNF5KHF-B-V1
System


Rated power
3500VA/3500W
5000VA/5000W
System DC voltage
48VDC
48VDC
Parallel option
Yes, up to 6 units
Yes, up to 6 units
Monitoring option
WiFi or GPRS
WiFi or GPRS
Inverter Output


AC voltage
220V-230V-240VAC
220V-230V-240VAC
Surge power
7000VA
10000VA
Peak efficiency
93%
93%
Transfertime
10ms (For Personal Computeis); 20ms(For Home Appliances)
10ms (For Personal Computeis); 20ms(For Home Appliances)
Waveform
Pure Sine Wave
Pure Sine Wave
Solar Charger& AC Charger


Max. PV array open circuit voltage
450Vdc
450Vdc
Max. PV array power
4500W
6000W
Operating voltage MPPT range
120~430Vdc
120~430Vdc
Battery overcharge protection
60Vdc
60Vdc
Max. solar charge current
80A
100A
Max. AC charge current
60A
80A
Max. charge current
80A
100A
Physical


Dimension
470x320x135mm
470x320x135mm
Net weight
11.5Kg
11.5Kg
Communication interface
USB/CAN/RS485
USB/CAN/RS485
Environment


Humidity
5% to 95% Relative Humidity (non-condensing)
5% to 95% Relative Humidity (non-condensing)
Operating temperature
0℃~50℃
0℃~50℃
Storage
-15℃~60℃
-15℃~60℃
