1D/2D Code Reader Scanner Module for Access Control
The appearance of the product adopts the standard 86 box industry standard. It supports scan code and card reading, high speed recognition. You can open the door without contact, safer and more convenient.
Besides, it can auto sensing, LED fill light, can recognize even in dim environment, quick response and high recognition accuracy. At present, it is widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, administrative hall access control management, supporting gates, access control, visitor machines, smart homes, etc. It is a perfect upgrade for traditional credit card systems in various industries.
Specification
|
Card reader type |
HM30-ID |
HM30-IC |
|
EM card |
Mifare card |
|
|
Communication method |
Wiegand 26/34+RS485,Wiegand 26/34+RS232,Wiegand 26/34+TTL
|
|
|
Reading direction (bar code) |
Angle 45° with the lens as the center point |
|
|
Operating Voltage |
8-12V |
|
|

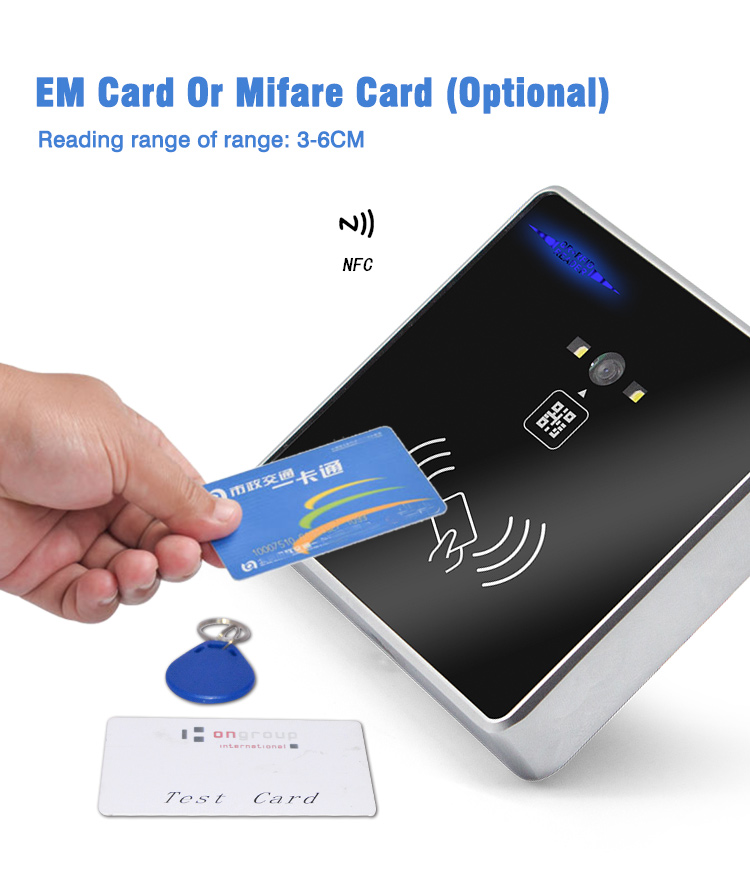

Card reading distance (card) |
3~6CM |
|
|
Reading distance (QR code) |
0-20cm |
|
|
Working humidity |
10%~90% |
|
|
Operating system |
WindowsXP/7/8/10), Linux |
|
|
Indicator light |
Blue work light, green feedback light |
|
|
Barcode type |
QR, one/two-dimensional code |
|
|
Decoding mode |
Image decoding |
|
|
Scan code characteristics |
Automatic induction, buzzer prompt |
|
|
Working current |
800mA |
|
|
Reading speed |
＜200ms |
|
|
Material quality |
Zinc alloy frame + acrylic panel |
|
|
Operating temperature |
-20℃~70℃ |
|
|
Size |
86mm×86mm×18mm |
|
|
Weight |
150G |
|
|
Other |
Light:Standby state: blue light is always on; card reading/scan code state: green light is on for about 0.5s Built-in horn: buzzer |
|
