Single Phase Three Phases MPPT On-Grid Inverter

Solar photovoltaic on-grid solar power inverter for home use. It has small size, light weight, simple installation, convenient maintenance feature.
Features and benefits
  • Warranty :

    5years/10years
  • Certificate :

    TUV,UL,IEC,CE,SGS
Product Details

Greystone US/EU standard double mppt design solar photovoltaic grid-tied inverter


Product Details

  • All aluminum die casting, external inductor, reasonable heat dissipation design, IP65 protection grade;
  • T-type three-level design, less power semiconductor devices, lower loss, saving space, improve reliability;
  • Dual DSP control, ultra-low starting voltage, ultra-wide operating voltage range, higher conversion efficiency, up to 98.3%;
  • Small size, light weight, simple installation, convenient maintenance;

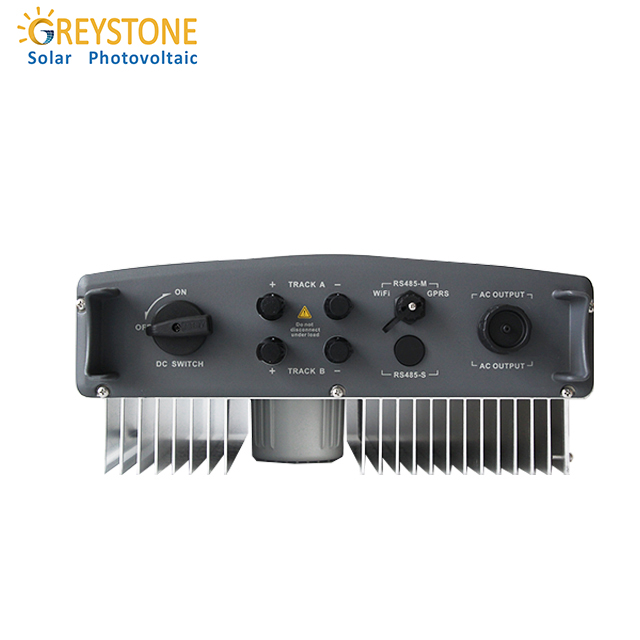

  • Both sides of the bottom metal support design, effectively prevent the direct/AC terminal, communication interface damage in the process of handling, installation or disassembly;



Working Diagrams

4-35KW/40-50KW/50-80KW


Technical Parameters

Model GSI4KTR
GSI5KTR
GSI6KTR
GSI8KTR
GSI10KTR
INPUT(DC)
Max.DC input power(W)
4800
5700
7200
9000
11000
Max DC input voltage(V)
900 1000
Starting voltage(V)/Min.operation voltage(V) 220/180
220/150
MPPT range(V) 200-800/580
180-800/610
Quantity of MPPT/String per MPPT 2/1 2/1 2/1
Max.DC current(A)per MPPT x Quantity of MPPT 10x2 10x2 12x2 12.5x2
OUTPUT(AC)
Rated output power(w) 4000 5000 6000 8000 10000
Max.AC output current(A) 6.4 8 9.6 12.6 14
Max.output power (w)(PF=1) 4000 5000 6000 8000 10000
Max.apparent power(VA) 4000 5000 6000 8000 10000
Power factor -0.8~+0.8(adjustable)
THDi <3%(at rated power)
Nominal output voltage(V)/frequency(HZ) 230/400V;220/380v,3L+N+PE/3L+PE,50/60
EFFICIENCY
Max.efficiency 98.1% 98.1% 98.2% 98.3% 98.3%
Euro-efficiency 97.5%
97.6%
97.7%
97.8% 97.8%
MPPT efficiency 99.9%
PROTECTION
Protection DC breaker,AC short-circuit protection,Over current protection,Over voltage protection,Isolation protection,RCD,Surge protection,Anti-island protection,Over-temperature protection,Ground fault monitoring,etc
GENERAL DATA
Display 2.0 inches LCD display,support backlit display
LCD language English,Chinese,German,Dutch
Communication interface RS485(standard);WiFi/Ethemet(Optional)
Cooling method Natural cooling Smart cooling
Protection degree IP65
Night self consumption(W) <1
Topology Transformerless
Operating temperature range -25℃~+60℃(derate after 45℃)
Relative humidity 0-100%
Dimension(HxWxDmm) 530x360x150 575x360x150
Weight(kg) 20
23
Grid qualification
IEC 61727(1EC62116),IEC60068-2-1:2007,1EC60068-22:2007.1EC60068-2-14:2009,1EC60068-2-30:2005,IEC
61683:1999,VDE0126-1-1,VDE-AR-N4105, G59/3,,C10/11,ASINZS 4777.2:2015,NB/T 32004-2013,PEA.ZVR;EN50549-1
Safety certifications/EMC certifications
IEC62109-1:2010,1EC62109-2:2011,EN61000-6-2:2005,EN61000-6-3:2007A1/:2011
Factory warranty(years) 5(standard)/10(optional)


Monitoring Equipment


  • External light indicator,logging status at a glance.
  • Plug and play,powered by inverter,no external power needed,easy to install.
  • Independent from inverter to protect parts inside inverter,eliminate potential problems.
  • Water-proof design,resistant to bad weather,enhance stability.
  • External design,easier to replace faulty equipment.
  • End user can monitor yields at any time with SOLARMAN APP.
