This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine , which is perfect for off grid back up power and self-consumption applications.
Warranty :
5YearsCertificate :
AllSize :
485*330*135mmOutput Type :
Single PhasePower range :
3500W-5500W
Single Phase 5KW Off Grid Solar Inverter
Growatt SPF Series WPV Solar Inverter Off Grid 3000W 5000W MPP Single Phase Off Grid Inverter
SPF 3000~5000TL HVM—WPV
Product Detail :
|
Datasheet
|
SPF 3000TL HVM-WPV
|
SPF 5000TL HVM-WPV
|
|
Battery voltage
|
24VDC
|
48VDC
|
|
INVERTER OUTPUT
|
||
|
RATED POWER
|
3000VA/3000W
|
5000VA/5000W
|
|
Parallel Capability
|
Optional/ support 6 units
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
6000VA
|
10000VA
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10 ms (For Personal Computers);
20 ms (For Home Appliances)
|
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
3500W
|
5500W
|
|
MPPT Range @ Operating Voltage
|
120VDC-430VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
Maximum Solar Charge Current
|
100A
|
|
|
Maximum Efficiency
|
97%
|
|
|
AC CHARGER
|
||
|
Charge Current
|
80A
|
|
|
AC Input Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
PHYSICAL
|
||
|
Dimension (D/W/H) in mm
|
485/330/135
|
|
|
Net Weight (kgs)
|
12
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
0°C- 55°C
|
|
|
Storage Temperature
|
-15°C -60°C
|
|
Category : Solar Inverter

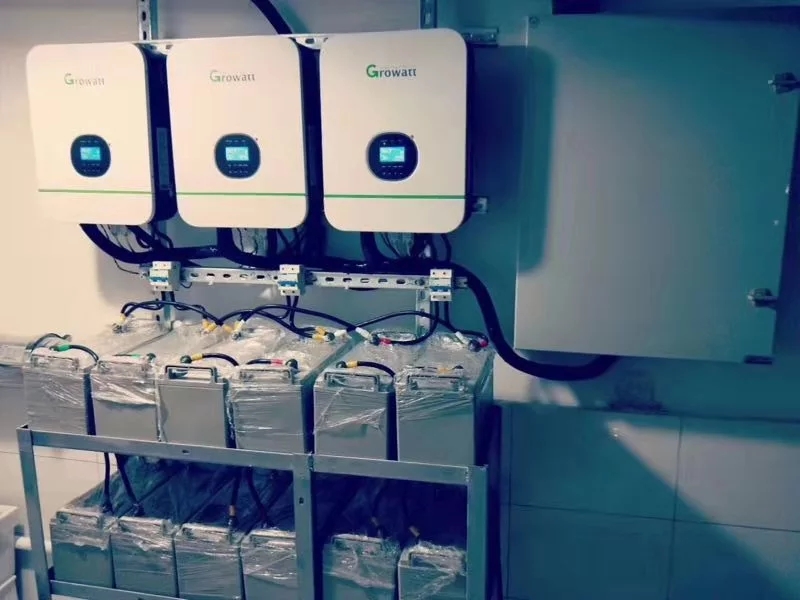

Product Application :

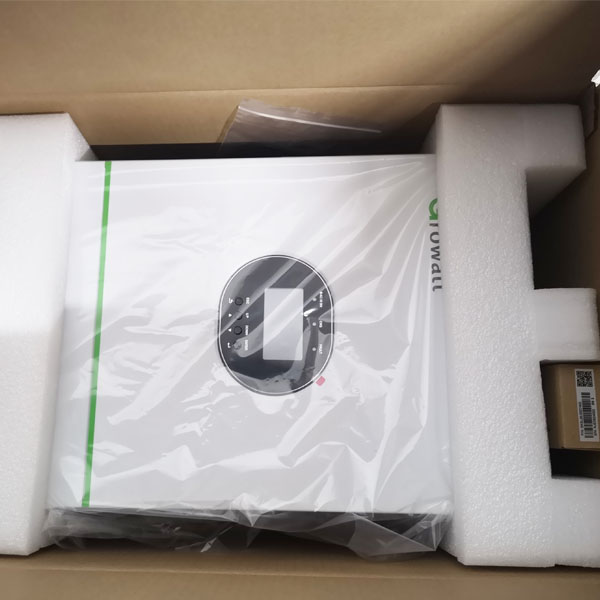

Package& Delivery :
Safety Carton Box packing with wooden pallet.
32pcs per pallet as standard or as per order.
Delivery by Express to door/ Air to airport/ Sea to port/ Railroad to door or railsation.
Q & A :
Q: How does an off grid inverter work?
A: A grid-tied inverter takes DC power from solar panels, turns it into AC, and sends it into the grid for credit. An off-grid inverter needs a battery bank to function. Here's how it works: your solar panels feed DC power into the batteries.
