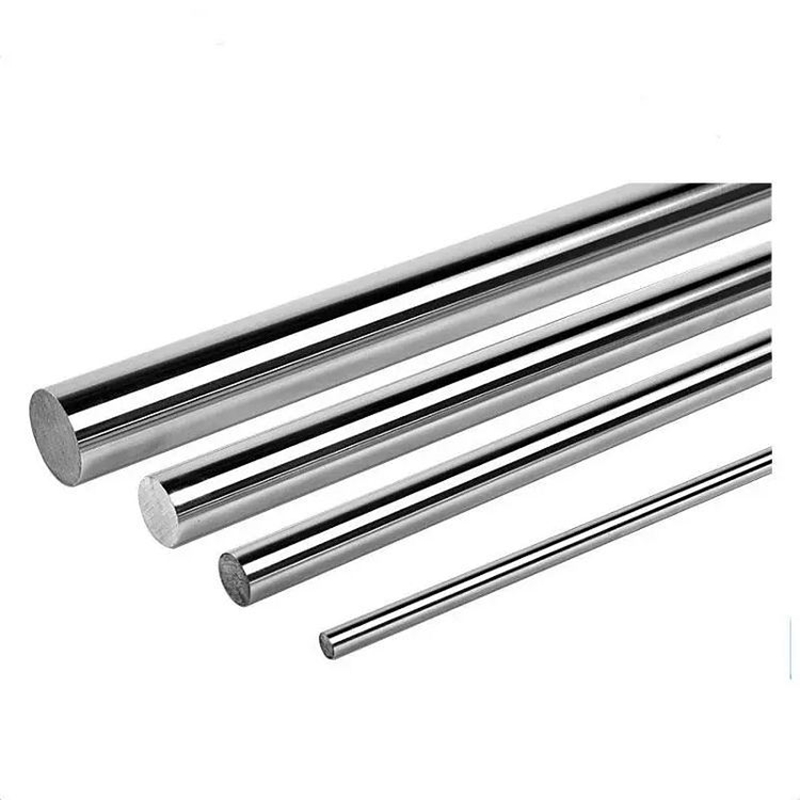

SF10 10mm Hardened Rod Linear Motion Slide Shaft

Linear Motion Slide Shaft is treated by special grinding and hard chrome plating technology, and then mirror polished. The surface is smooth, without cracks, and even with no bubbles.

Product Details


SF10 10mm Hardened Rod Linear Motion Slide Shaft


SF10 10mm Hardened Rod Linear Motion Slide Shaft is hardened, ground and polished and features high precision quality. Straightness, roughness, cylindricality, surface finish and hardness are very important when used with linear motion slide bearings. Slide shafts are manufactured with these points in mind to maintain precision performance under any operating conditions. These slide shafts will satisfactorily support rotary, linear, linear rotary complex, as well as simple linear motion applications.


Model NO.: SF10

Linear shaft materical: Gcr15, SUS440C steel ( CK45)

Hardness: HRC 62+2 (SUS440C: HRC58)

Surface Hard-thickness: 0.8s-1.6s

Straightness: 80μ M/1000mm

Roundness: Not over 3.0μ M(Rmax)

Diameter:3-120mm

Length:100mm-6000mm


Application:

Engraving machines, Packing machine, Medical machine, Food machine Textile machine

High speed Machinery of CNC machinery

Window machines

Semi-conductor Equipment

High speed machinery


Basic process:

The shafts are made by customized design, according to drawing.

Sample make and check


  • model SF10
  • Shaft Diameter
    d
    mm
    φ10
    Tolerance
    μm
    -0.005/-0.014
  • Dimensions(mm)
    100
    200
    300
    400
    500
    600
    700
    800
    1000
    1200
    1300
    1500
    2000 -

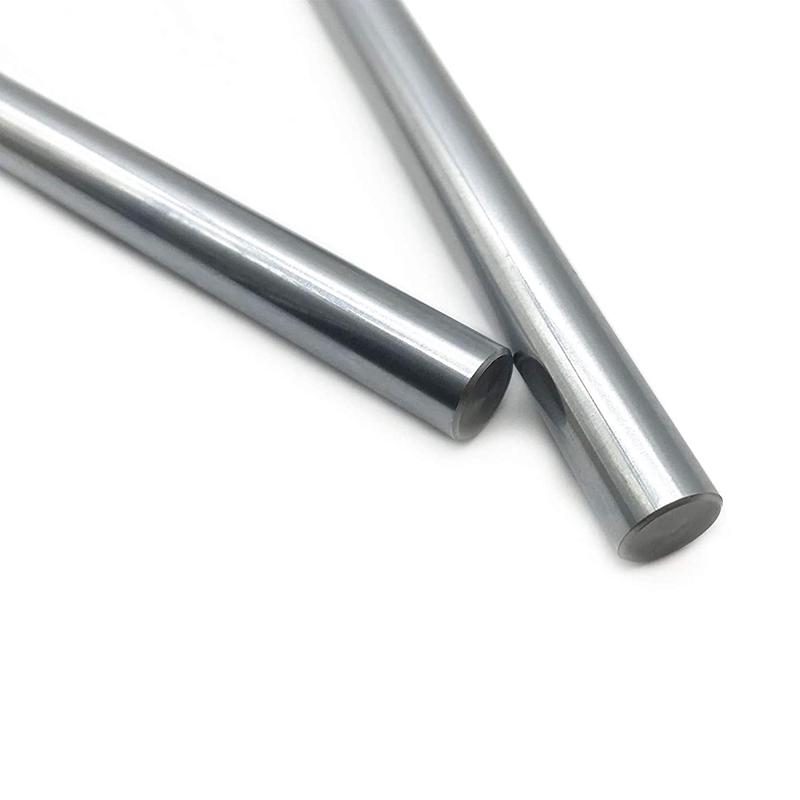

  • Product Display





    Packing Solutions


    Industry Packing + export carton + pallet/wooden box

    Commercial Individual Packing - VCI bag + paper box (white or OEM colorful) + export carton + pallet/wooden box


    Delivery Solutions


    By Sea for mass cargo (GW > 300KGS)

    By Air (GW between 100KGS - 300 KGS)

    By Express, such as DHL, TNT, Fedex and UPS for small cargo ( GW < 100KGS)


    Advantages of working with PQB Bearings Company


    Buying at a profit. Direct manufacturer always offer you products with lowest prices;

    Fast shipping. Industrial cluster advantages make our material purchase and producing efficiently. Truck and rail logistics enable us to deliver goods to the port as fast as possible;

    Quality guarantee --- guarantee 100% full quality inspection before delivery;

    Small order accept;

    OEM service offered.
