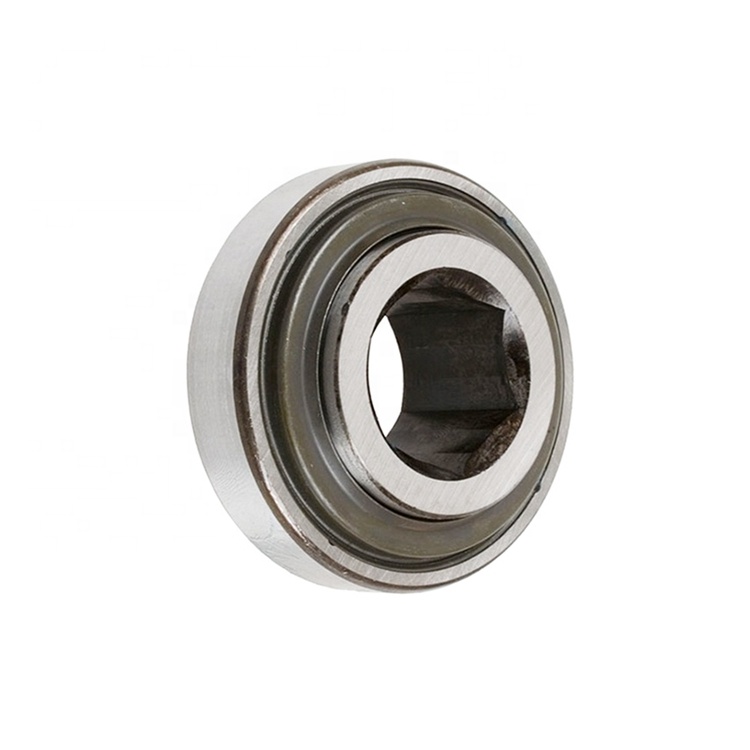

206KPP4 Agriculture Bearing with Chrome Steel material ,Hex Bore, Two Triple Lip Seals, the dimensions is 1" ID, 2.4409" Cylindrical OD, 0.6299" Inner Ring Width, 1.0600".
206KPP4 Agriculture Bearing with Chrome Steel material ,Hex Bore, Two Triple Lip Seals, the dimensions is 1" ID, 2.4409" Cylindrical OD, 0.6299" Inner Ring Width, 1.0600".
206KPP4 Bearing Introduction :
|
|
|
Bearing Number： 206KPP4
Size (mm)： 25.425 x 62 x 26.924 / 16
Material： GCr15 Chrome steel
Precision： P0
Clearence： C0
Cage： Steel cage
Weight (Kg)： 0.213
Country of Origin： CHINA
MKL BEARING is a agricultural machinery factory,we can produce other farm machinery parts:
| Bearing Number | Type | Hex Shaft Size | A | D | Bi | Be | Load Ratings N | Wt. | |
| mm | mm | mm | mm | Dynamic | Static | kg | |||
| 205KPP2 | 3 | 7/8" | 22.25 | 52 | 25.4 | 15 | 3150 | 1610 | 0.213 |
| 205KRR2 | 1 | 7/8" | 22.25 | 52 | 25.4 | 15 | 3150 | 1610 | 0.2 |
| 205KPPB2 | 4 | 7/8" | 22.25 | 52 | 25.4 | 15 | 3150 | 1610 | 0.213 |
| 205KRRB2 | 2 | 7/8" | 22.25 | 52 | 25.4 | 15 | 3150 | 1610 | 0.2 |
| 206KPP4 | 3 | 1" | 25.425 | 62 | 26.924 | 16 | 4370 | 2320 | 0.213 |
| G206KPPB4 | 4 | 1" | 25.425 | 62 | 24 | 18 | 4370 | 2320 | 0.213 |
| 206KPPB5 | 4 | 1" | 25.425 | 62 | 26.924 | 16 | 4370 | 2320 | 0.213 |
| 206KRR6 | 1 | 1" | 25.425 | 62 | 24 | 16 | 4370 | 2320 | 0.34 |
| 206KRRB6 | 2 | 1" | 25.425 | 62 | 24 | 16 | 4370 | 2320 | 0.34 |
| G207KPPB2 | 4 | 1 1/8" | 28.6 | 72 | 37.694 | 19 | 5770 | 3150 | 0.499 |
| 207KRRB9 | 2 | 1 1/8" | 28.6 | 72 | 37.694 | 17 | 5770 | 3150 | 0.454 |
| 207KRRB12 | 2 | 1 1/8" | 28.6 | 72 | 25 | 17 | 5770 | 3150 | 0.395 |
| SL53-014-2T | Special | 7/8" | 22.225 | 53.086 | 19.4 | 18.288 | 3150 | 1610 | 0.174 |
