- easy operation and high accuracy
- Suitable for S shape melamine products, like mugs, ice cream cups etc
Support Service :
Life-time ServiceTrainning Service :
YesMachine Dimension :
2.28*1.4*2.5 MMachine Weight :
5000KGS

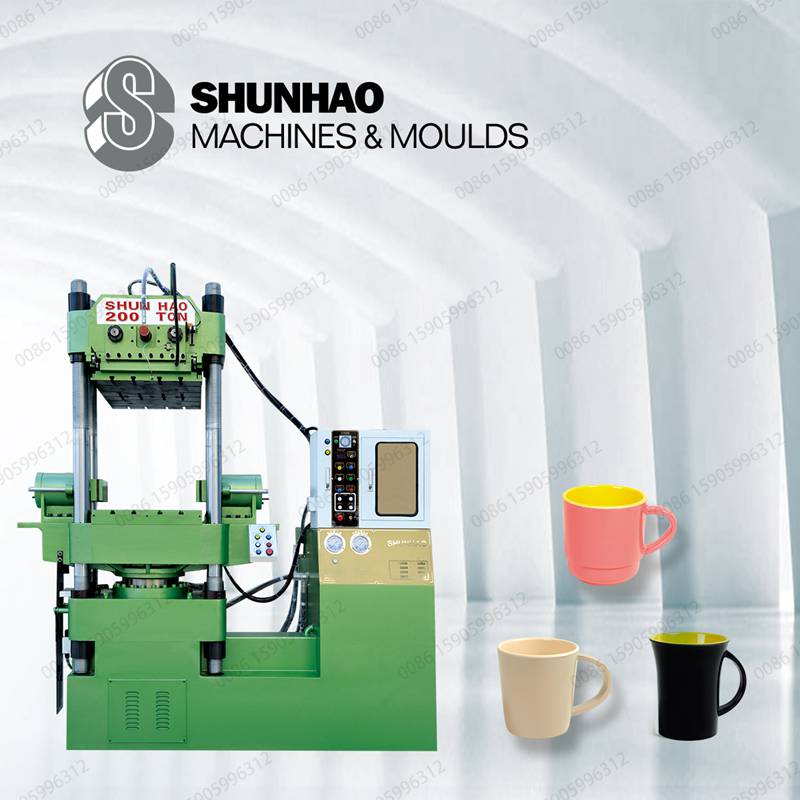

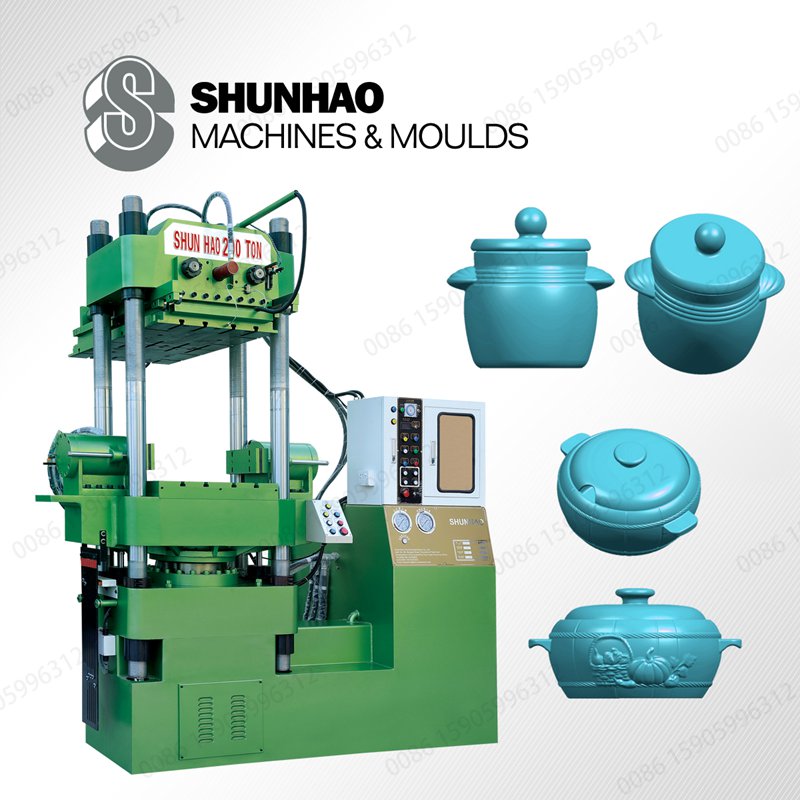

S Shape Melamine Molding Machine
Features
Shunhao Split Molding Machine Features:
1. With the function of slow-speed mold selection, making mold correction more accurate and safer.
2. Adopt a new type of rail mold opening, special demolding structure design, long service life and increase output.
3. Quiet, fast, stable and easy to enter and exit the mold, adjustable mold removal angle, convenient for personnel to operate.
4. The front ejection mold is suitable for various S-type product molds and is a new multi-functional model.
5. It has perfect functions and compact structure. It can automatically control temperature, alarm, automatically open the mold, automatic pressure compensation, timing. A PLC controller is used to complete the entire process automatically according to the preset working procedures.
Equipment advantages:
●Moving template fast rise, slow lock, fast fall function. The mold closing fast rotation and the exhaust fast rotation can be adjusted separately to improve production efficiency.
●When the product is vulcanized, the oil pump motor stops working, and has automatic pressure compensation function and oil pump shutdown delay. The oil circuit configuration is more reasonable and reliable.
●Bleed time, deflation times, heating temperature, vulcanization time can be set, easy to operate.
●With manual and semi-automatic working modes. The operation is simple, the maintenance is convenient, and the machine program can be updated.
●Hydraulic oil cylinder is provided by a foundry of a Taiwanese enterprise, with strict and reliable quality, good sealing performance and long service life.
●The electrical system is controlled by computer, which is more convenient, accurate and reliable.
●Adopt Sino-foreign joint venture vane pump, wide adaptability, low noise, low energy consumption and low maintenance cost.
●Users can choose to use touch screen or PLC control, touch screen or text display.
Technical Parameters
No. |
Content |
DTS 200 |
1 |
Main Cylinder Nominal Pressure |
200Tons |
2 |
Cup Mould Cylinder Nominal Pressure |
64Tons |
3 |
Maximum Working Pressure |
210kg/ cm2 |
4 |
Main Cylinder Piston Diameter |
Ø370mm |
5 |
Main Cylinder Working Stroke |
560mm |
6 |
Adjustable Table Distance |
500~960mm |
7 |
Heating Plate Size |
680*620mm |
8 |
Tension Column (Heat Treatment Grinding) |
Ø100*2100mm |
9 |
Oil Hydraulic Pump |
21Mpa |
10 |
Motor Specifications |
10HP |
11 |
Heating Sheet Total Power |
11KW |
12 |
Machine Total Power |
18.5KW |
PS: Specifications subject to change without notice
