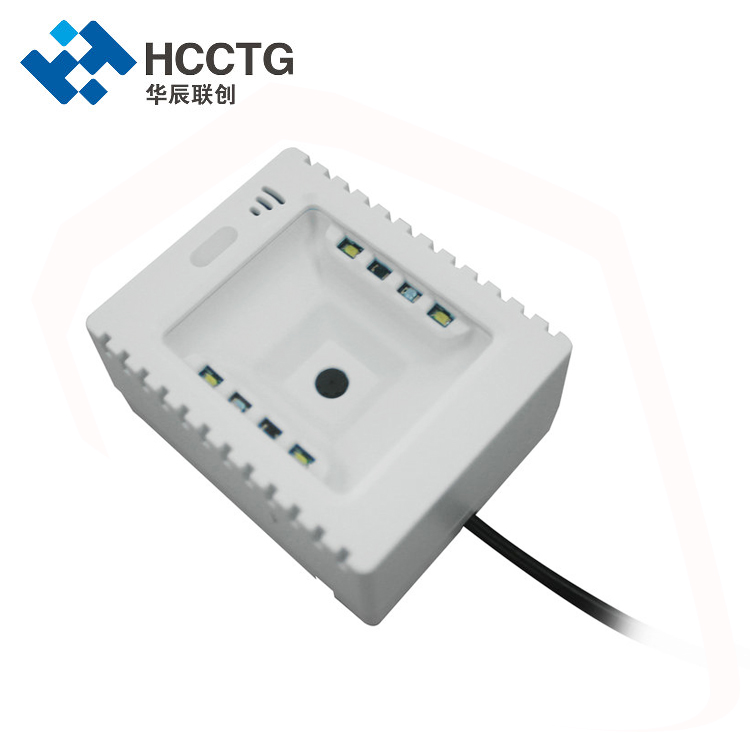

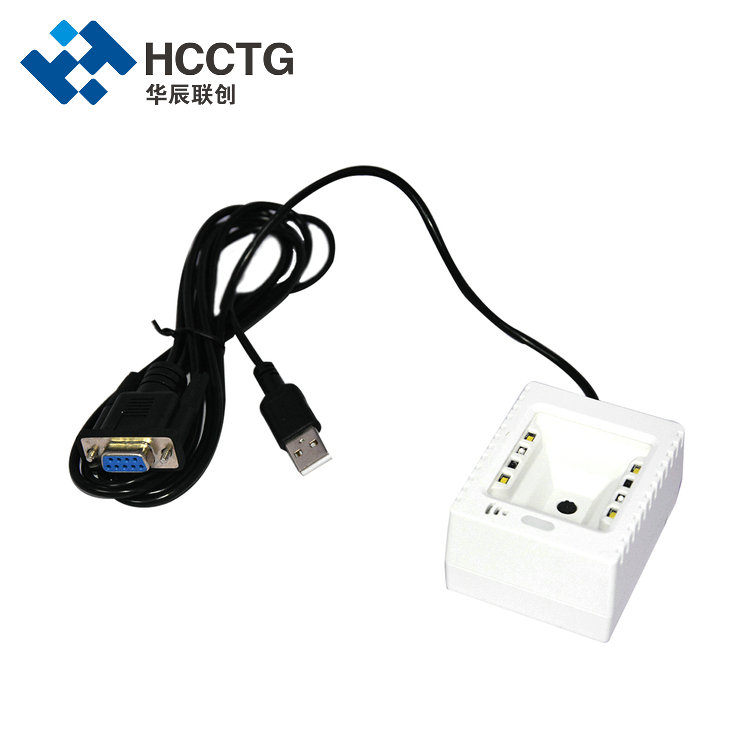

Cheap Price Mini OEM 2D Reader Android Embedded QR Code Barcode Scanner HS-2002B
HS-2002B has embedded compact body,rich application scenarios and integrated design of body and data line, besides, it also has features of no plugins required, lightning invoicing.
Application Scenarios
Specification
|
Image Sensor |
640×480 CMOS |
|
|
Ambient light intensity |
0~100000Lux |
|
|
Illumination |
No lighting mode, reading light mode, constant light mode |
|
|
Reading code system |
1D |
Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISSN,ISBN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-14,Matrix 2 of 5(European Matrix 2 of 5),Industrial 25, Standard 25,Code 39,Codabar, Code 93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited, RSS-Expand |
|
2D |
PDF417,Data Matrix,QR,Micro QR |
|
|
Reading accuracy |
≥5mil |
|
|
Typical reading depth of field |
QR CODE( 30MIL) 0-15CM CODE 128 (10MIL) 0-12CM |
|
|
Bar code sensitivity |
tilt |
±60°@ 0°Roll and 0° Skew |
|
Rotate |
360°@ 0°Pitch and 0° Skew |
|
|
deflection |
±55°@ 0°Roll and 0° Pitch |
|
|
Minimum contrast |
≥30% |
|
|
Data interface |
RS-232, USB, USB virtual serial |
|
|
Physical parameter |
Dimension |
67*53*34.5mm (L* w * h) |
|
Packing |
2 single packs, 40 packs/boxes |
|
|
weight |
Single: 260g;FCL: 5.85kg |
|
|
Prompt mode |
Buzzer, LED indicator |
|
|
Current |
Maximum current |
<150mA |
|
Working current |
90mA±15mA |
|
|
stand-by current |
65mA±2mA |
|
|
Environmental parameters |
Operating temperature |
-20℃~50℃ |
|
Storage temperature |
-40℃~70℃ |
|
|
Relative humidity |
5%~95% (no condensation) |
|
