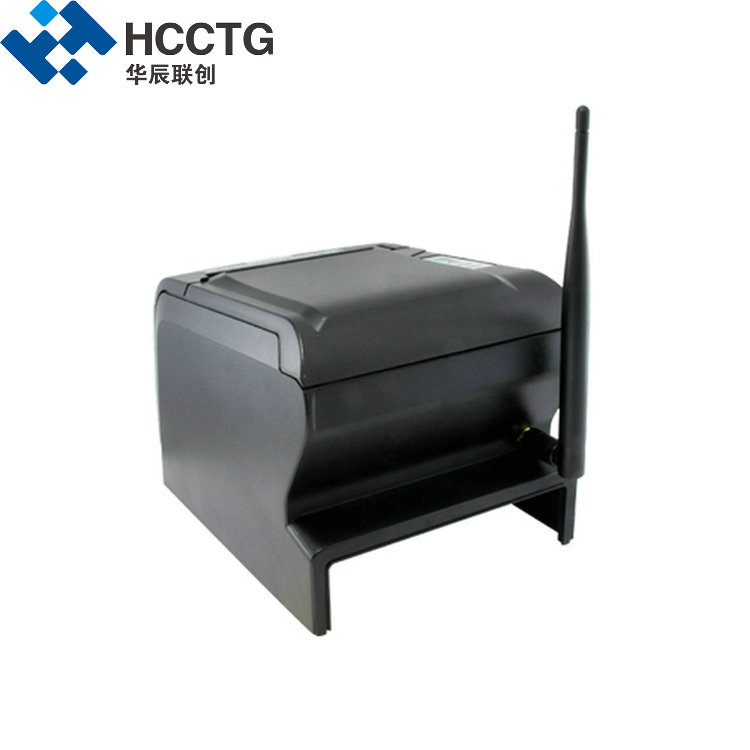

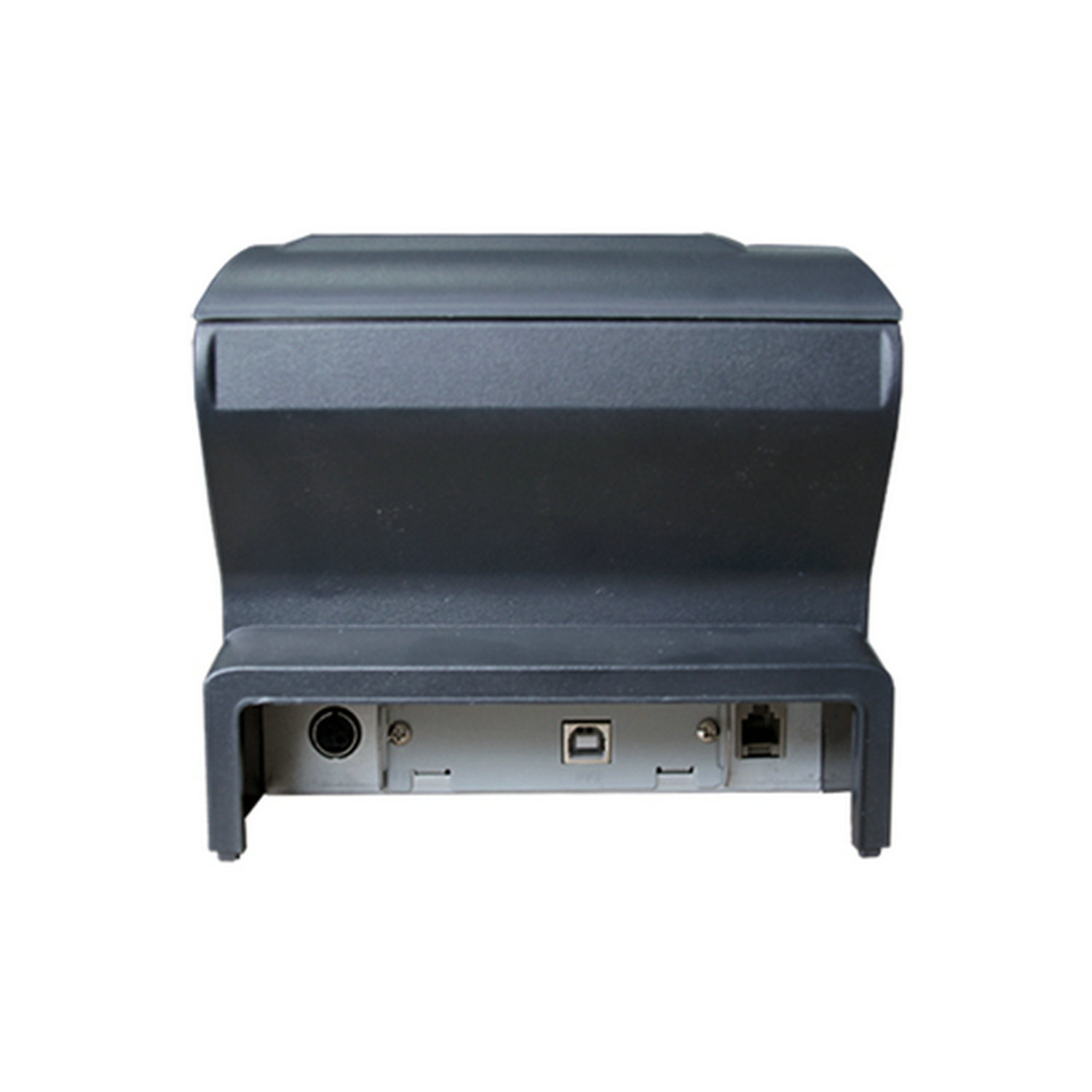

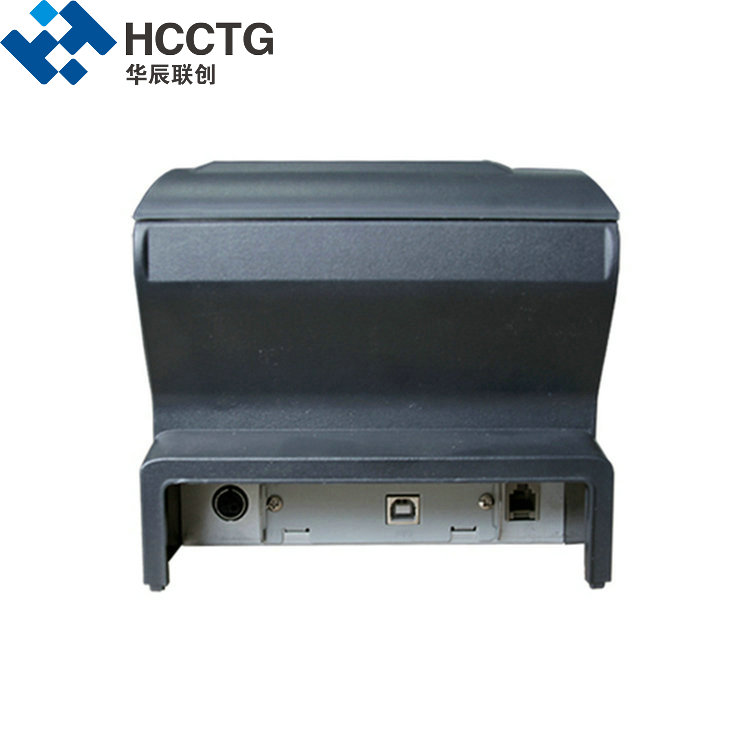

Newly 3 Inch Desktop 1D/2D Barcode Printing Thermal Printer HCC-POS88V
POS88V has high speed of printing up to 250mm/s and anti-electromagnetic interference level 3, it's produced using the latest manufacturing methods and technology. This product produces clear images or characters and it will improve your work efficiency, save your time and give you more choices.
Specification
|
Printing Method |
Thermal Line |
|
Resolution |
8dots/mm, 576dots/line |
|
Effective Printing Width |
72mm |
|
Printing Speed |
250mm/s or 220mm/s |
|
Character Set |
ASCII, GB18030(Chinese), BIG5 |
|
Self-defined Character |
YES |
|
Print Font |
ANK: 12 x24 Chinese:24x24 |
|
Barcode |
1D: UPC-A, UPC-C, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 2D: PDF417, QR CODE, DATA matrix |
|
Graphic |
Support bitmap downloading |
|
Paper End Sensor |
YES |
|
Overheating Protection |
YES |
|
Interface |
RS-232/Parallel/USB/Ethernet /WIFI (Reserved) |
|
Cash drawer control |
DC24V,1A,6PIN RJ-11Socket |
|
Power Supply (Adapter) |
AC100 ~240V ± 10%(include) DC 24V, 2A |
|
TPH |
100KM |
|
Auto Cutter |
5,000,000 cuts |
|
Paper Type |
Thermal paper |
|
Paper Width |
79.5± 0.5mm |
|
Paper Thickness |
0.06 to 0.08mm |
|
Paper Roll Diameter |
Max.80mm |
|
Auto Cutter |
Partial Cut |
|
Operating Temp/Humidity |
5-50°C/10%-80% |
|
Storage Temp/Humidity |
-20-60°C / 10%-90% |
|
Dimension (LxWxH) |
200x139x150mm |
