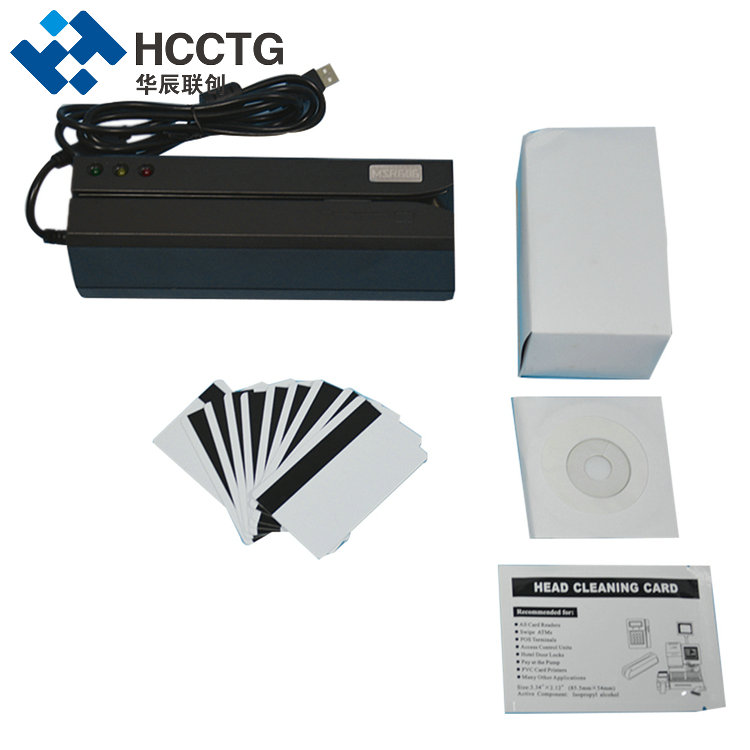

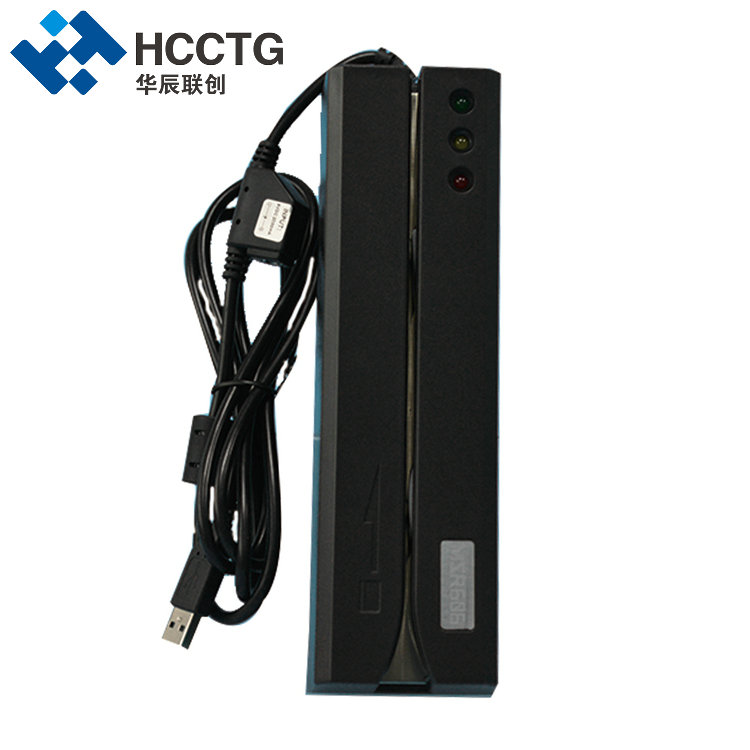

RS232/USB 3 Tracks Magnetic Stripe Card Reader&Writer MSR606

MSR606 is a Magnetic Stripe Card Reader, Writer and Encoder.
Product Details

3 Tracks Manual Single Direction CE ROHS Certification Smart Card Reader MSR606

MSR606 is swipe operated magnetic card reading machine with USB interface, adopting high integrated magnetic card decoding chip. Besides, It's also designed to offer a reading and writing solution for high and/or low COERCIVITY cards that will attractively complement an existing system.


Feature

  • Read/Write magnetic stripe card complied with ISO formats
  • Read/Write Drivers Licenses
  • Read/Write High & Low  COERCIVITY (300~4000 OE)
  • LED provides operational status
  • Writes any track combinations of 210 and/or 75 bpi data density
  • Program software for Windows 98/Me/XP /Vista
  • Manual Swipe to read and/or write card with RS-232 /USB output
  • Writing &verifying data on single, dual, or triple track in one swipe
  • +24VDC, 2.5A Max external power adapter attached
  • Dimension of 212(L) x 64(W) x 63(H) mm
  • Dimension of Box 290(L) x 180(W) x 100(H) mm






Specification

Power Reference

Power requirements

  +24VDC +/- 5%

Consumption

  Typical 350mA Max.  600mA plus for each writing track

Power supply

  External switching power 24V/2.5A

Interface

  Serial interface or USB

Ripple

  50mVp-p or less

Dielectric strength

  500 VDC for 1 minute

Performance

Read card

  Track1

  Track2

  Track3

Bit per density

  210 bpi

  75/210bpi

  210 bpi

Coercive force

  Read/write 300-4000 OEmagnetic card

Card thickness

  0.76-1.2mm

Read speed

  STD card

  Jitter +/-15%

  Amp. 60%



  5-55ips

  5-50ips

  5-50ips

Write speed

  5-30ips

Write jitter

  Interval < +/- 10%, Sub-interval < +/- 12%

Error rate

  Read < 0.5%



  Write < 0.8%

Head life

  Min. 1000K swipes for both read/write head

Physics

Body material

  ABS 94V-0

Weight

  Approx. 1.4kg

Dimension

  212L x 64W x 63H mm

Swipe

  Manual, single direction

Environment

Operation

  -10 to 55oC, 10 to 85% humidity

Storage

  -30 to 70oC, 10 to 90% humidity

Safety Approval

Certificate

  FCC , CE , UL,CUL,ROHS
