HS-203M is a high-performance 2D scanning platform that can quickly identify 1D barcode, 2D barcode, mobile phone screen code and mobile payment code.
HS-203M is a high-performance 2D scanning platform that can quickly identify 1D barcode, 2D barcode, mobile phone screen code and mobile payment code.

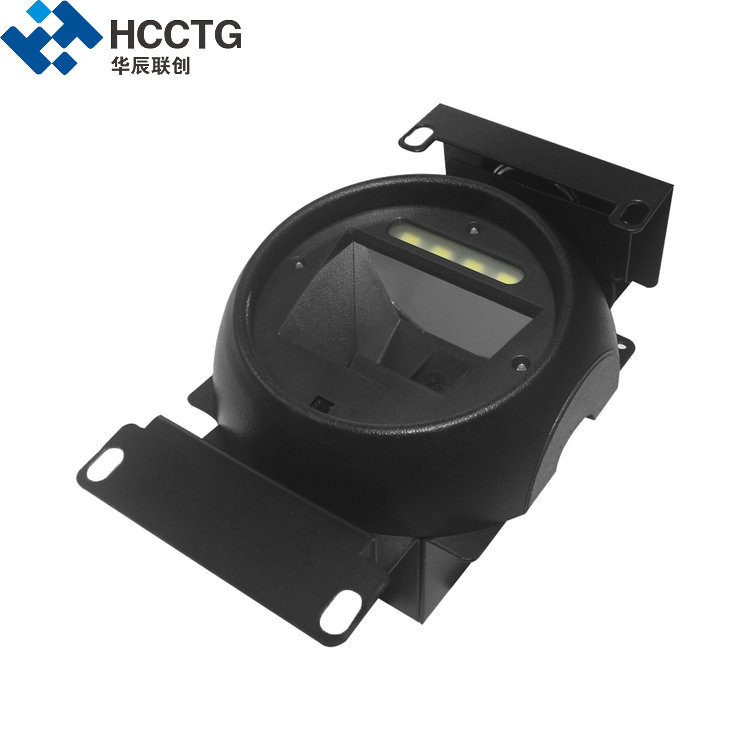

Mobile Payment Ali/Wechat Table 1D/2D QR Code Scanner HS-203M
HS-203M has the characteristics of strong decoding ability, high precision, fast speed and good compatibility. It is used in retail, supermarket, tobacco, logistics, warehousing, medical, clothing and other fields; It is the most cost-effective product on the market and is your best choice.
Support: Alipay, WeChat collection; QR code mobile payment.
Support: Alipay invoicing code, national tax invoicing code, aerospace information, Baiwang Jinfu, lightning invoicing.
Support: WeChat billing assistant, lightning invoicing (customized)
Feature
Application
Shopping mall supermarket/convenience store checkout counter, customer service desk, ticket inspection window, O2O application site, 1D barcode, 2D barcode, Alipay/WeChat payment code.
Specification
|
Performance parameter |
Image Sensor |
CMOS |
||
|
Pixel |
752*480 CMOS |
|||
|
Illumination |
White LED |
|||
|
Reading code system |
2D |
PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200,ECC000, 050, 080, 100, 140), Hanxin code |
||
|
1D |
Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited,RSS-Expand) |
|||
|
Reading accuracy |
≥5mil |
|||
|
Motion tolerance |
2.5 m / sec |
|||
|
Bar code sensitivity |
Tilt |
±50°@ 0°Roll and 0° Skew |
||
|
Rotate |
360°@ 0°Pitch and 0° Skew |
|||
|
Deflection |
±60°@ 0°Roll and 0° Pitch |
|||
|
Minimum contrast |
≥30% |
|||
|
Data interface |
USB HID-KBW interface, USB virtual serial port, USB HID-POS interface, TTL-232 interface, RS-232 interface |
|||
|
Field of view |
Horizontal 44°, vertical 33.2° |
|||
|
Typical reading depth of field |
Code 39 |
QR Code |
||
|
5mil 0-8cm |
10mil 0-5cm |
|||
|
6. 67mil 0-10cm |
15mil 0-8cm |
|||
|
10mil 0-12cm |
20mil 0-10cm |
|||
|
13mil 0-14cm |
30mil 0-15cm |
|||
|
Physical parameter |
Size (L *W *H) |
147.9X96X76.6mm |
||
|
Weight |
About 370g (scanning platform host only) |
|||
|
Prompt mode |
Liyin speaker, LED indicator |
|||
|
Current |
Working current |
260mA |
||
|
Stand-by current |
240mA |
|||
|
Environmental parameters |
Operating temperature |
-20℃~+50℃ (-4°F~122°F) |
||
|
Storage temperature |
-40℃~+80℃ (-40°F~176°F) |
|||
|
Relative humidity |
5%~95% (no condensation) |
|||
|
Static Protection |
±14 kV (air discharge), ±8 kV (direct discharge) |
|||
|
Drop height |
6 faces of 1.2 m of concrete floor falling (on each of six sides) |
|||
|
Protection level |
IP 52 |
|||
|
Certification |
FCC Part15 Class B,CE EMC Class |
|||
|
Accessories list |
Data line |
USB cable (2m) |
USB HID-KBW interface, USB virtual serial port, USB HID-POS interface |
|
|
TTL-232 line (2m) |
TTL-232 interface |
|||
|
RS-232 cable (2m) |
RS-232interface |
|||
