W200..PPB Triple lip seal,Farm implement bearings,Non-relubricatable type
W200..PPB Triple lip seal,Farm implement bearings,Non-relubricatable type
Round Bore

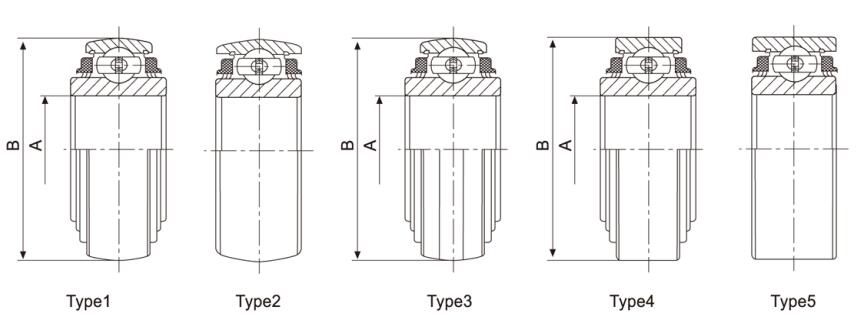

| Bearing No. | Type | Bearing Bore Size | Outside Dia. | Ring Width | |||||
| A | B | Inner Ring | Outer Ring | ||||||
| (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | ||
| 205PPB7 | 1 | 0.9375 | 23.813 | 2.0472 | 52 | 1.3748 | 34.92 | 0.591 | 15 |
| W208PPB7 | 1 | 1.1880 | 30.175 | 3.1496 | 80 | 1.189 | 30.2 | 0.709 | 18 |
| W208PP10 | 4 | 1.5005 | 38.113 | 3.1496 | 80 | 1.691 | 42.96 | 0.827 | 21 |
| W208PPB23 | 1 | 1.5005 | 38.113 | 3.1496 | 80 | 1.691 | 42.96 | 1.189 | 30.2 |
| W209PPB2 | 2 | 1.7717 | 45 | 3.3460 | 85 | 1.189 | 30.2 | 1.189 | 30.2 |
| W209PPB4 | 2 | 1.5350 | 39 | 3.3460 | 85 | 1.189 | 30.2 | 1.189 | 30.2 |
| W210PP2 | 5 | 1.9380 | 49.225 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
| W210PPB2 | 2 | 1.9380 | 49.225 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
| W211PP2 | 5 | 2.1880 | 55.575 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
| W211PPB2 | 2 | 2.1880 | 55.575 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
Square Bore
| Bearing No. | Type | Square Shaft Size | Square Bore Size | Outside Dia. | Ring Width | ||||
| B | Inner Ring | Outer Ring | |||||||
| (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | ||
| W208PPB13 | 1 | 7/8 | 23.117 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
| W208PPB6 | 1 | 1 | 26.162 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
| W208PP5 | 4 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
| W208PPB5 | 1 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
| W208PP8 | 4 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 1.189 | 30.2 |
| W208PPB8 | 1 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 1.189 | 30.2 |
| W208PPB11 | 3 | 7/8 | 23.117 | 3.3760 | 85.75 | 1.437 | 36.5 | 1.189 | 30.2 |
| W208PPB12 | 3 | 1-1/8 | 29.972 | 3.3760 | 85.75 | 1.437 | 36.5 | 1.189 | 30.2 |
| W209PPB5 | 1 | 1-1/4 | 32.766 | 3.3460 | 85 | 1.437 | 36.5 | 1.189 | 30.2 |
| W210PP4 | 5 | 1-1/8 | 29.972 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
| W210PPB4 | 2 | 1-1/8 | 29.972 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
| W211PP3 | 5 | 1-1/2 | 38.89 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
| W211PPB3 | 2 | 1-1/2 | 38.89 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
| W211PP5 | 4 | 1-1/2 | 38.89 | 4.0000 | 101.6 | 1.750 | 44.45 | 1.438 | 36.52 |
| W211PPB6 | 3 | 1-1/2 | 38.89 | 4.0772 | 103.56 | 1.750 | 44.45 | 1.438 | 36.52 |
