Q12 is a sim card walkie-talkie, it consists of analog UHF(400-470MHz) and network IP radio(4G-LTE), it operates in both 4G-LTE and analog mode, allows easily migrate from analog to 4G-LTE.
Q12 is a sim card walkie-talkie, it consists of analog UHF(400-470MHz) and network IP radio(4G-LTE), it operates in both 4G-LTE and analog mode, allows easily migrate from analog to 4G-LTE.

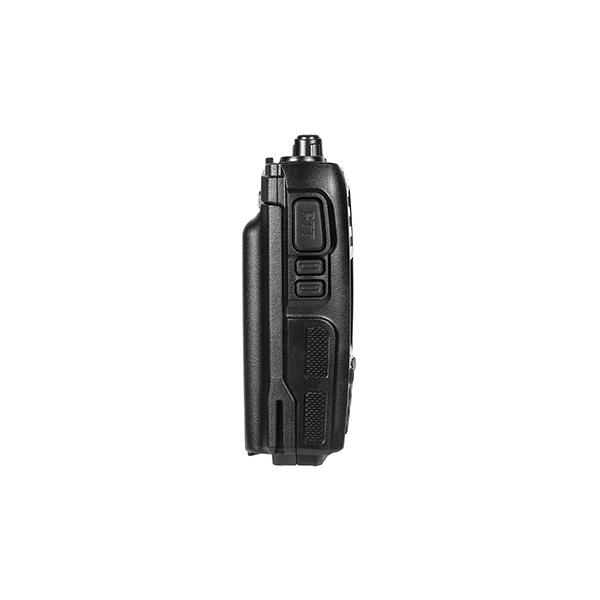

This Q12 SIM card walkie-talkie, which is also called PoC walkie-talkie, is one of our top-selling 4G walkie-talkie, its operation system is Linux, it has GPS function, the good point is that it has LTE/4G + UHF analog version, which means that as long as you have this Q12 walkie talkie, you can not only talk to analog walkie-talkies, but also SIM card walkie-talkies.
Its supportive network including:
LTE FDD:B1, B3, B5, B8
LTE TDD:B38, B39, B40, B41
WCDMA:B1, B5, B8
TD SCDMA:B34, B39
GSM:B3, B8
Moreover, this Q12 radio could be used in various occasions, such as property management, taxi deployment, construction working, self-driving, military cooperation, fire-fighting deployment and other suitable occasions, also, it can excellently accomplish the task of communication and command.
|
Parameter |
|||||
|
Radio structure |
Straight panel, external antenna, 20 press key |
||||
|
Size |
130*62*44mm |
||||
|
Weight |
322g |
||||
|
POC Parameter |
|||||
|
Configurations |
CPU |
MDM 9x07 |
|||
|
RAM |
1GB(32Mb*32)DDR2 |
||||
|
Storage |
2GB(256Mb*8)HAND |
||||
|
OS |
LINUX |
||||
|
Language |
Chinese,English |
||||
|
Network |
Radio method |
LTE/TD TD-SCDMA |
|||
|
Frequency |
LTE FDD:B1,B3,B5,B8/LTE TDD:B38,B39,B40,B41/ WCDMA:B1,B5,B8/TD SCDMA:B34,B39/GSM:B3,B8 |
||||
|
GPS |
GPS/AGPS |
||||
|
USB |
USB test point, USB 2.0HS |
||||
|
SIM type |
Dual nano sim card dual stanby |
||||
|
PTT function |
Communication method |
Half duplex(Implement by software) |
|||
|
Speaker Vol |
Volume adjustment by analog mode |
||||
|
Tx/Rx SW |
Press the PTT button to talk, release PTT button to receive voice |
||||
|
Sound I/O |
Speaker |
Rated output power:1.5W, maximum output power:2W |
|||
|
Mocrophone |
Single MIC |
||||
|
Battery |
5000mAh |
||||
|
Desktop charger |
Input: AC 100-240V,50/60Hz Output:DC 5V,1A |
||||
|
Analog Parameter |
|||||
|
Frequency range |
400.000-470.000MHz |
||||
|
Working voltage |
DC 3.7V |
||||
|
Number of Channel |
16 |
||||
|
Step frequency |
12.5KHz/25KHz |
||||
|
Frequency stability |
±2.5PPM |
||||
|
Antenna impedance |
50Ω |
||||
|
Operating Mode |
Simplex of co-frequency or alien frequency |
||||
|
Transmit Part |
Receive Part |
||||
|
Output power |
≤2W |
Reference sensitivity |
-122dBm(12dB SINAD) |
||
|
Current |
≤1.4A |
Squelch ON Sensitivity |
5KHz |
||
|
Modulation distortion |
≤5% |
Audio power |
0.5W |
||
|
Maximum frequency deviation |
＜5k/＜2.5KHz |
Audio distortion |
＜10% |
||
|
CTCSS/DCS Frequency Offset |
0.75KHz±50Hz |
Modulation receiving bandwidth |
≥85dB |
||
|
Stray radiation |
≤7uW |
Spurious response suppression |
≥65dB |
||
|
Modulation Type |
16KφF3E/11KφF3E |
Selectivity |
≥65dB≥60B |
||
|
Residual modulation |
≤-35dB |
Intermodulation |
≥60dB≥55dB |
||
