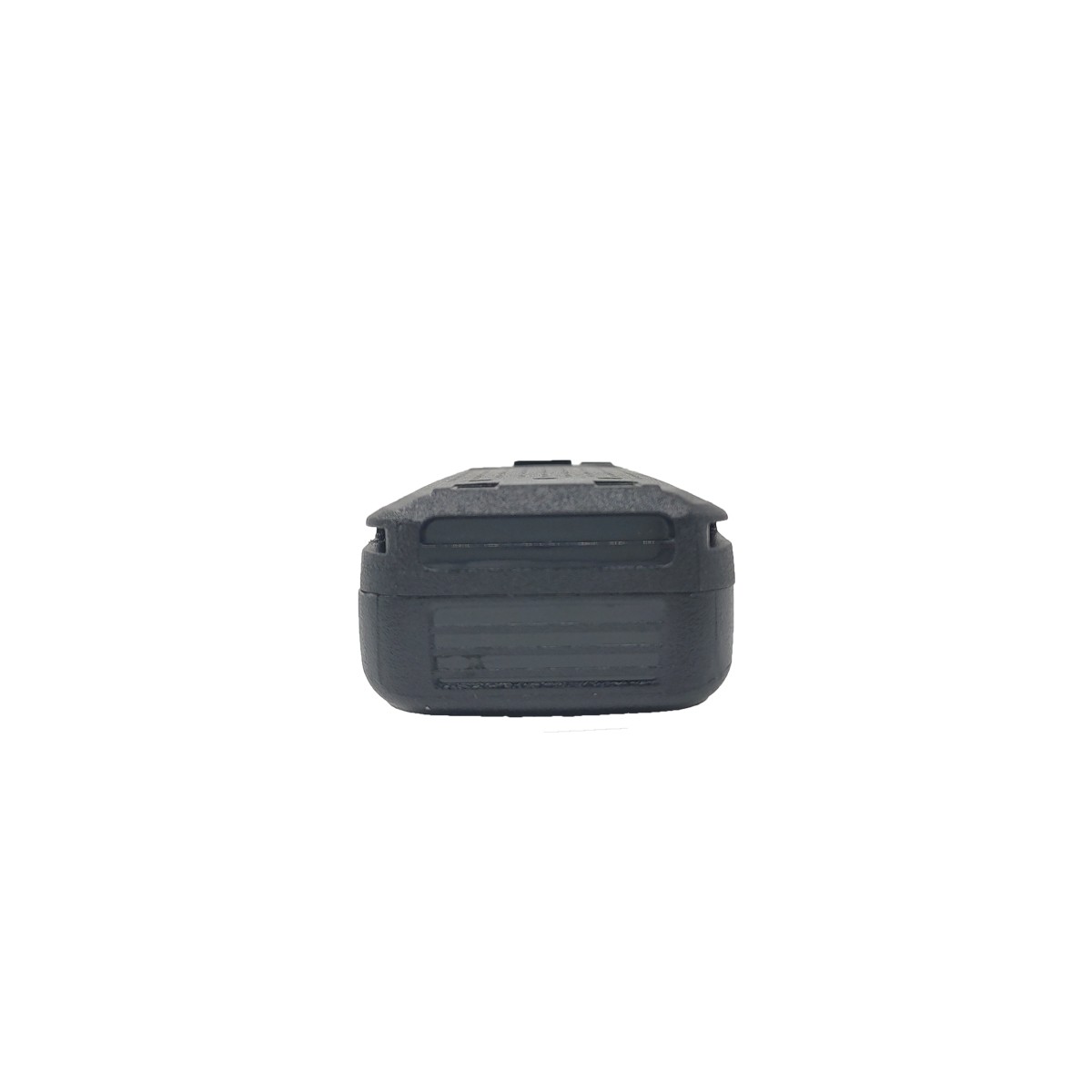

This AH-3700 is an analog walkie-talkie without screen, it is a single band walkie-talkie, you can choose uhf or vhf, there are 16 channels.
| Specification | |
| Frequency Range | 136-174MHz/400-480MHz |
| Operaling Temperature Range | -20℃~+60 |
| Channel Capacity | 16 Channels |
| Communication System | Simplex or Double |
| Dimension | 100×55×35mm |
| Weight | 250g(including Battery Pack) |
| TX Power | ≤9w |
| Modulation Type | FM(F3E) |
| Frequency Deviation | ≤±5KHz |
| Spurious Emission | <-60dB |
| TX Current | 0.7A |
| Frequency Stability | ±2.5ppm |
| RX Sensitivity | <0.18uV |
| Audio Output Power | >400MW |
| Standby Current | 46mA(Power Save Condition:20mA |
QYT Electronics Co., Ltd.(QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
