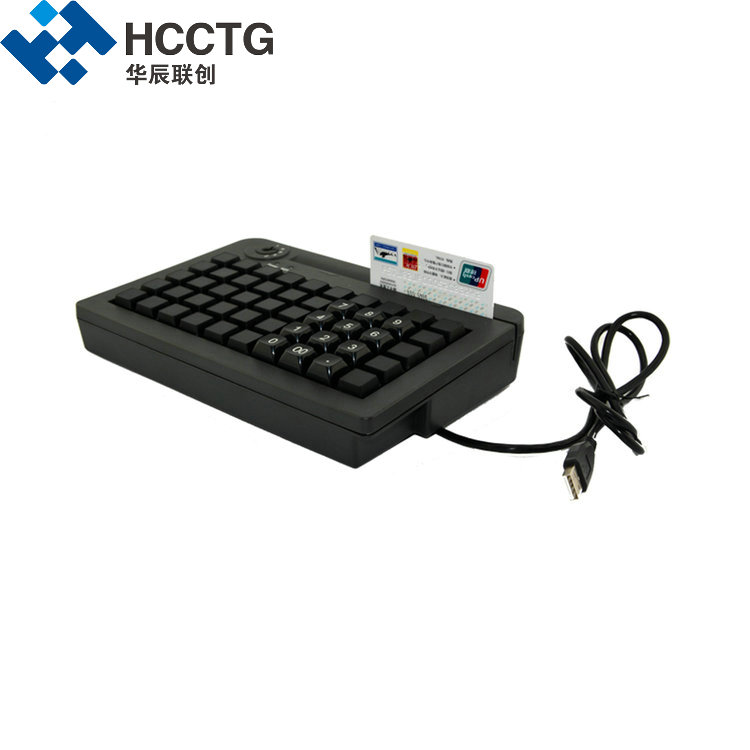

50 keys USB Mechanical Programmable POS Keyboard KB50M
High quality keyboard with minimalist layout and Topre capacitive key switch technology, Premium and ergonomic 50-key keyboard designed by programmers.
Specification
|
Key Number |
50 keys |
|
|
Key Switch Mechanism |
Membrane‐type Key Switch with 12 million life cycle time |
|
|
Total Travel Distance |
4 + 0.5mm / 2 + 0.6mm |
|
|
Key Force (Peak Load |
60 + 20cN |
|
|
Interface / Power |
USB / +5VDC + 10% / < 100mA |
|
|
Cable |
USB cable stored on the back |
|
|
Programmable Features |
||
|
Programmable Keys |
All keys can be programmable |
|
|
Mufti-Level Programming |
support max 4 levels |
|
|
Time Delay Support |
Provide a variable time delay, 0.5 sec per interval |
|
|
Software Compatibility |
Support USB programming in Window ME/ 9X/2K/ XP/7/8/10 |
|
|
Memory |
All programmed data are stored in EEPROM, without battery |
|
|
Magnetic Stripe Card Reader Specification |
||
|
Card |
Comply with ISO 7812, IBM standards, AAMVA, JIS‐2 |
|
|
Programmable Support |
programmable MSR setting for Header, Tailor, Separator, Suffix andPrefix |
|
|
ISO Card Track |
Track 1 |
210BPI with max 76 characters |
|
Track 2 |
210BPI with max 107 characters or 75BPI with max 37 characters |
|
|
Track 3 |
210BPI with max 107 characters |
|
|
LED |
Power MSR and buzzer |
|
|
Swipe Speed / Head Life‐Cycle |
10 ~ 180 cm/sec. / 500, 000 swipes |
|
|
Others |
||
|
Electronics Lock |
4 section of electronic locks for different level users |
|
|
Environment |
Operating |
0℃ ~ 50℃(32°F ~ 122°F) , 10% ~ 90% (no condensation) |
|
Physical |
Storage |
-20℃ ~ 55℃(-4°F ~ 131°F) , 10% ~ 90% (no condensation) |
|
Dimension |
220 (L) x 151 (D) x 40 (H) mm, including MSR / 666 g (N |
|
|
Box / Weight |
343 (L) x 175 (D) x 55 (H) mm/ 755g (GW) |
|
|
Accessories |
Key cap Puller, 1x & 2x Transparent Caps |
|
