COMPANY PROFILE:
Xiamen taohong tech. Co.,ltd operates a quality management system approved to ISO 9001:2008 and dimensional tolerances to EN 755. This system allows quality management from an initial contract review through to product shipment. Laboratory facilities are also available to assist with quality assurance and any necessary metallurgical testing.
Products Description
Item
|
Specification
|
Size
|
5800*2440*2620mm
|

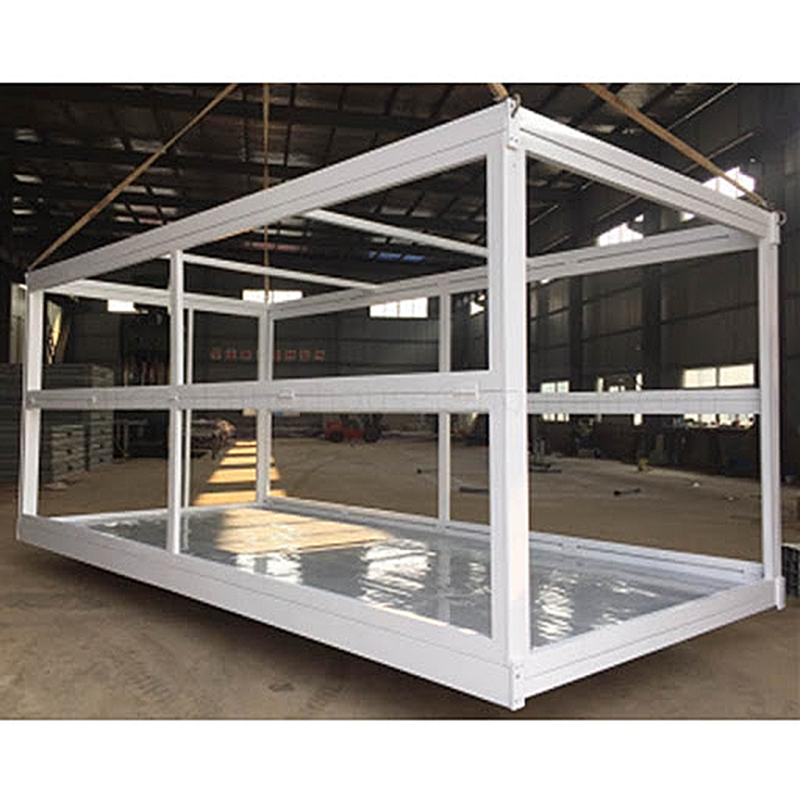

Steel Structure
|
Galvanized Steel Frame
|
Wall Panel
|
50mm EPS sandwich panel /rock wool sandwich panel ,0.326/0.376/0.426/0.476mm steel sheet
|
Wall Color
|
White color and optional colors
|
Roof
|
50mm EPS sandwich panel /rock wool sandwich panel ,0.326/0.376/0.426/0.476mm steel sheet
|
Door
|
Optional doors
|
Window
|
Aluminum sliding window, sliding window with security bar
|
Floor
|
MGO board /optional floor
|
Electricity
|
Optional standard
|
Install Time
|
2 Workers+10 mins=1house
|
Wind Resistance
|
Grade 10Wind, wind speed≤120 km/h
|
Snow Load Capacity Of Roofing
|
0.6kn/m2
|
Live Load Capacity Of Roofing
|
0.6kn/m2
|
Wall Permitted Loading
|
0.6kn/m2
|
Advantages:
-
Trend: Building modularity and integration is the general trend. The environment-friendly, energy-saving, fast and efficient integrated housing of the easy-folding container house is the direction of future construction development.
-
Safety: The integrated building components are flexible, and standard modules are assembled and assembled. The overall structure adopts light steel structure as the skeleton. The safety performance is very high.
-
Fast: All components are factory prefabricated, standardized production, convenient transportation, fast on-site assembly, no need for secondary decoration.
-
Comfort: The wall panel is made of Class A fireproof glass floss board. Easy-folding container houses have no connecting structure. Both the roof and ground systems have thermal insulation and noise reduction functions.
-
Environmental protection: Convenient disassembly and assembly, overall movement, long service life, and zero waste at the installation site.
-
Creativity: Easy-folding container houses can be connected horizontally and ground, and stacked vertically to form a coherent building system.
Application
1) Can be used as dormitory temporary hospital toilet office storage room etc
2) Can be installed in a short time assembled by bolts with a high intensity
3) Can be used repeatedly with a life span of more than 30 years
4) With a well-sealed and reliable structure water-proof fire-resistant moisture-proof and anti-corrosive
5) With supporting facilities such as washbasin shower air-conditioner, socket and so on;
6) The special design enables to carry this container house in a whole without damages, so it's quite suitable for movable projects.

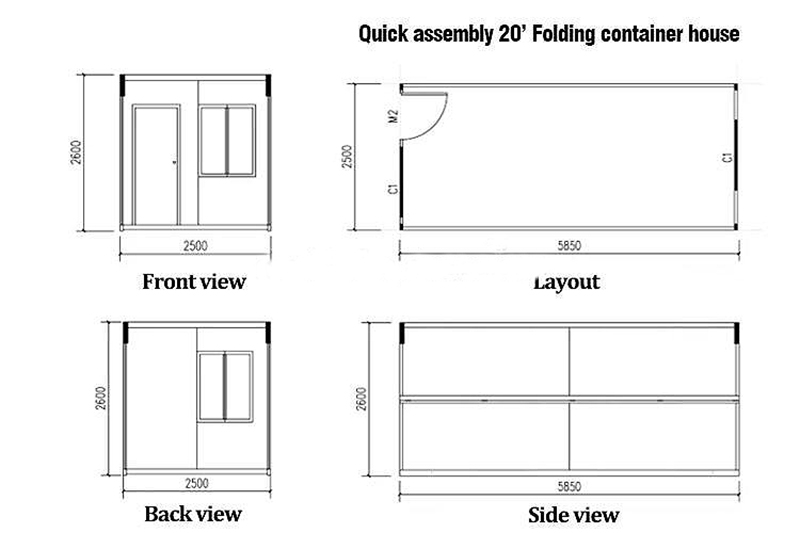

Standard size
Packing
