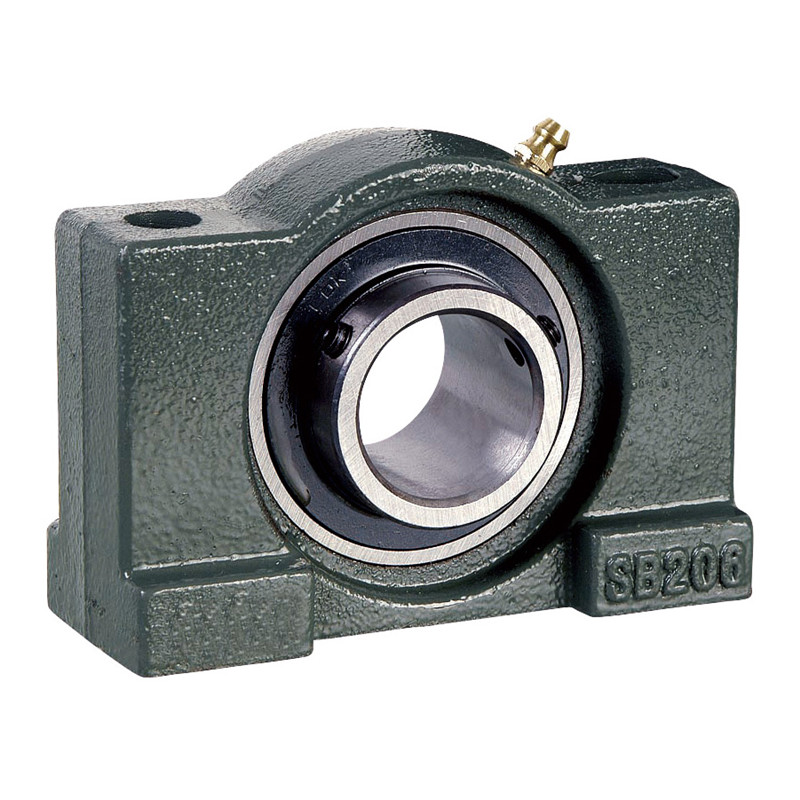

Pillow Block Bearing Units UCSB2

UCSB Standard duty,Cast gray iron housing .

Cast ductile iron housing available upon request.

Vertical sand casting automatic production line.

Welcome inquiry for standard or non standard casting parts.


Product Details

Bearing Block UCSB205

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight (kg)
d H L J A A1 H1 Ho N B s (mm) (in)
(in) (mm)
UCSB205
25 31.7 92 70 38 25 58 67 12 34.1 14.3 M10 3/8 1.03
UCSB205-13  13/16  31.7 92 70 38 25 58 67 12 34.1 14.3 M10 3/8 1.03
UCSB205-14  7/8  31.7 92 70 38 25 58 67 12 34.1 14.3 M10 3/8 1.03
UCSB205-15  15/16  31.7 92 70 38 25 58 67 12 34.1 14.3 M10 3/8 1.03
UCSB205-16 1 31.7 92 70 38 25 58 67 12 34.1 14.3 M10 3/8 1.03
UCSB206
30 38.1 108 83 44 30 68 78 12 38.1 15.9 M10 3/8 1.63
UCSB206-17  1-1/16  38.1 108 83 44 30 68 78 12 38.1 15.9 M10 3/8 1.63
UCSB206-18  1-1/8  38.1 108 83 44 30 68 78 12 38.1 15.9 M10 3/8 1.63
UCSB206-19  1-3/16  38.1 108 83 44 30 68 78 12 38.1 15.9 M10 3/8 1.63
UCSB206-20 1-1/4 38.1 108 83 44 30 68 78 12 38.1 15.9 M10 3/8 1.63
UCSB207
35 44.4 133 102 48 33 76 95 14 42.9 17.5 M12 7/16 2.52
UCSB207-20  1-1/4  44.4 133 102 48 33 76 95 14 42.9 17.5 M12 7/16 2.52
UCSB207-21  1-5/16  44.4 133 102 48 33 76 95 14 42.9 17.5 M12 7/16 2.52
UCSB207-22  1-3/8  44.4 133 102 48 33 76 95 14 42.9 17.5 M12 7/16 2.52
UCSB207-23 1-7/16 44.4 133 102 48 33 76 95 14 42.9 17.5 M12 7/16 2.52
UCSB208
40 47.6 140 108 54 39 81 100 14 49.2 19 M12 7/16 3.12
UCSB208-24  1-1/2  47.6 140 108 54 39 81 100 14 49.2 19 M12 7/16 3.12
UCSB208-25 1-9/16 47.6 140 108 54 39 81 100 14 49.2 19 M12 7/16 3.12
UCSB209
45 50.8 146 111 54 39 86 105 14 49.2 19 M12 7/16 3.43
UCSB209-26  1-5/8  50.8 146 111 54 39 86 105 14 49.2 19 M12 7/16 3.43
UCSB209-27  1-11/16  50.8 146 111 54 39 86 105 14 49.2 19 M12 7/16 3.43
UCSB209-28 1-3/4 50.8 146 111 54 39 86 105 14 49.2 19 M12 7/16 3.43
UCSB210
50 53.97 152 118 60 41 90 110 14 51.6 19 M12 7/16 3.95
UCSB210-29  1-13/16  53.97 152 118 60 41 90 110 14 51.6 19 M12 7/16 3.95
UCSB210-30  1-7/8  53.97 152 118 60 41 90 110 14 51.6 19 M12 7/16 3.95
UCSB210-31  1-15/16  53.97 152 118 60 41 90 110 14 51.6 19 M12 7/16 3.95
UCSB210-32 2 53.97 152 118 60 41 90 110 14 51.6 19 M12 7/16 3.95
UCSB211
55 58.7 172 137 60 41 98 122 17 55.6 22.2 M16 5/8 4.92
UCSB211-32  2 58.7 172 137 60 41 98 122 17 55.6 22.2 M16 5/8 4.92
UCSB211-33  2-1/16  58.7 172 137 60 41 98 122 17 55.6 22.2 M16 5/8 4.92
UCSB211-34  2-1/8  58.7 172 137 60 41 98 122 17 55.6 22.2 M16 5/8 4.92
UCSB211-35 2-3/16 58.7 172 137 60 41 98 122 17 55.6 22.2 M16 5/8 4.92
UCSB212
60 69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.03
UCSB212-36  2-1/4  69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.03
UCSB212-37  2-5/16  69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.03
UCSB212-38  2-3/8  69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.03
UCSB212-39 2-7/16 69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.03
UCSB213
65 69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.62
UCSB213-40  2-1/2  69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.62
UCSB213-41 2-9/16 69.85 197 162 65 48 111 146 17 65.1 25.4 M16 5/8 7.62
UCSB214
70 76.2 206 172 73 60 117 155 17 74.6 30.2 M16 5/8 8.18
UCSB214-42  2-5/8  76.2 206 172 73 60 117 155 17 74.6 30.2 M16 5/8 8.18
UCSB214-43  2-11/16  76.2 206 172 73 60 117 155 17 74.6 30.2 M16 5/8 8.18
UCSB214-44 2-3/4 76.2 206 172 73 60 117 155 17 74.6 30.2 M16 5/8 8.18
UCSB215
75 76.2 206 172 73 55 117 155 17 77.8 33.3 M16 5/8 8.42
UCSB215-45  2-13/16  76.2 206 172 73 55 117 155 17 77.8 33.3 M16 5/8 8.42
UCSB215-46  2-7/8  76.2 206 172 73 55 117 155 17 77.8 33.3 M16 5/8 8.42
UCSB215-47  2-15/16  76.2 206 172 73 55 117 155 17 77.8 33.3 M16 5/8 8.42
UCSB215-48 3 76.2 206 172 73 55 117 155 17 77.8 33.3 M16 5/8 8.42
UCSB216
80 82.55 238 191 86 64 127 168 21 82.6 33.3 M20 3/4 10.55
UCSB216-50 3-1/8 82.55 238 191 86 64 127 168 21 82.6 33.3 M20 3/4 10.55
UCSB217
85 88.9 254 203 89 64 136 181 21 85.7 34.1 M20 3/4 13
UCSB217-52 3-1/4 88.9 254 203 89 64 136 181 21 85.7 34.1 M20 3/4 13
UCSB218
90 98.4 273 222 92 67 152 200 25 96 39.7 M24 16.29
UCSB218-56 3-1/2 98.4 273 222 92 67 152 200 25 96 39.7 M24 16.29
UCSBX20
100 108 298 241 108 70 178 221 26 108 49.2 M24 23.52
UCSB20-63  3-15/16  108 298 241 108 70 178 221 26 108 49.2 M24 23.52
UCSB20-64 4 108 298 241 108 70 178 221 26 108 49.2 M24 23.52

LDK-DEYUAN BEARING FACTORY is the high-Tech enterprise and professional manufacturer of Mounted Bearing Units. Best service welcome to contact us.
