Pillow Block Bearing Units NAP2

NAP Standard duty,Wider inner ring bearing, Eccentric locking,Cast gray iron housing .

Cast ductile iron housing available upon request.

Product Details

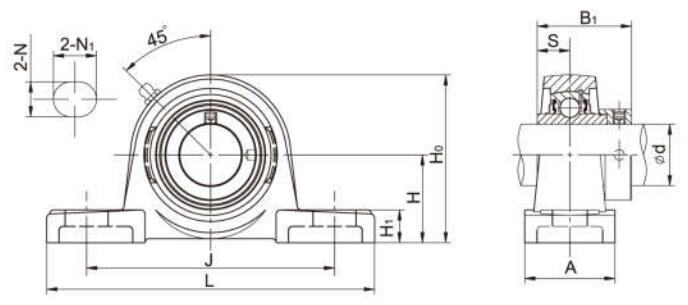

Mounted Bearing Units NAP206

Unit No.	Shaft Dia		Dimensions (mm)										Bolt Size (mm)	Weight
	d		H	L	J	A	N	N1	H1	Ho	B1	s		(kg)
	(in)	(mm)	H	L	J	A	N	N1	H1	Ho	B1	s		(kg)
NAP201		12	30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP201-8	1/2		30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP202		15	30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP202-9	9/16		30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP202-10	5/8		30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP203		17	30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP203-11	11/16		30.2	127	95	38	13	19	14	61	43.7	17.1	M10	0.72
NAP204		20	33.3	127	95	38	13	19	14	64	43.7	17.1	M10	0.72
NAP204-12	3/4		33.3	127	95	38	13	19	14	64	43.7	17.1	M10	0.72
NAP205		25	36.5	140	105	38	13	19	15	71	44.4	17.5	M10	0.8
NAP205-14	7/8		36.5	140	105	38	13	19	15	71	44.4	17.5	M10	0.8
NAP205-15	15/16		36.5	140	105	38	13	19	15	71	44.4	17.5	M10	0.8
NAP205-16	1		36.5	140	105	38	13	19	15	71	44.4	17.5	M10	0.8
NAP206	1-1/16	30	42.9	160	121	44	17	21	6	82	48.4	18.3	M14	1.35
NAP206-18	1-1/8		42.9	160	121	44	17	21	6	82	48.4	18.3	M14	1.35
NAP206-19	1-3/16		42.9	160	121	44	17	21	6	82	48.4	18.3	M14	1.35
NAP206-20	1-1/4		42.9	160	121	44	17	21	6	82	48.4	18.3	M14	1.35
NAP207		35	47.6	167	126	44	17	21	6	82	51.1	18.8	M14	1.7
NAP207-20	1-1/4		47.6	167	126	48	17	21	17	92	51.1	18.8	M14	1.7
NAP207-21	1-5/16		47.6	167	126	48	17	21	17	92	51.1	18.8	M14	1.7
NAP207-22	1-3/8		47.6	167	126	48	17	21	17	92	51.1	18.8	M14	1.7
NAP207-23	1-7/16		47.6	167	126	48	17	21	17	92	51.1	18.8	M14	1.7
NAP208		40	49.2	180	137	52	17	21	18	99	56.3	21.4	M14	2
NAP208-24	1-1/2		49.2	180	137	52	17	21	18	99	56.3	21.4	M14	2
NAP208-25	1-9/16		49.2	180	137	52	17	21	18	99	56.3	21.4	M14	2
NAP209		45	54	190	146	54	17	21	20	106	56.3	21.4	M14	2.42
NAP209-26	1-5/8		54	190	146	54	17	21	20	106	56.3	21.4	M14	2.42
NAP209-27	1-11/16		54	190	146	54	17	21	20	106	56.3	21.4	M14	2.42
NAP209-28	1-3/4		54	190	146	54	17	21	20	106	56.3	21.4	M14	2.42
NAP210		50	57.2	206	159	60	20	25	21	114	62.7	24.6	M16	2.75
NAP210-30	1-7/8		57.2	206	159	60	20	25	21	114	62.7	24.6	M16	2.75
NAP210-31	1-15/16		57.2	206	159	60	20	25	21	114	62.7	24.6	M16	2.75
NAP210-32	2		57.2	206	159	60	20	25	21	114	62.7	24.6	M16	2.75
NAP211		55	63.5	217	172	60	20	25	23	125	71.4	27.8	M16	3.56
NAP211-32	2		63.5	217	172	60	20	25	23	125	71.4	27.8	M16	3.56
NAP211-34	2-1/8		63.5	217	172	60	20	25	23	125	71.4	27.8	M16	3.56
NAP211-35	2-3/16		63.5	217	172	60	20	25	23	125	71.4	27.8	M16	3.56
NAP212		60	69.9	238	186	70	20	25	24	137	77.8	31	M16	5.2
NAP212-36	2-1/4		69.9	238	186	70	20	25	24	137	77.8	31	M16	5.2
NAP212-38	2-3/8		69.9	238	186	70	20	25	24	137	77.8	31	M16	5.2
NAP212-39	2-7/16		69.9	238	186	70	20	25	24	137	77.8	31	M16	5.2
NAP213		65	76.2	262	203	70	25	30	26	149	85.7	34.3	M20	6.3
NAP213-40	2-1/2		76.2	262	203	70	25	30	26	149	85.7	34.3	M20	6.3
NAP214		70	79.4	266	210	72	25	30	27	155	85.7	34.3	M20	7
NAP214-44	2-3/4		79.4	266	210	72	25	30	27	155	85.7	34.3	M20	7
NAP215		75	82.6	274	217	74	25	30	28	162	92.1	37.3	M20	7.8
NAP215-47	2-15/16		82.6	274	217	74	25	30	28	162	92.1	37.3	M20	7.8
NAP215-48	3		82.6	274	217	74	25	30	28	162	92.1	37.3	M20	7.8

Notes:1.Bearing housing solid base optional,add suffix SB as designation.

2.Grease fittings also available at 90° positions.
