OCR MRZ Passport Scanner Reader ISO14443 RFID E-Passport Machine PPR-100B

PPR-100B Plus Multiple Document Reading and Imaging Capability NFC OCR Passport Reader Scanner in Hotels/ Government.

Product Details

ISO14443 NFC OCR Recognition ROHS Epassport Reader Scanner PPR-100B

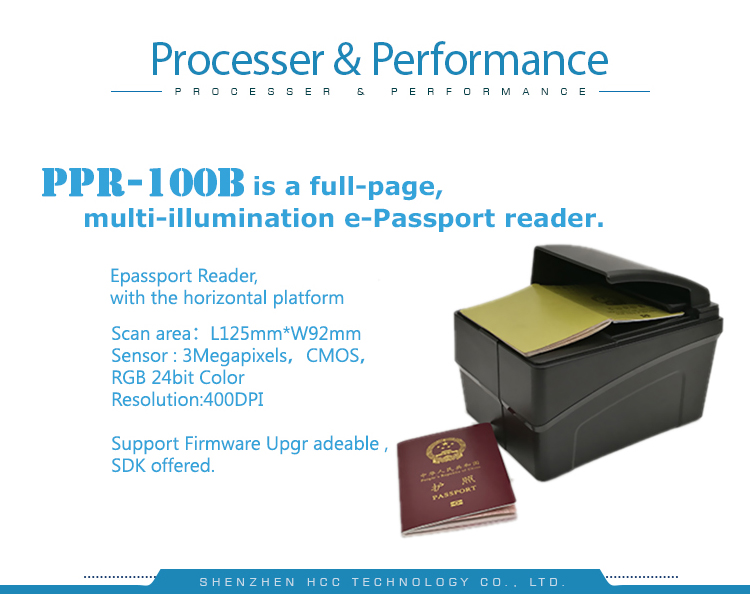

PPR-100B is a full-page, mufti-illumination e-Passport reader. Contactless reader. It provides perfect solutions for scanning passport, e-passport, visa and other Electronic Documents & Paper Documents, ISO14443 TYPE A/B/C & NFC smart card, which make it can be applied to variety of industries.


  • Support the compliance of ICAO9093 standard Part1-4 specification documents and efficient OCR recognition capabilities;
  • High-speed RFID reader, read and write speed <3s (depending on the card);
  • A variety of light sources-visible light, infrared light, ultraviolet light, a variety of light source image acquisition, easy to identify the authenticity of a variety of licenses;
  • Reads 1D/2D barcodes from smart phones, tablets, smart watches and paper-based documents;
  • Easily control: automatically trigger;
  • Support Firmware Up gr addable ,SDK offered.







Specification

Imaging

Scan area:L125mm*W92mm

Sensor:3Megapixels,CMOS,

RGB 24bit Color

Resolution:400DPI

With the horizontal platform

Illuminations

IR 860nm

Visible 430-680nm

UV A 365nm

Indicator

3 status indicator LED s(for Power Ready and Error)

Host

Full speed usb2.0

Power Supply

5V DC DC JK5.5

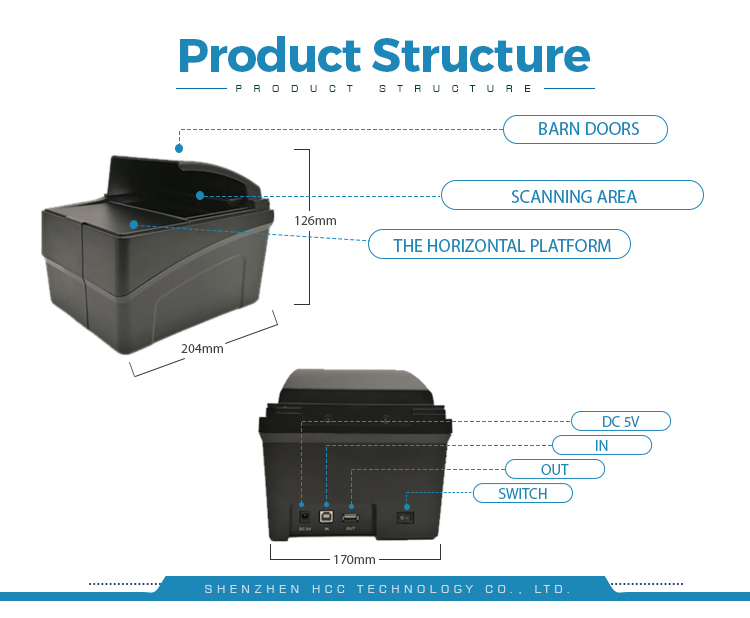

Size (L * W * H)

204*170*126mm

Weight

<1kg

Environmental

Temperature[°C]:0 to 40

Humidity [%]: 20-80 (non- condensing)

Approvals

IP54(Dust  Proof)

WEEE/ROHS

Recommended Computer Configuration

CPU:2 GHz

Memory: 2G DRAM Hard disk:100G

OS: above Windows 7 / Android
