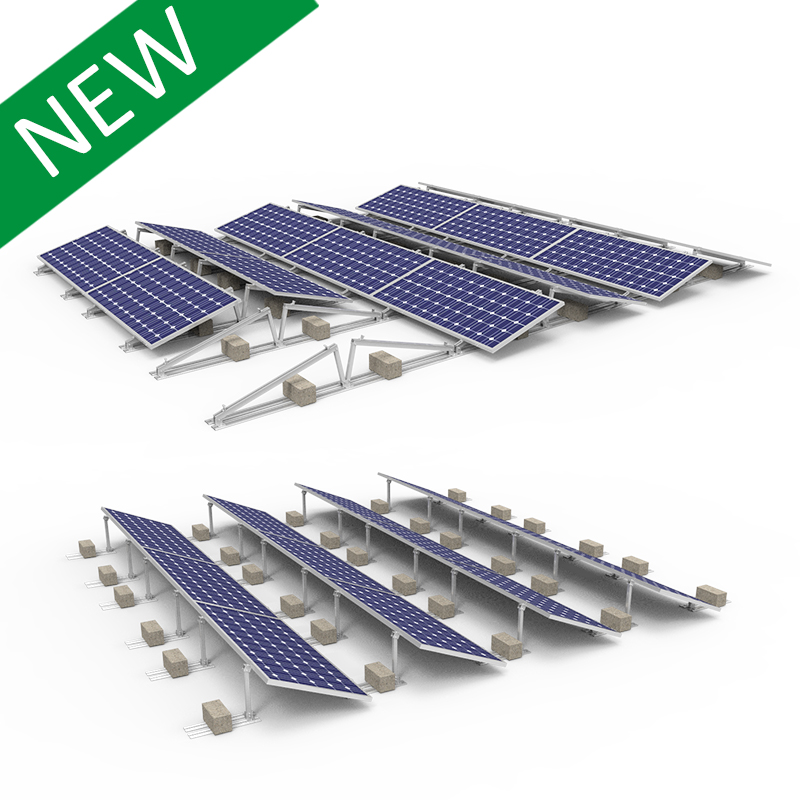

Non-penetrating Ballast Flat Roof Mounting System

CORIGY SOLAR Non-penetrating Ballast Solar Racking is designed for PV mounting on commercial or residential flat-roof. The system is delivered in compact form to save logistics cost, unfold at site saves valuable time. No need to anchor and damage the roof membrance. It utilizes high strength aluminum components and corrosion resistant hard ware for term reliability.

Request A Quote

Product Details

CORIGY SOLAR Ballasted Solar Mounting is applicable to large scale flat roof module installation.It allow solar array to tilt angle 5-30 deg with the roof. The solar racking system can be Pre-assembly a fixed angle for your request and the support is high Pre-assembly, especially, this system highlights the function that it can be both use as ballasted system by adding tray on the bottom tube,and be fixed directly on the concrete block. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high Pre-assembly and make the installation easy and quick to save your labor cost and time.

TECHNICAL INFORMATION

Product Name	CP-NBM Ballasted Mounting System
Mount Location	Flat Roof
Mount Angle	0-60°
Wind Load	60m/s
Snow Load	1.6KN/m2
Applicable Solar Panels	Framed Panels & Frameless Panels
Solar Panel Layout	Horizontal Panel Installation & Vertical Panel Installation
Design Standard	AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
Rack Material	Al6005-T5 (Surface Anodic Oxidation）
Fastener Material	SUS304
Column color	Natural Silver or According to Customer
Warranty Period	10 years
Service Life	25 years

COMPONENT OVERVIEW

CORIGY SOLAR Non-penetrating Ballast Solar Racking is designed for solar mounting on commercial or residential flat-roof.

Non-penetrating Ballast Solar Racking

ADVANTAGE

1. The height of the solar panel from the ground can be customized according to the requirements of customers

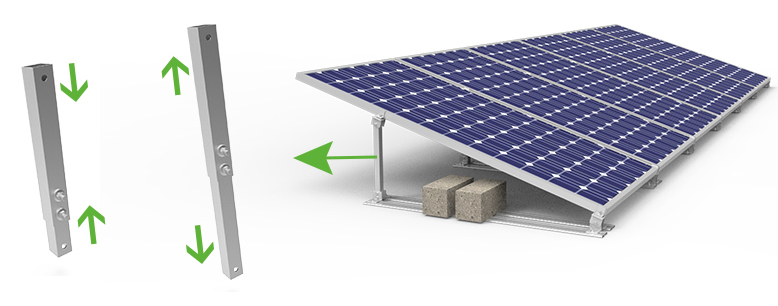

2.Adjustable triangle support

The rear column can choose adjustable types, which can make the solar bracket obtain the ability to adjust the angle, and it come with pre-assembled.

3. The unique design solar mounting components can save a lot of installation time for your flat roof solar racking project, and you can quickly adjust parts during installation.

solar mounting components

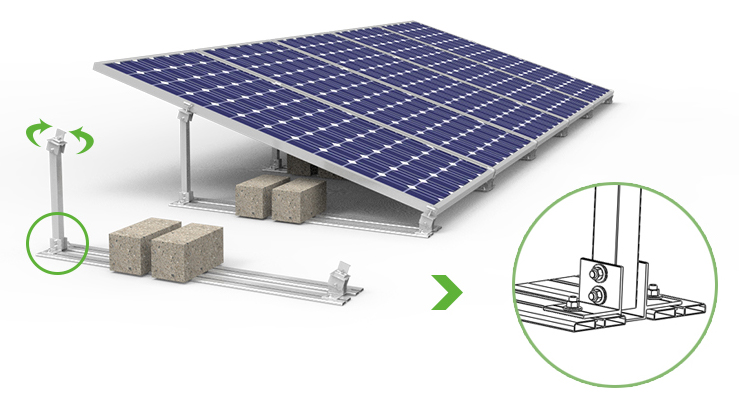

4. The double-bolt design can provide support during rotation adjustment, helping you better install the bracket

solar accessories

5. When the foundation and the roof mounting system are not suitable, the unique design can be adjusted in multiple directions, and the adjustment range is large.

roof mounting system
