A600 is the colour duplex scanner specifically designed for bank tellers: a single device for scanning cheques and A4 documents.
A600 is the colour duplex scanner specifically designed for bank tellers: a single device for scanning cheques and A4 documents.

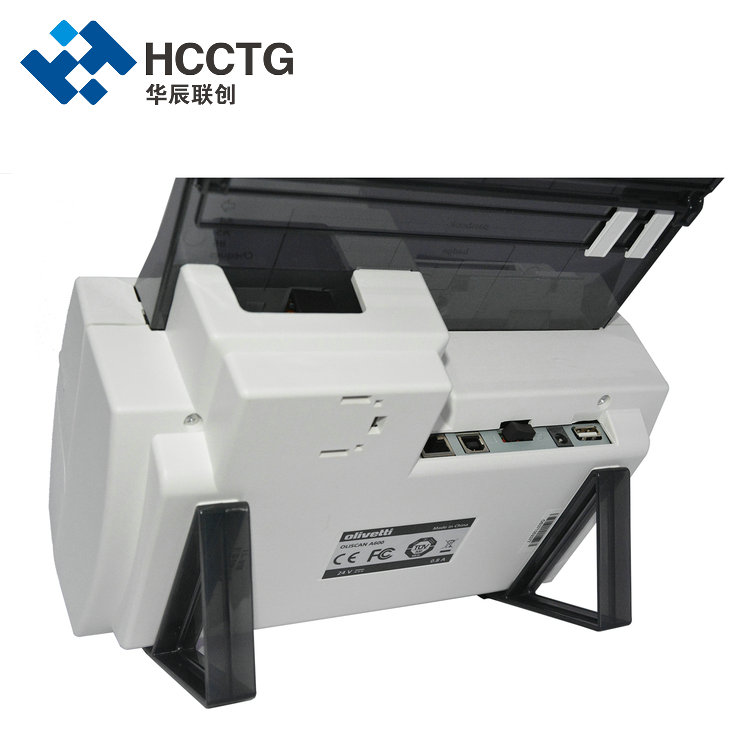

600dpi High Speed Color Duplex A4 Document Scanner With MICR Reader A600
A600 scans all documents (from the A4 format to the credit card format, including identity cards) and it also reads cheque MICR codelines, OCR data and barcode, besides, the device is one of the smallest and quietest scanners in its category, optimizes use of space at the teller counter.
Feature
Specification
|
Technology |
CIS dual camera |
|
Resolution |
600 dpi, 300 dpi, 200 dpi |
|
Colour depth |
B/W,256 level greyscale,24 bit coloer |
|
Document size |
Height:40-216 mm(1.6-8.5’’) Length:65-355 mm(2.56-14’’) Paper documents:thickness 60-120 g/m² Accepts laminated and rigid documents (manual insrtion) up to 1.5 mm thick
|
|
Image format |
Bitmap,JPG, TIFF,TIFF Group 4, PDF by SW processing |
|
Duplex |
Front/back (2 sensors) |
|
Feed |
Automatic, mixed documents holds up to 30 docments |
|
Output tray |
Adjustable,pull-out |
|
Double fees sensor |
Ultrasonic sensor detects double document feed |
|
Dimensions(W*D*H) |
270*190*115 mm(without paper trays) 10.6*7.5*4.5 inches(without paper trays) |
|
Interfaces |
USB 2.0,USB TYPE B LAN(Reserved interface) |
|
Software |
TWAIN driver USB driver(Windows 2000/XP/7/8/10) Software Development Kit Testing tools API SampleCode (VC++, Delphi, VB6, VB,NET) Linux environment |
|
Voltage |
110÷240V/50-60 Hz (autorange) |
|
Power consumption |
30 W max.(scanning) <2.5 W(stand-by) DC OUTPUT:24V 2.5A |
|
Noise level |
<54 dBA (ISO 9296) |
|
Certifications |
CE, C-CSA-US, UL FCC class B RoHS Energy Star 2.0 |
|
Operating conditions |
Temprature:15-32°C Humidity:35%-85% (without condensation) |
|
Options |
|
|
Weight |
~3.5 Kgs (7.7 lbs) |
|
MICR reader |
Supports CMC7,CMC0,E13B |
|
Endorser |
Inkjet, printing on back of document,1 line |
|
Integrated badge reader |
3 tracks(magnetic stripe) |
|
Chip Card Reader |
By extemal device,partially integrated |
|
Infrared lighting |
To verify microholes oresence |
|
UV image |
To verify bank check validity showing UV graphics |
