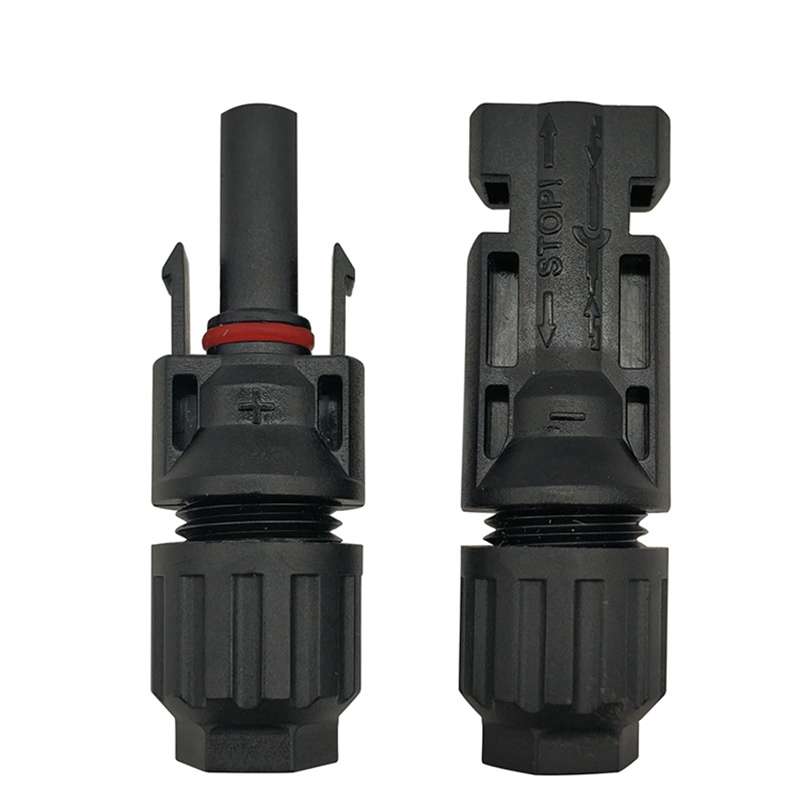

Negative MC4 Connector Positive MC4 Connector 1000V MC4 Connector MC 4 Solar Connector

Photovoltaic connectors are single-contact electrical connectors commonly used for connecting solar panels. The compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.[citation needed] Originally rated for 600 V, newer versions are rated at 1500 V, which allows longer strings to be created.
Product Details

The MC4 System Consists Of A Plug And Socket Design. The Plugs And Sockets Are Inside Plastic Shells That Appear To Be The Opposite Gender - The Plug Is Inside A Cylindrical Shell That Looks Like A Female Connector But Is Referred To As Male, And The Socket Is Inside A Square Probe That Looks Male But Is Electrically Female.



  Drawings Of Solar Connector

  Technical Data For MC4 Solar Connector

Product name   Solar DC Connector
Rated voltage   1000V DC(IEC)
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated

  FAQ

What are solar connectors?

Solar connectors are also called MC4 connectors. They are unipolar electrical connectors. They are used in many aspects of the photovoltaic system, such as junction boxes, combiner boxes, cable connections between components and inverters. Both require MC4 connectors.


 More Photovoltaic Connectors









PV-M01(1000V)
PV-N01(1500V)
PV-M02(1000V)
PV-M04-2(1000V)
PV-N04(1500V)
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
