Brand Name :
JNGEApplication :
Off grid solar system/ Electric car battery chargerCharge mode :
MPPTBattery Sytem Voltage :
48v 62v 70v SettablePV max. input voltage :
50vPV max. input current :
15ampPV max. power :
18v at 250w , 36 at 500w

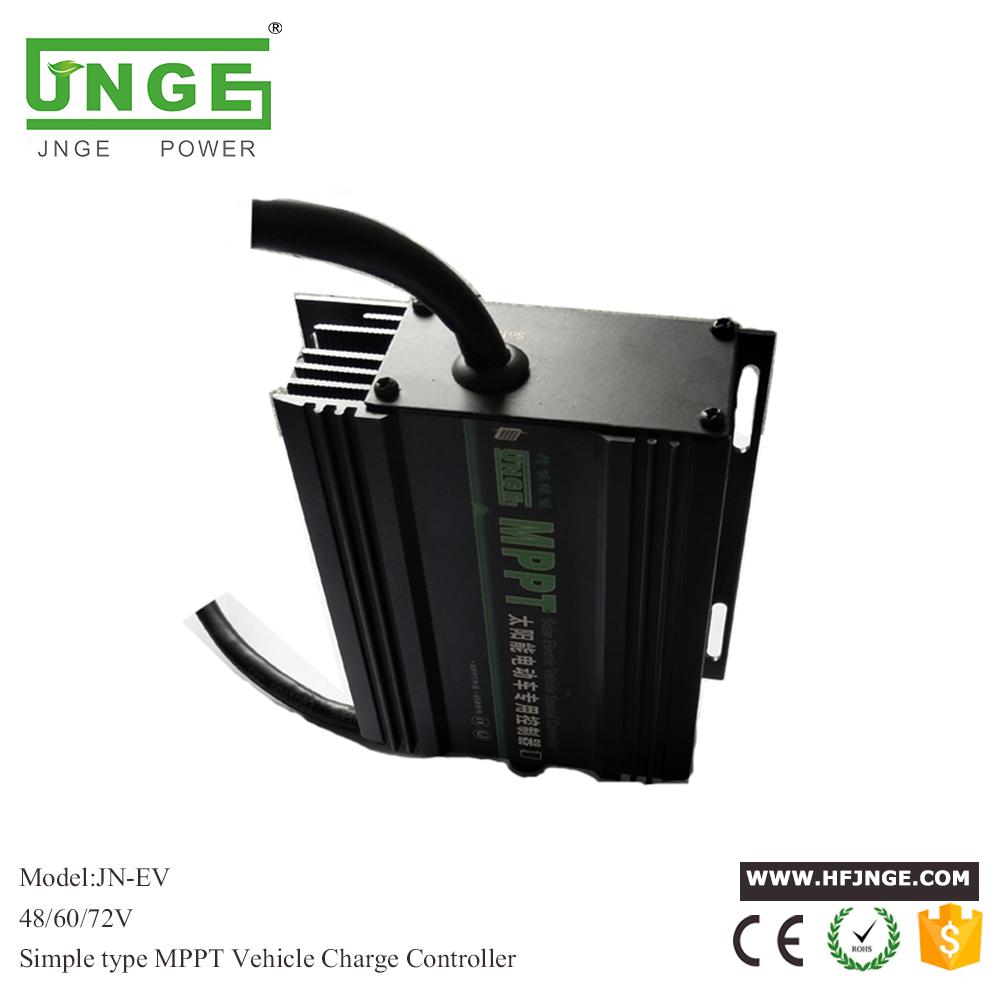

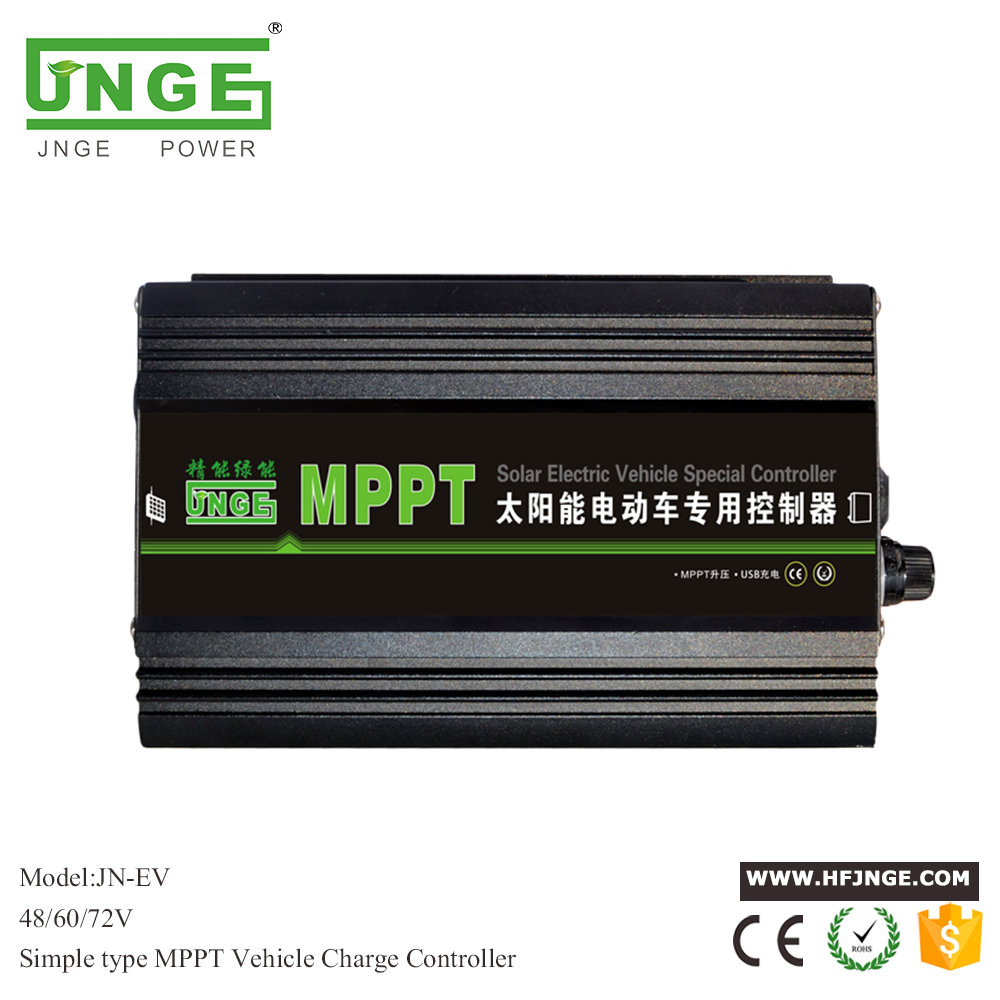

Economical Type MPPT Solar Electric Vehicle Special Controller
Product Advantages:
1.High performance booster MPPT charging ways.
2. The
system uses solar panel power supply, reduce the power consumption of the battery.
3. The LED status indicator.
4. Digital tube current-time display charging current, battery voltage, and solar energy input voltage,
running status be clear at a glance.
5.Complete over-charge, anti-recoil, anti-reverse, and short circuit protection.
6. One-click set battery voltage grade (48V, 60V, 72V three battery voltage grade easy one-click settings).
7. System USES a fool type design, easy to use, safe and reliable.
Technical parameters
|
PV open circuit voltage |
16V～50V |
|
MPPT Voltage range |
16V～45V |
|
MPPT efficiency |
≥99% |
|
Efficiency |
≥95% |
|
No-load loss |
< 5mA |
|
Solar input power |
18V200W、36V400W |
|
Communication distance |
≥5m |
|
Battery |
48Vor 60Vor 72V(One-click set) |
|
Over-voltage protection |
48V-58V，60V-72V,72V-87V |
|
12VDC power |
6W |
|
USB charge power |
5W |
|
system reset |
One-click reset |
|
Anti-reverse protection |
When the battery positive and negative reverse connection, the fuse will fuse, the user to replace 10A, φ5×20 glass tube fuse. |
|
Working temperature |
-25℃ - +65℃； |
|
Weight |
0.5Kg |
|
Size |
115×111×43(mm) |
