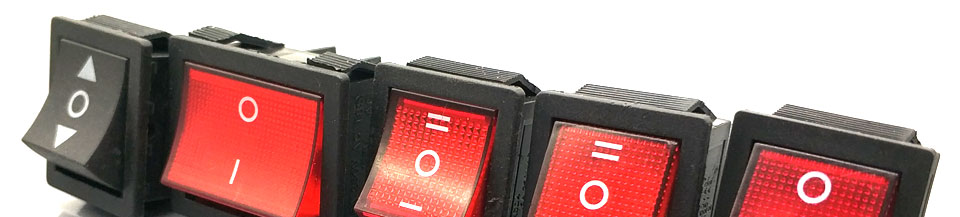

Olink offers a variety of illuminated and non-illuminated, and also snap-in installation rocker switches. The rocker switch has 2 to 6 poles, and there are a variety of colors, functions.
Olink offers a variety of illuminated and non-illuminated, and also snap-in installation rocker switches. The rocker switch has 2 to 6 poles, and there are a variety of colors, functions.
Momentary on off on rocker switch with arrow

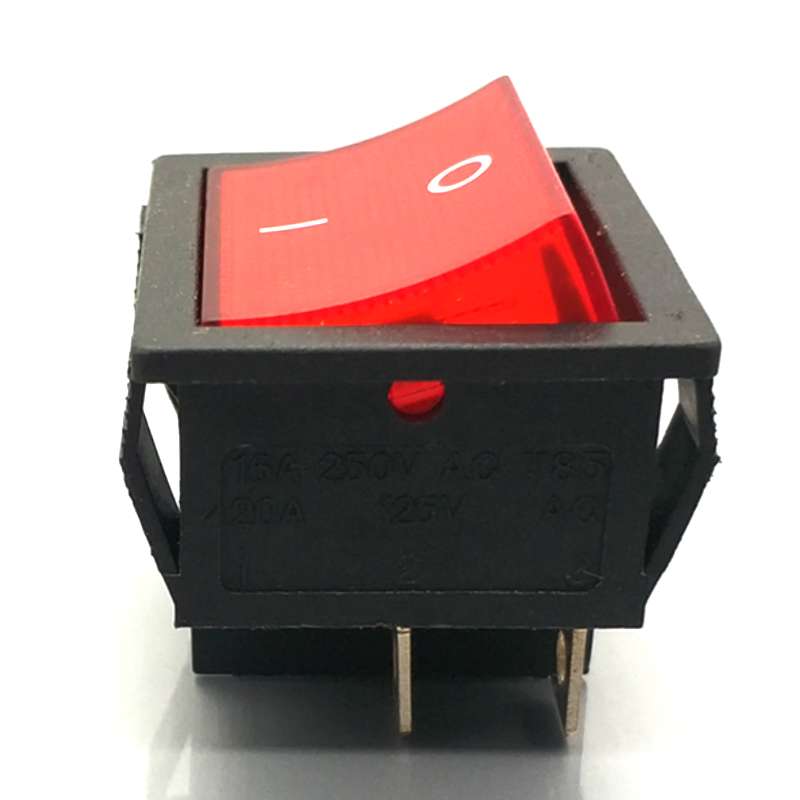

Description of Rocker switch 16a 250vac
Specification of Rocker switch 16a 250vac
Product name: | Momentary rocker switch | Model: | KCD4 series |
Panel mount diameter: | 27.8 x 21.7 mm | Function: | on-off, on-off-on, on-on |
Rating: | 16A 250V AC/20A 125V AC | Rated load: | 2/8A 250V AC |
Solder terminal: | PTI 175 | Ambient temperature: | T85 |
Endurance: | 10000 cycles | Contact resistance: | ≤ 50mΩ |
Dielectric intensity: | ≥ 1500V AC/min | Withstand voltage: | 1500V AC/min |
Insulation resistance: | ≥ 100MΩ | Frequency: | 50HZ |

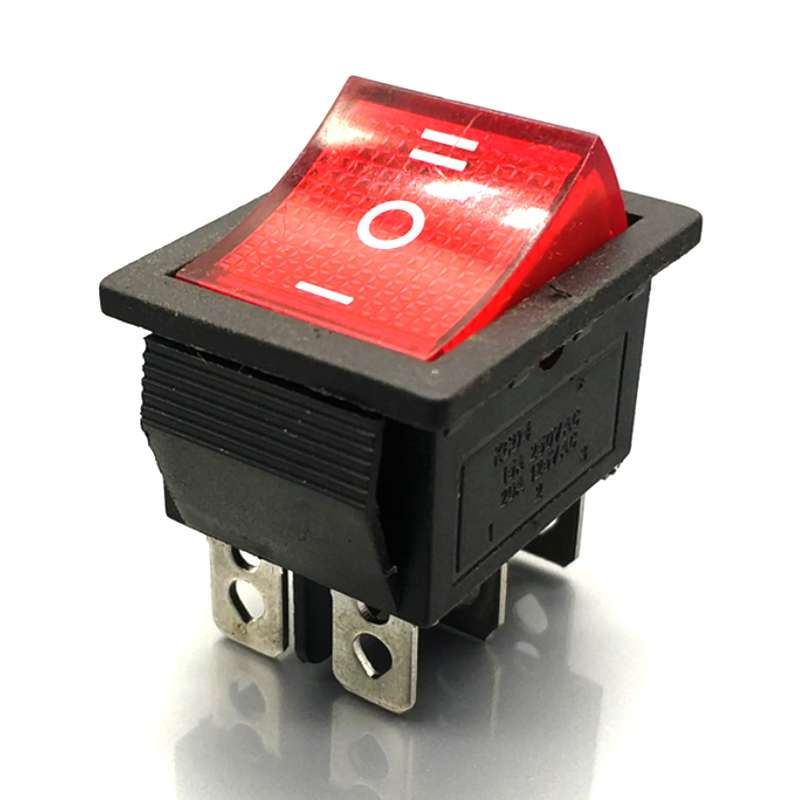

Feature of Kcd4 rocker switch
There are more rocker switches to choose from
