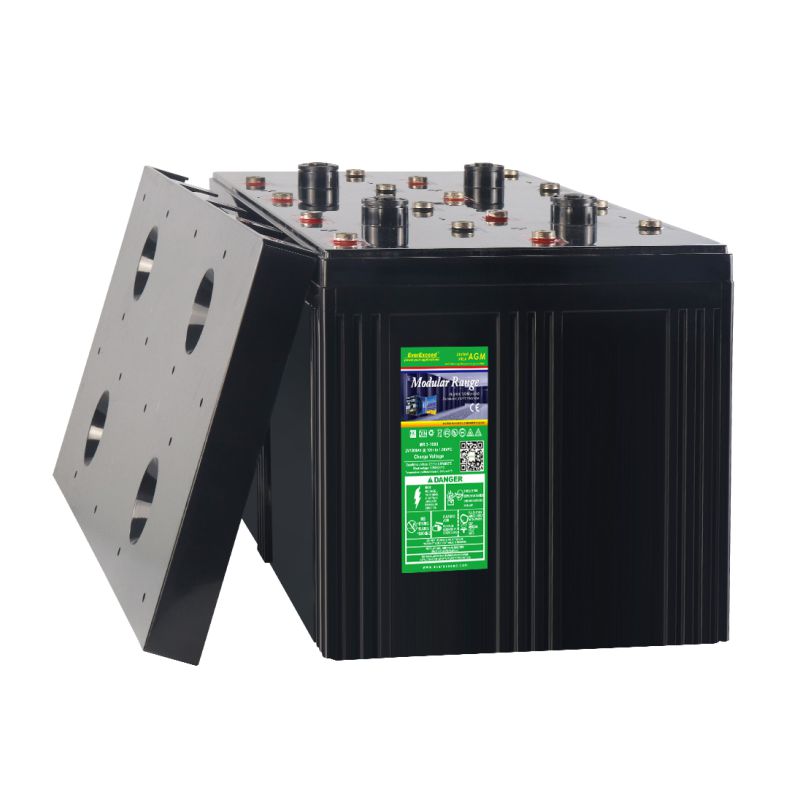

EverExceed Modular Range Valve Regulated Lead Acid (V.R.L.A.) batteries are designed for the long standby back-up power requirements of wireless/PCS telecommunications, MTSO's, central offices, utilities, switchgear and control applications. EverExceed advanced AGM absorbed electrolyte technology ensures reliable performance, safety, outstanding battery life and value.
Usage :
Telecommunications;Emergency Lighting;Navigation Aids;UPS system;Switchgear/Substation;Cellular RadioControl Systems;Standby Power Supply;Photovoltaic/Solar;Power PlantCertificates :
UL1989; IEC61427;IEC60896; CEOEM/ODM Service :
Yes, customizedRated capacity(Ah) :
50-3000AhModel :
MR SeriesRated voltage(V) :
2V
Technical Features:
|
|
|
|
|
|
 |
|
 |
|
 |
|
Superior cycle performance |
|
Unique performance |
|
VRLA recombinant technology |
|
Thick plate design for extra long cycle life. Nano-carbon enhanced active material to maximize cycle performance and PSoC operation |
|
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
|
|
High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency. |
|
|
|
|
|
|
 |
|
 |
|
 |
|
Wide operating temperature range |
|
Ultra long backup time |
|
Long service life |
|
-40°C to +70°C Storage time from a fully charged condition: 12 months at 20°C ~25°C ; for each 9°C rise, reduce the storage time by half. |
|
Fully tank formed plates design which is perfectly suitable for long standby backup power requirements. |
|
Thick positive plate design for maximum service float life- 20 years design life @ 20°C(68°F). |
|
|
|
|
|
|
 |
|
 |
|
 |
|
Assured quality
|
|
Maintenece free |
|
Low self-discharge rate |
|
These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427 |
|
No maintenance required, never needs addition of water. |
|
Less than 3% per month |
 |
• Plates: calcium / high tin lead alloy, optimized for high corrosion resistance and long deep cycle life. • Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation of the positive and negative plates• Standard Housing:Reinforced ABS (UL 94HB) container and cover. • Optional Housing:Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%. • Terminals:Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.• Valves: Release gas in case of excess pressure and protects the cell against atmosphere.
|
|
Applications: |
• Telecommunications；• Emergency Lighting；• Navigation Aids；• UPS system；
• Switchgear/Substation；• Cellular Radio； • Control Systems； • Standby Power Supply；• Photovoltaic/Solar；• Power Plant
